Каталог запасных частей к технике: Doosan P222LE. Driving System
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
15
16
17
17
18
19
20
21
22
23
23
24
24
25
25
26
26
27
28
28
28
29
30
31

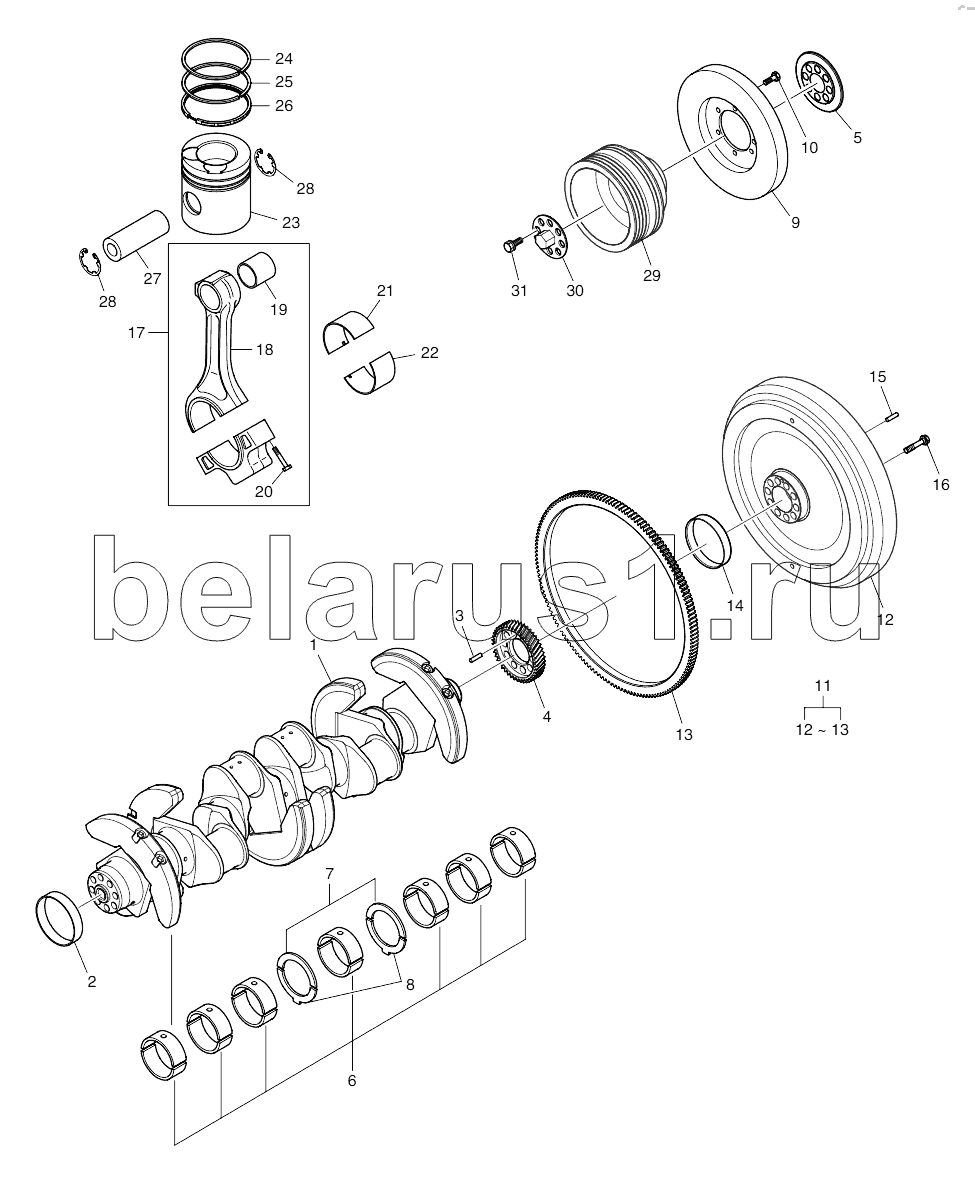

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 65.02101-7112 | Crank shaft assy | |
| 2 | 65.02130-0001 | Ring | |
| 3 | 06.22022-3065 | Pin | |
| 4 | 65.02115-0066 | Gear | |
| 5 | 65.01505-0007 | Ring | |
| 6 | 65.01110-6529 | Bearing | |
| 7 | 65.01150-0058A | Washer | |
| 8 | 65.01150-0059A | Washer | |
| 9 | 65.02201-7032 | Damper | |
| 10 | 65.90020-0062B | Bolt | |
| 11 | 65.02301-5014C | Flywheel assy | |
| 12 | 65.02301-0303E | Flywheel | |
| 13 | 65.02310-0073D | Gear | |
| 14 | 65.02130-0002 | Ring | |
| 15 | 65.91303-0005 | Pin | |
| 16 | 65.90020-0127 | Bolt | |
| 17 | 65.02401-6019 | Connecting rod assy | |
| 17 | 65.02401-6020 | Connecting rod assy | |
| 18 | 65.02401-0012 | Rod | |
| 19 | 65.02405-1008 | Bush | |
| 20 | 65.02411-0008 | Bolt | |
| 21 | 65.02410-0100 | Bearing | |
| 22 | 65.02410-0200 | Bearing | |
| 23 | 65.02501-0704 | Piston | |
| 23 | 65.02501-0708 | Piston | |
| 24 | 65.02503-0130 | Ring | |
| 24 | 65.02503-0672 | Ring | |
| 25 | 65.02503-0131 | Ring | |
| 25 | 65.02503-0108 | Ring | |
| 26 | 65.02503-0678 | Ring | |
| 26 | 65.02503-0701 | Ring | |
| 27 | 65.02502-0081 | Pin | |
| 28 | 65.90810-0011 | Ring | |
| 28 | 65.90815-0022A | Ring | |
| 29 | 65.02601-0226 | Pulley | |
| 30 | 65.99710-5003 | Plate | |
| 31 | 06.02106-0824 | Bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
