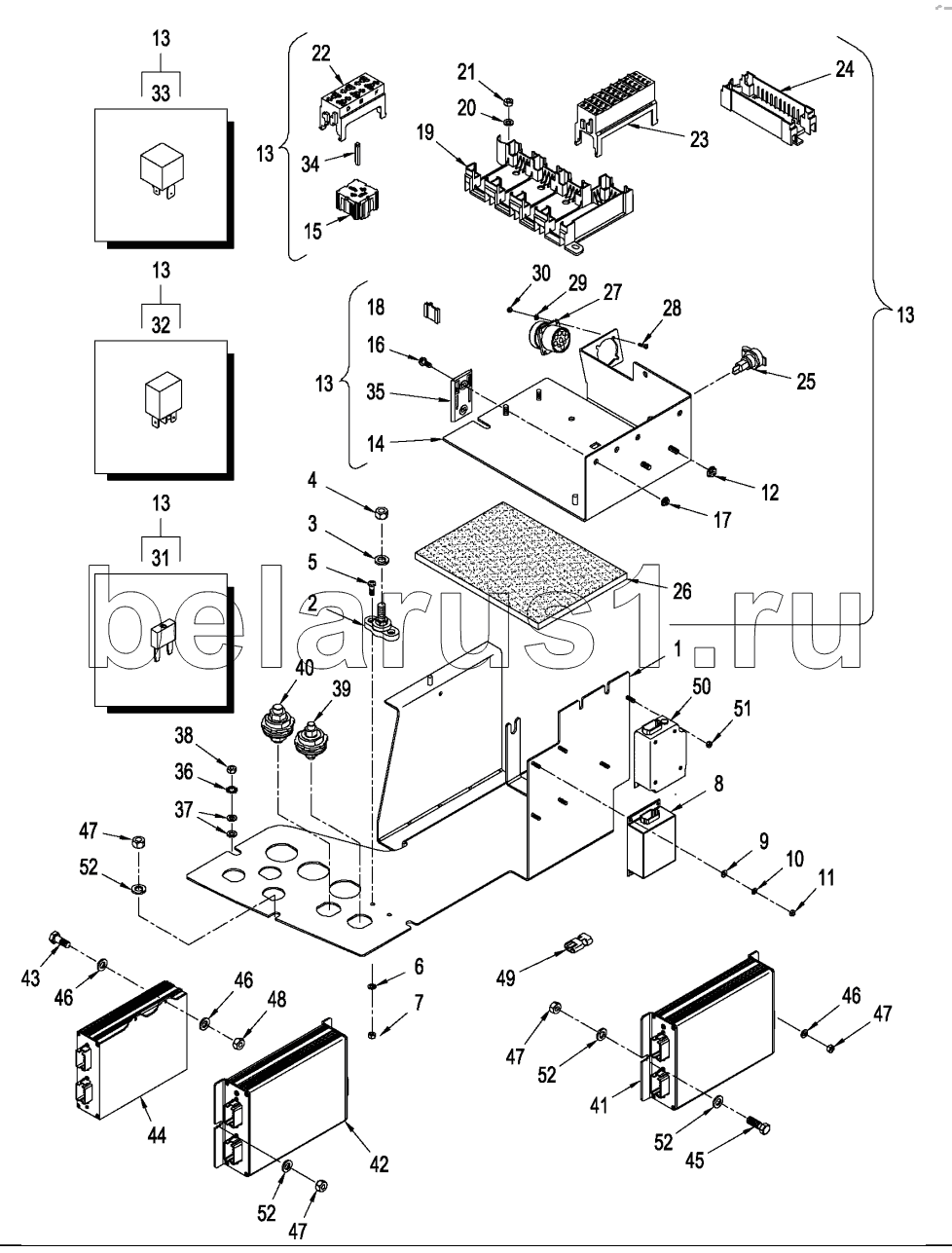

Каталог запасных частей к технике: CASE IH 430 Steiger 4WD. ELECTRONIC MODULE ASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
12
13
13
13
13
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
46
46
47
47
47
47
48
49
50
51
52
52
52
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 87416914 | BRACKET | |
| 2 | 20-1451T1 | BLOCK | |
| 3 | 892-11010 | WASHER | |
| 4 | 425-106 | NUT | |
| 5 | 840-1516 | SCREW | |
| 6 | 895-11005 | WASHER | |
| 7 | 824-1405 | NUT | |
| 8 | 397346A1 | FLASHER UNIT | |
| 9 | 895-11004 | WASHER | |
| 10 | 892-11004 | WASHER | |
| 11 | 824-1404 | NUT | |
| 11 | 832-10404 | NUT | |
| 12 | 825-5146 | NUT | |
| 13 | 87601586 | MODULE | |
| 13 | 87366658 | MODULE | |
| 13 | 87601587 | MODULE | |
| 13 | 87366657 | MODULE | |
| 14 | 87416914 | BRACKET | |
| 14 | NSS | NOT SERVICED SEPARATELY | |
| 15 | 367145A1 | BLOCK | |
| 16 | 841-4512 | SCREW | |
| 17 | 825-5145 | NUT | |
| 18 | 430116A1 | LOCK | |
| 19 | 191135A1 | BASE | |
| 20 | 895-11006 | WASHER | |
| 21 | 829-1406 | NUT | |
| 22 | 144417A1 | BLOCK | |
| 23 | 144421A1 | BLOCK | |
| 24 | 194319A1 | TERMINAL | |
| 25 | 300655A1 | SOCKET | |
| 26 | 349062A1 | PAD | |
| 27 | 310057A1 | CONNECTOR | |
| 28 | 840-1312 | SCREW | |
| 29 | 895-11003 | WASHER | |
| 30 | 824-1403 | NUT | |
| 31 | 368224A1 | DIODE | |
| 31 | 121410A1 | FUSE | |
| 31 | 121411A1 | FUSE | |
| 31 | 121412A1 | FUSE | |
| 31 | 121413A1 | FUSE | |
| 31 | 121414A1 | FUSE | |
| 31 | 121415A1 | FUSE | |
| 31 | 121416A1 | FUSE | |
| 32 | 87414866 | RELAY | |
| 33 | 368459A1 | RELAY | |
| 34 | 367146A1 | WEDGE | |
| 35 | 367147A1 | BRACKET | |
| 36 | 893-11010 | WASHER | |
| 37 | 895-11010 | WASHER | |
| 38 | 829-1410 | NUT | |
| 39 | 190158A1 | BLOCK | |
| 39 | A187523 | BLOCK | |
| 40 | 311430A1 | BLOCK | |
| 41 | 87354994 | CONTROL UNIT | |
| 42 | 399302A3 | CONSOLE | |
| 43 | 840-1616 | SCREW | |
| 44 | 87357267 | MODULE | |
| 44 | 87709243 | MODULE | |
| 45 | 627-8016 | BOLT | |
| 45 | 627-8016 | BOLT | |
| 46 | 895-11005 | WASHER | |
| 47 | 829-1408 | NUT | |
| 48 | 832-10405 | NUT | |
| 49 | 87537124 | CONNECTOR | |
| 50 | 86989612 | MODULE | |
| 51 | 832-10406 | NUT | |
| 52 | 895-11008 | WASHER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
