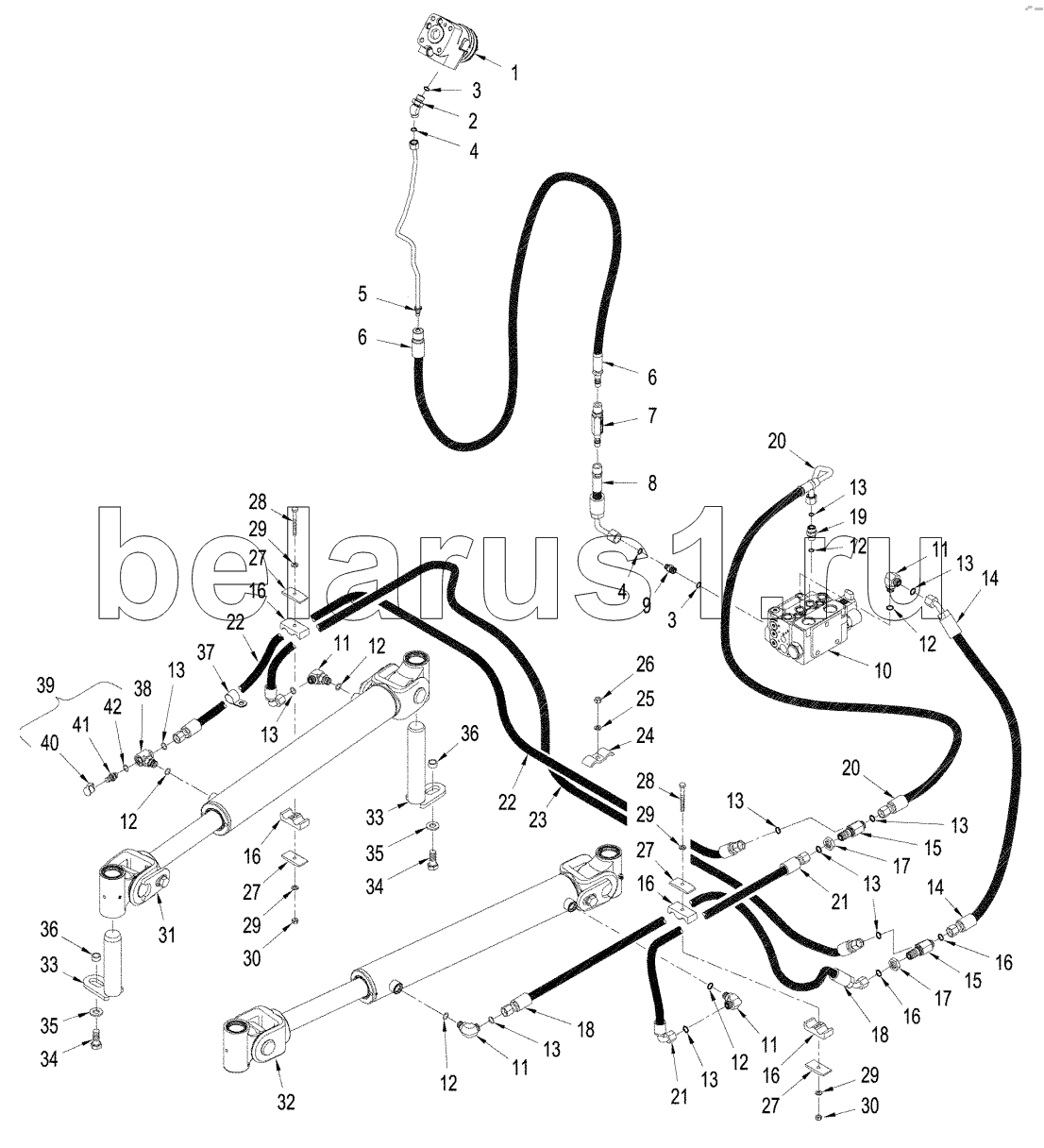

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 87426127 | STEERING HYDRAULIC | |
| 2 | 700-446 | ELBOW | |
| 3 | 637-64236 | O-RING | |
| 4 | 238-6012 | O-RING | |
| 5 | 87312091 | TUBE | |
| 6 | 87347199 | HOSE | |
| 7 | 87452749 | SWITCH | |
| 8 | 87347197 | HOSE | |
| 9 | 700-106 | CONNECTOR | |
| 10 | 87436468 | VALVE | |
| 10 | 87585898 | VALVE | |
| 11 | 700-305 | ELBOW | |
| 12 | 637-63153 | O-RING | |
| 13 | 238-6014 | O-RING | |
| 14 | 87439175 | HOSE ASSY | |
| 15 | 701-423 | TEE | |
| 16 | 50-2551T1 | CLAMP | |
| 17 | 701-903 | NUT | |
| 18 | 87439172 | HOSE ASSY | |
| 19 | 700-102 | CONNECTOR | |
| 20 | 87304379 | HOSE ASSY | |
| 21 | 367244A1 | HOSE | |
| 22 | 367243A1 | HOSE ASSY | |
| 23 | 87312871 | HOSE | |
| 24 | 242563A1 | CLAMP | |
| 25 | 892-11012 | WASHER | |
| 26 | 829-1412 | NUT | |
| 27 | 50-2533T1 | PLATE | |
| 28 | 827-8070 | BOLT | |
| 29 | 895-11008 | WASHER | |
| 30 | 832-10408 | NUT | |
| 31 | 87529571 | CYLINDER STEERING | |
| 31 | 87552147 | CYLINDER STEERING | |
| 32 | 406999A1 | CYLINDER STEERING | |
| 33 | 70-6085T2 | PIN | |
| 34 | 627-16040 | BOLT | |
| 35 | 496-21066 | WASHER | |
| 36 | 70-5967T1 | SPACER | |
| 37 | 515-23206 | CLAMP | |
| 38 | 364967A1 | TEE | |
| 39 | 178889A1 | FITTING | |
| 40 | H434163 | DUST CAP | |
| 41 | NSS | NOT SERVICED SEPARATELY | |
| 42 | 637-63113 | O-RING |
