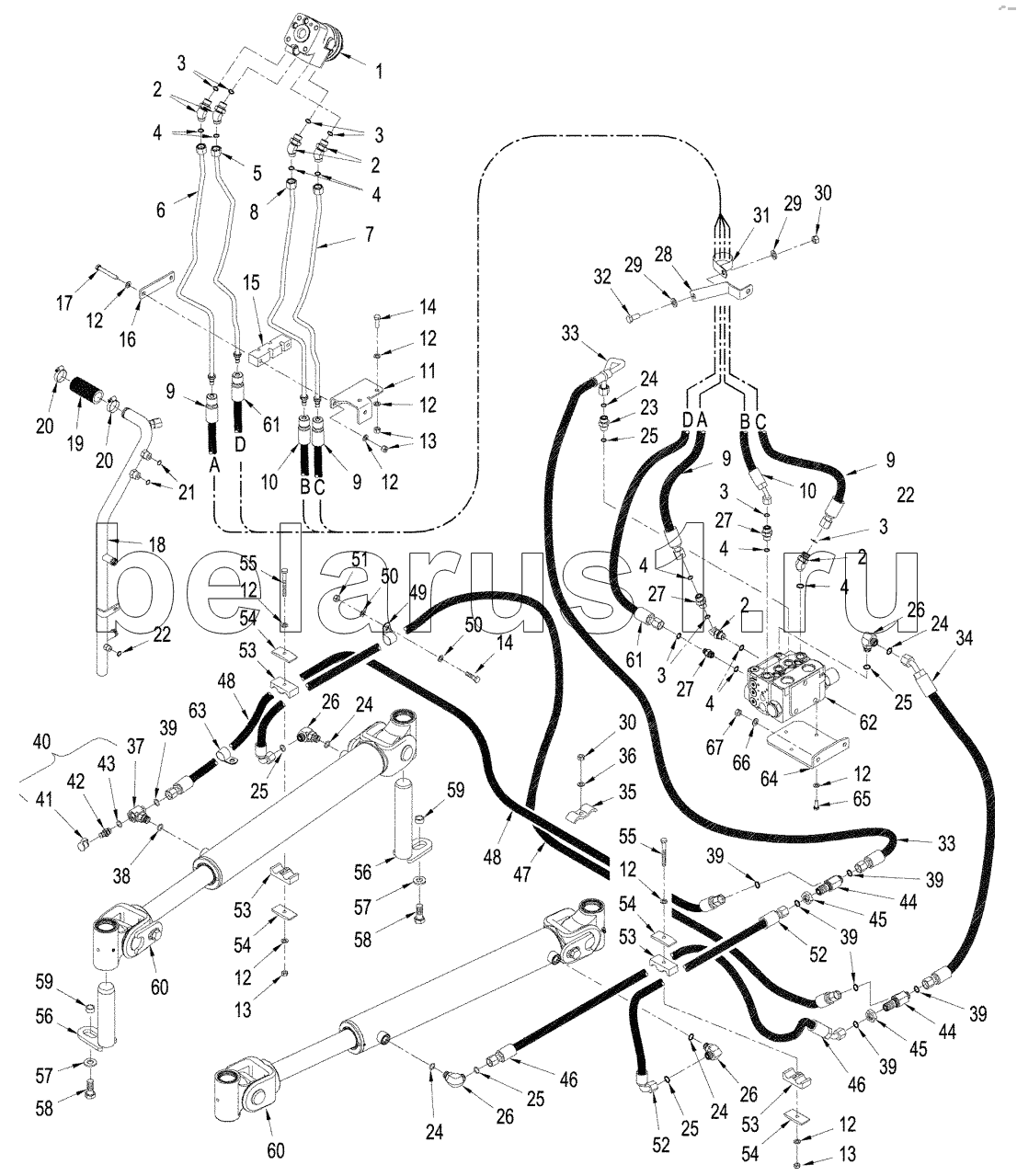

Каталог запасных частей к технике: CASE IH STX-530 Steiger. HYDRAULICS - STEERING
1
2
2
2
2
3
3
3
3
3
4
4
4
4
4
4
5
6
7
8
9
9
9
9
10
10
11
12
12
12
12
12
12
12
12
12
13
13
13
14
14
15
16
17
18
19
20
20
21
22
22
23
24
24
24
24
24
25
25
25
25
25
26
26
26
26
27
27
27
28
29
29
30
30
31
32
33
33
34
35
36
37
38
39
39
39
39
39
39
40
41
42
43
44
44
45
45
46
46
47
48
48
49
50
50
51
52
52
53
53
53
53
54
54
54
54
55
55
56
56
57
57
58
58
59
59
60
60
61
61
62
62
63
64
64
65
65
66
67
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 87426127 | STEERING HYDRAULIC | |
| 2 | 700-446 | ELBOW | |
| 3 | 637-64236 | O-RING | |
| 4 | 238-6012 | O-RING | |
| 5 | 87312091 | TUBE | |
| 6 | 87312093 | TUBE | |
| 7 | 87312089 | TUBE | |
| 8 | 87312087 | TUBE | |
| 9 | 87312095 | HOSE | |
| 10 | 87312096 | HOSE | |
| 11 | 87347856 | BRACKET | |
| 12 | 895-11008 | WASHER | |
| 13 | 832-10408 | NUT | |
| 14 | 627-8025 | BOLT | |
| 15 | 87403324 | BRACKET | |
| 16 | 87436024 | MOUNTING PARTS | |
| 17 | 827-8060 | BOLT | |
| 18 | 87439775 | TUBE ASSY | |
| 19 | 1-4571 | HOSE | |
| 20 | 214-1436 | CLAMP | |
| 21 | 238-6016 | O-RING | |
| 22 | 238-6014 | O-RING | |
| 23 | 700-102 | CONNECTOR | |
| 24 | 637-63153 | O-RING | |
| 25 | 238-6014 | O-RING | |
| 26 | 700-305 | ELBOW | |
| 27 | 700-106 | CONNECTOR | |
| 28 | 87304378 | BRACKET | |
| 29 | 896-11012 | WASHER | |
| 30 | 829-1412 | NUT | |
| 31 | 515-25508 | CLAMP | |
| 32 | 627-12025 | BOLT | |
| 33 | 87304379 | HOSE ASSY | |
| 34 | 87439175 | HOSE ASSY | |
| 35 | 242563A1 | CLAMP | |
| 36 | 892-11012 | WASHER | |
| 37 | 364967A1 | TEE | |
| 38 | 637-63153 | O-RING | |
| 39 | 238-6014 | O-RING | |
| 40 | 178889A1 | FITTING | |
| 41 | H434163 | DUST CAP | |
| 42 | NSS | NOT SERVICED SEPARATELY | |
| 43 | 637-63113 | O-RING | |
| 44 | 701-423 | TEE | |
| 45 | 701-903 | NUT | |
| 46 | 87439172 | HOSE ASSY | |
| 47 | 87312871 | HOSE | |
| 48 | 367243A1 | HOSE ASSY | |
| 49 | 515-23286 | CLAMP | |
| 50 | 895-15008 | WASHER | |
| 51 | 829-1408 | NUT | |
| 52 | 367244A1 | HOSE | |
| 53 | 50-2551T1 | CLAMP | |
| 54 | 50-2533T1 | PLATE | |
| 55 | 827-8070 | BOLT | |
| 56 | 70-6085T2 | PIN | |
| 57 | 496-21066 | WASHER | |
| 58 | 627-16040 | BOLT | |
| 59 | 70-5967T1 | SPACER | |
| 60 | 406999A1 | CYLINDER STEERING | |
| 61 | 87312097 | HOSE | |
| 62 | 87585897 | VALVE | |
| 62 | 87442925 | VALVE | |
| 63 | 515-23206 | CLAMP | |
| 64 | 87438129 | BRACKET | |
| 64 | 87550230 | BRACKET | |
| 65 | 627-8020 | BOLT | |
| 65 | 627-8016 | BOLT | |
| 66 | 895-11010 | WASHER | |
| 67 | 829-1410 | NUT |
