Каталог запасных частей к технике: KRONE BIG-M-400. Engine guards
/92.gif)
1
1
2
2
3
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
5
6
6
7
7
8
9
10
11
12
13
13
13
13
13
13
14
14
15
16
17
18
18
19
19
20
20
20
21
21
21
22
22
22
23
24
25
26
26
27
28
29
29
30
31
32
33
34

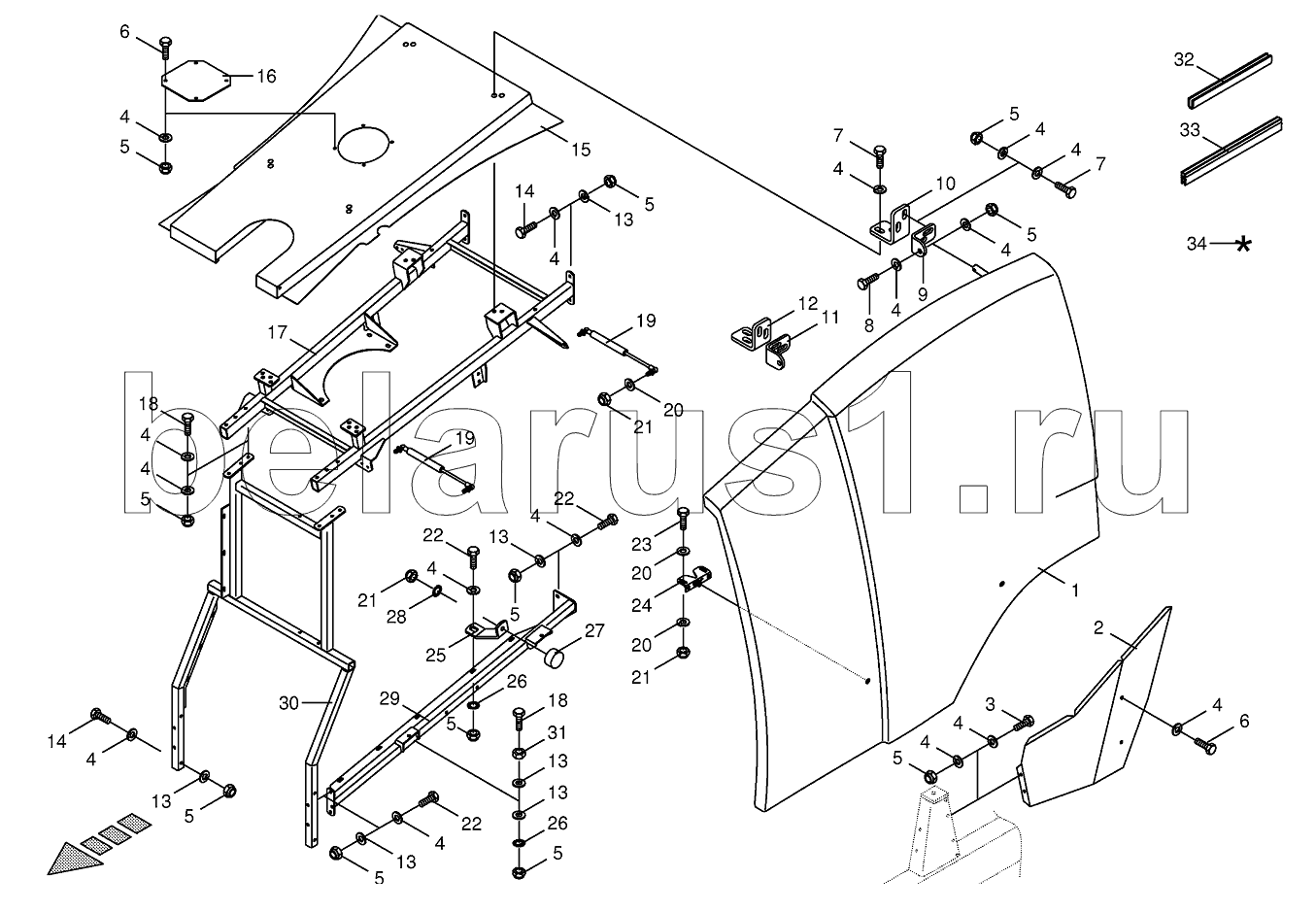

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 200109940 | Engine guard-left | |
| 1 | 200109930 | Engine guard-right | |
| 2 | 200105010 | Engine guard-left | |
| 2 | 200105020 | Engine guard-right | |
| 3 | 009006370 | Hex head bolt | |
| 4 | 009104140 | Washer | |
| 5 | 009087580 | Locknut | |
| 6 | 009006340 | Hex head bolt | |
| 7 | 009006380 | Hex head bolt | |
| 8 | 009002841 | Hex head bolt | |
| 9 | 002330271 | Supporting angle | |
| 10 | 002329061 | Angle | |
| 11 | 200126640 | Supporting angle | |
| 12 | 002329051 | Angle | |
| 13 | 009103530 | Washer | |
| 14 | 009014370 | Hex head bolt | |
| 15 | 200104280 | Motor roof | |
| 16 | 002332760 | Sealing cap | |
| 17 | 200104480 | Motor roof clamp | |
| 18 | 009014391 | Hex head bolt | |
| 19 | 009400200 | Gas spring | |
| 20 | 009104130 | Washer | |
| 21 | 009087060 | Locknut | |
| 22 | 009014360 | Hex head bolt | |
| 23 | 009006140 | Hex head bolt | |
| 24 | 009389841 | Gate lock | |
| 25 | 200101170 | Support | |
| 26 | 009099091 | Detent edged washer | |
| 27 | 009242270 | Rubber pad | |
| 28 | 009099081 | Detent edged washer | |
| 29 | 200104311 | Locking mechanism-left | |
| 29 | 200105031 | Locking mechanism-right | |
| 30 | 200116850 | Frame | |
| 31 | 009082120 | Hex nut | |
| 32 | 009251110 | Edge protection-Id.-no.= 1m | |
| 33 | 009386951 | Rubber profile-Id.-no.= 1m | |
| 34 | 009403750 | Repairing set for plastics- beige |
