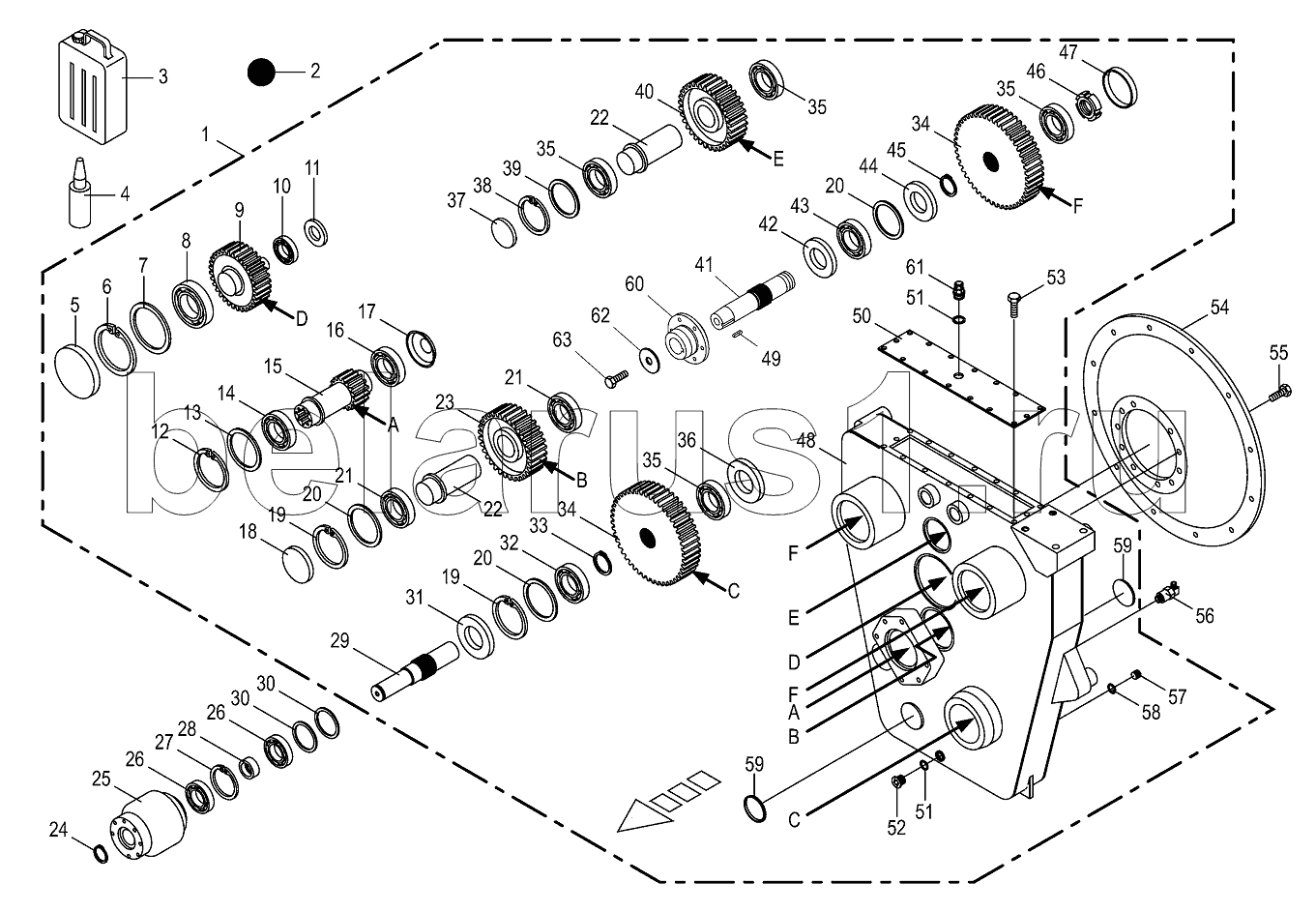

Каталог запасных частей к технике: KRONE BIG-M-420. Auxiliary gearbox
/88.gif)
1
2
3
4
5
6
7
8
9
10
11
12
13
13
13
14
15
16
17
18
19
19
20
20
20
20
20
20
21
21
22
22
23
24
25
26
26
27
28
29
30
30
31
32
33
34
34
35
35
35
35
36
37
38
39
39
39
40
41
42
43
44
45
46
47
48
49
50
51
51
52
53
54
55
56
57
58
59
59
60
61
62
63
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 270010570 | 270010570 | Lip seal | |
| 270164580 | 270164580 | Outer body KMK 50 S/T | |
| 900022670 | 900022670 | Allen screw | |
| 270109360 | 270109360 | Outer discs | |
| 270109370 | 270109370 | Internal discs | |
| 270112080 | 270112080 | Gasket set hyd. blade coup. KMK50 | |
| 1 | 270145100 | Transfer gearbox without flange/coupling | |
| 2 | 270084060 | Oil-Id.-no.= 1ltr | |
| 3 | 270084900 | Oil-Id.-no.= 20ltr | |
| 4 | 009402270 | Universal-sealant-silicone-free | |
| 5 | 009556420 | Sealing cap | |
| 6 | 009116090 | Circlip | |
| 7 | 009109181 | Shim ring | |
| 8 | 009303520 | Grooved ball bearing | |
| 9 | 009556330 | Spur wheel shaft | |
| 10 | 009323080 | Roller bearing | |
| 11 | 900000740 | Radial-shaft sealing ring | |
| 12 | 009116940 | Circlip | |
| 13 | 900004810 | Shim ring | |
| 13 | 900004830 | Shim ring | |
| 13 | 900004820 | Shim ring | |
| 14 | 009321600 | Taper roller bearing | |
| 15 | 270053340 | Spur wheel shaft | |
| 16 | 009321110 | Taper roller bearing | |
| 17 | 900003220 | Nilos-ring | |
| 18 | 900012590 | Sealing cap | |
| 19 | 009116860 | Circlip | |
| 20 | 900004330 | Shim ring | |
| 20 | 009111650 | Shim ring | |
| 20 | 009111660 | Shim ring | |
| 20 | 009111680 | Shim ring | |
| 21 | 009321380 | Taper roller bearing | |
| 22 | 009556390 | Axle | |
| 23 | 270053350 | Spur gear | |
| 24 | 009115450 | Circlip | |
| 25 | 270020490 | Multi-disk clutch | |
| 26 | 009303260 | Grооvеd bаll bеаring | |
| 27 | 009116730 | Circlip | |
| 28 | 003311924 | Spacer tube | |
| 29 | 009556370 | Shaft | |
| 30 | 009376060 | O-ring | |
| 31 | 009360760 | Radial-shaft sealing ring | |
| 32 | 009321100 | Taper roller bearing | |
| 33 | 009115571 | Circlip | |
| 34 | 009556360 | Spur gear | |
| 35 | 009321080 | Tap. roll. bearing | |
| 36 | 900000800 | Radial-shaft sealing ring | |
| 37 | 900005800 | Sealing cap | |
| 38 | 009116760 | Circlip | |
| 39 | 009109190 | Shim ring | |
| 39 | 009108540 | Shim ring | |
| 39 | 009108550 | Shim ring | |
| 40 | 009556340 | Spur gear | |
| 41 | 270163000 | shaft | |
| 42 | 900029270 | Radial-WDR | |
| 43 | 009321660 | Taper roller bearing | |
| 44 | 900022740 | Radial-shaft sealing ring | |
| 45 | 009115571 | Circlip | |
| 46 | 009095540 | Slotted nut | |
| 47 | 009556440 | Sealing cap | |
| 48 | 270062790 | Gearbox housing | |
| 49 | 900029280 | KEYWAY | |
| 50 | 009556311 | Gear cover | |
| 51 | 009377511 | Gasket ring | |
| 52 | 009060050 | Screw plug | |
| 53 | 009006120 | Hex head bolt | |
| 54 | 270066290 | Motor flange | |
| 55 | 009006580 | Hex head bolt | |
| 56 | 002327910 | Oil supply | |
| 57 | 009060060 | Screw plug | |
| 58 | 009377010 | Gasket ring | |
| 59 | 900014470 | Sealing cap | |
| 60 | 270163010 | flange | |
| 61 | 270015480 | Breather | |
| 62 | 270163020 | Schelbe | |
| 63 | 009011321 | Hex head bolt |
