Каталог запасных частей к технике: KRONE BIG-M-I. Multifunction lever
1
2
3
4
5
6
7
8
9
10
12
13
14
14
17
18
19
20
21
25
25
25
25
25
25
25
25
26
27
28
28
29
31
32
33
34
35
38
40
41
42
43
44
45
45
45
45
46
46
46
46
47
48
50

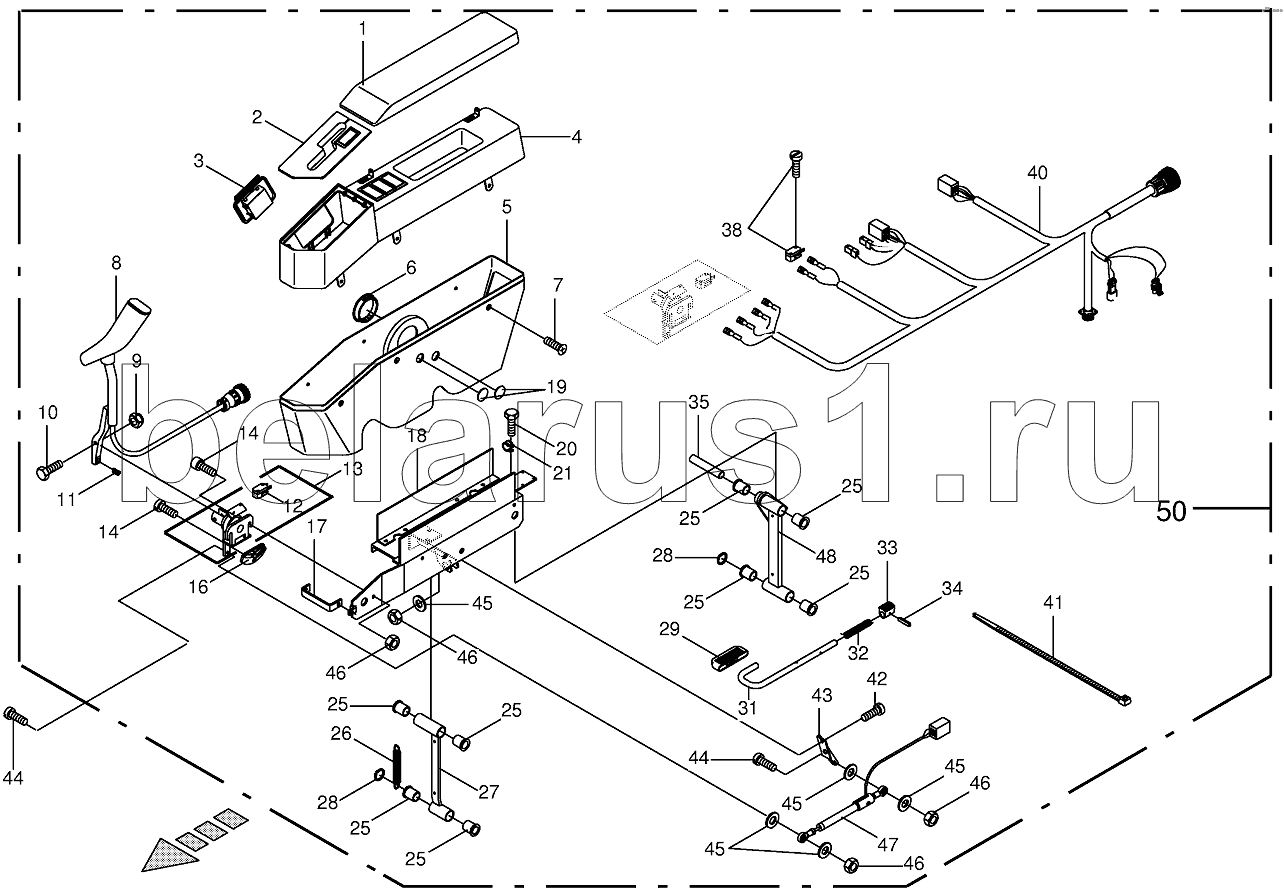

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 002202900 | Cushion covering | |
| 2 | 002202910 | Limit stop | |
| 3 | 002202920 | Ash-tray | |
| 4 | 002202930 | Elbow rest top part | |
| 5 | 002202940 | Elbow rest lower part | |
| 6 | 002202950 | Cover cap | |
| 7 | 002202960 | Groove bolt | |
| 8 | 002202970 | Function lever | |
| 9 | 009082080 | Hex nut | |
| 10 | 009006070 | Hex head bolt | |
| 12 | 003050470 | Micro switch | |
| 13 | 002202980 | Shifting mechanism-cpl. | |
| 14 | 009030431 | Allen screw | |
| 17 | 002202990 | U profile | |
| 18 | 002203000 | Elbow rest support | |
| 19 | 002203010 | Plastic cover | |
| 20 | 009008080 | Hex head bolt | |
| 21 | Tubeclamp | Tube clamp | |
| 25 | 002203020 | Bushing | |
| 26 | 002203030 | Tension spring | |
| 27 | 002203040 | Rocker-front | |
| 28 | 009099101 | Detent edged washer | |
| 29 | 002203050 | Handle | |
| 31 | 002203060 | Lever | |
| 32 | 002203070 | Spiral spring-right | |
| 33 | 002203080 | Lock | |
| 34 | Rollpin | Roll pin | |
| 35 | 002203090 | Pin | |
| 36 | Allenscrew | Allen screw | |
| 37 | Switch | Switch | |
| 38 | 002203100 | Switch | |
| 40 | 002203110 | Wiring harness | |
| 41 | 009226711 | Cable band | |
| 42 | 009037471 | Allen screw | |
| 43 | 002307590 | Support | |
| 44 | 009037471 | Allen screw | |
| 45 | 009105001 | Washer | |
| 46 | 009087020 | Locknut | |
| 47 | 003022720 | Position sensor | |
| 48 | 002203130 | Rocker-back | |
| 50 | 003022550 | Armrest-right |
