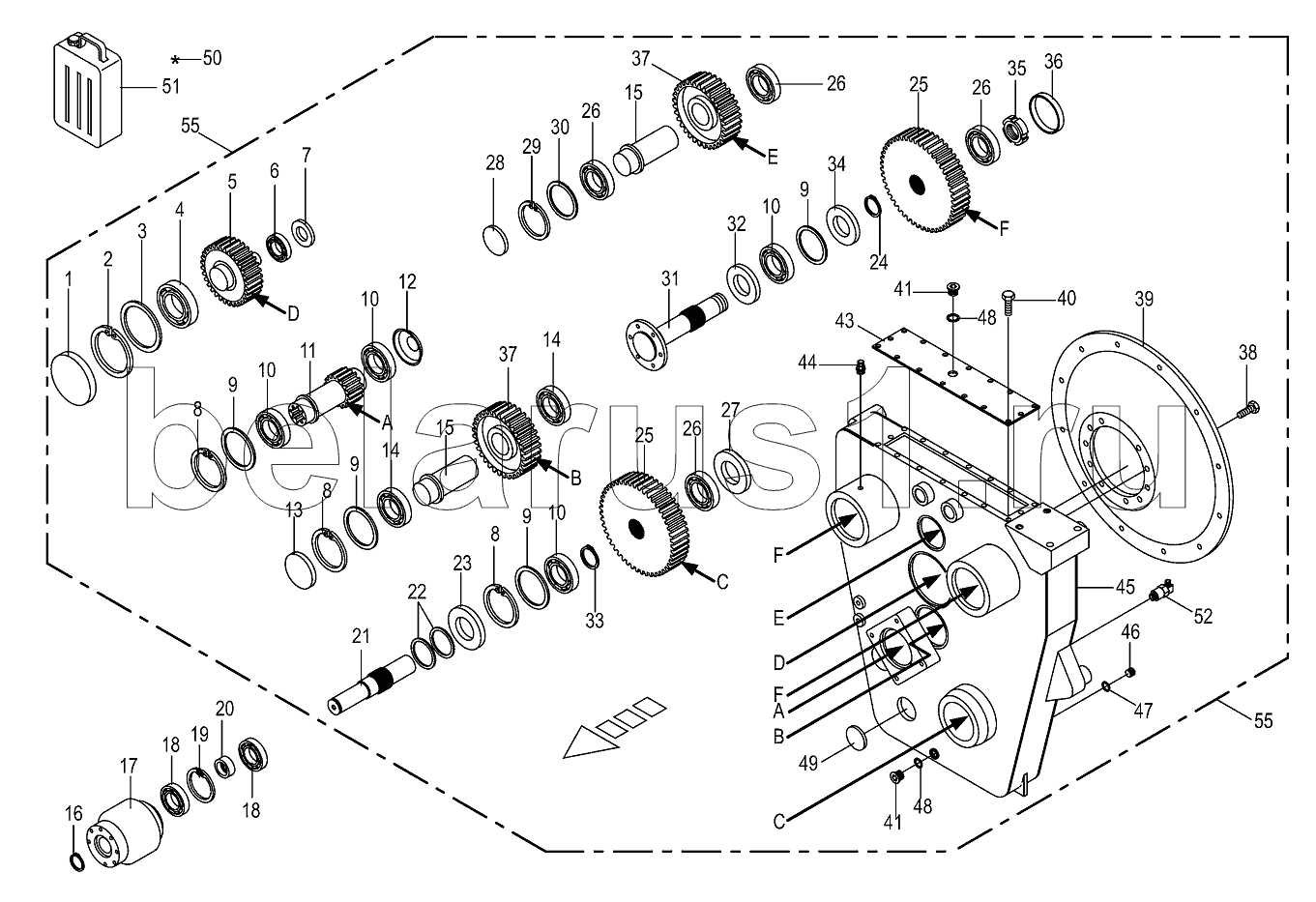

Каталог запасных частей к технике: KRONE BIG-M-II. Central gearbox cpl.
1
2
3
4
5
6
7
8
8
8
9
9
9
9
9
9
10
10
10
10
11
12
13
14
14
15
15
16
17
18
18
19
20
21
22
23
24
25
25
26
26
26
26
27
28
29
30
30
30
31
32
33
34
35
36
37
37
38
39
40
41
41
43
44
45
46
47
48
48
49
50
51
52
55
55
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 009260240 | 009260240 | Oil-Id.-no.= 1ltr | |
| 270010570 | 270010570 | Lip seal | |
| 270112070 | 270112070 | Gasket set hyd. blade coup.KMK50 | |
| 1 | 009556420 | Sealing cap | |
| 2 | 009116090 | Circlip | |
| 3 | 009109181 | Shim ring | |
| 4 | 009303520 | Grooved ball bearing | |
| 5 | 009556330 | Spur wheel shaft | |
| 6 | 009323080 | Roller bearing | |
| 7 | 900000740 | Radial-shaft sealing ring | |
| 8 | 009116860 | Circlip | |
| 9 | 009111650 | Shim ring | |
| 9 | 009111660 | Shim ring | |
| 9 | 009111680 | Shim ring | |
| 10 | 009321100 | Taper roller bearing | |
| 11 | 009556350 | Spur wheel shaft | |
| 12 | 009370280 | Nilos-ring | |
| 13 | 009252081 | Sealing cap | |
| 14 | 009321380 | Taper roller bearing | |
| 15 | 009556390 | Axle | |
| 16 | 009115450 | Circlip | |
| 17 | 002329901 | Multi-plate clutch | |
| 18 | 009303260 | Grооvеd bаll bеаring | |
| 19 | 009116730 | Circlip | |
| 20 | 003311924 | Spacer tube | |
| 21 | 009556370 | Shaft | |
| 22 | 009376060 | O-ring | |
| 23 | 009360760 | Radial-shaft sealing ring | |
| 24 | 009115491 | Circlip | |
| 25 | 009556360 | Spur gear | |
| 26 | 009321080 | Tap. roll. bearing | |
| 27 | 900000800 | Radial-shaft sealing ring | |
| 28 | 900005800 | Sealing cap | |
| 29 | 009116760 | Circlip | |
| 30 | 009109190 | Shim ring | |
| 30 | 009108540 | Shim ring | |
| 30 | 009108550 | Shim ring | |
| 31 | 009556381 | Flange shaft | |
| 32 | 900025680 | Radial shaft seal | |
| 33 | 009115571 | Circlip | |
| 34 | 009556430 | Dust cap | |
| 35 | 009095540 | Slotted nut | |
| 36 | 009556440 | Sealing cap | |
| 37 | 009556340 | Spur gear | |
| 38 | 009006580 | Hex head bolt | |
| 39 | 009556321 | Motor flange | |
| 40 | 009006120 | Hex head bolt | |
| 41 | 009060050 | Screw plug | |
| 43 | 009556310 | Gearbox cover | |
| 44 | 009198160 | Breather | |
| 45 | 009556300 | Gearbox housing | |
| 46 | 009060060 | Screw plug | |
| 47 | 009377010 | Gasket ring | |
| 48 | 009377511 | Gasket ring | |
| 49 | 009556410 | Cap | |
| 50 | 009402270 | Universal-sealant-silicone-free | |
| 51 | 009260280 | Oil-Id.-no.= 5ltr | |
| 52 | 002327910 | Oil supply | |
| 55 | 002333730 | Auxiliary gearbox |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
