Каталог запасных частей к технике: KRONE BIG-M-II. Radiator guards
1
2
2
3
4
4
4
4
4
4
4
5
5
5
5
6
6
7
8
8
8
8
8
8
9
9
9
9
9
9
9
9
9
9
10
11
11
12
12
12
13
14
14
15
15
16
17
18
18
19
20
20
20
20
20
20
20
20
21
22
23
24
25
26
27
27
28
28
29
29
30
31
32
33
34

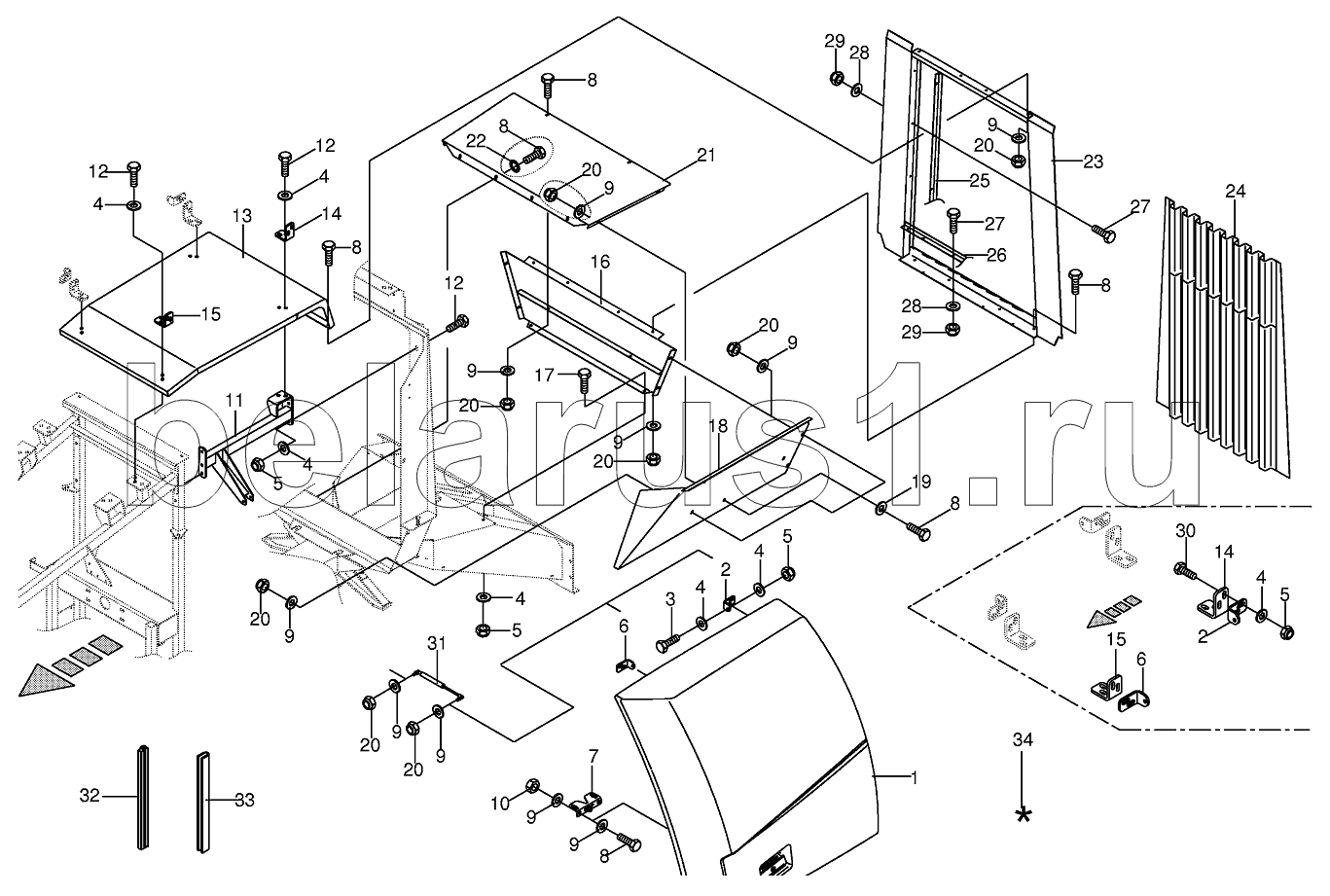

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 002319970 | 002319970 | Radiator protection flap-right | |
| 1 | 002319960 | Radiator protection flap-left | |
| 2 | 002330271 | Supporting angle | |
| 3 | 009002841 | Hex head bolt | |
| 4 | 009104140 | Washer | |
| 5 | 009087580 | Locknut | |
| 6 | 002329071 | Supporting angle | |
| 7 | 009389841 | Gate lock | |
| 8 | 009006140 | Hex head bolt | |
| 9 | 009104130 | Washer | |
| 10 | 009082100 | Hex nut | |
| 11 | 002318721 | Support-left | |
| 11 | 002327181 | Support-right | |
| 12 | 009006360 | Hex head bolt | |
| 13 | 002317471 | Radiator roof | |
| 14 | 002329061 | Angle | |
| 15 | 002329051 | Angle | |
| 16 | 002317501 | Guard plate-back | |
| 17 | 009006340 | Hex head bolt | |
| 18 | 002317531 | Guard-left | |
| 18 | 002317541 | Guard-right | |
| 19 | 009106030 | Washer | |
| 20 | 009087060 | Locknut | |
| 21 | 002317551 | Cover plate | |
| 22 | 009099081 | Detent edged washer | |
| 23 | 002317651 | Protecting frame | |
| 24 | 002316882 | Perforated plate-back | |
| 25 | 002317441 | Tensioning angle | |
| 26 | 002317621 | Tensioning angle-below | |
| 27 | 009006080 | Hex head bolt | |
| 28 | 009104111 | Washer | |
| 29 | 009087041 | Locknut | |
| 30 | 009006370 | Hex head bolt | |
| 31 | 009401930 | Gas spring | |
| 32 | 009386941 | Rubber profile-Id.-no.= 1m | |
| 33 | 009251110 | Edge protection-Id.-no.= 1m | |
| 34 | 009403750 | Repairing set for plastics- beige |
