Каталог запасных частей к технике: KRONE BIG-X-1100. Air pressure-Feeder 783000-793000
1
1
2
2
3
3
4
4
4
4
4
5
5
6
7
8
8
9
9
10
10
10
10
11
12
13
14
15
16
17
18
19
19
20
21
22
22
23
24
25
26
27
27
28
29
30
31
32
33
34
35
36

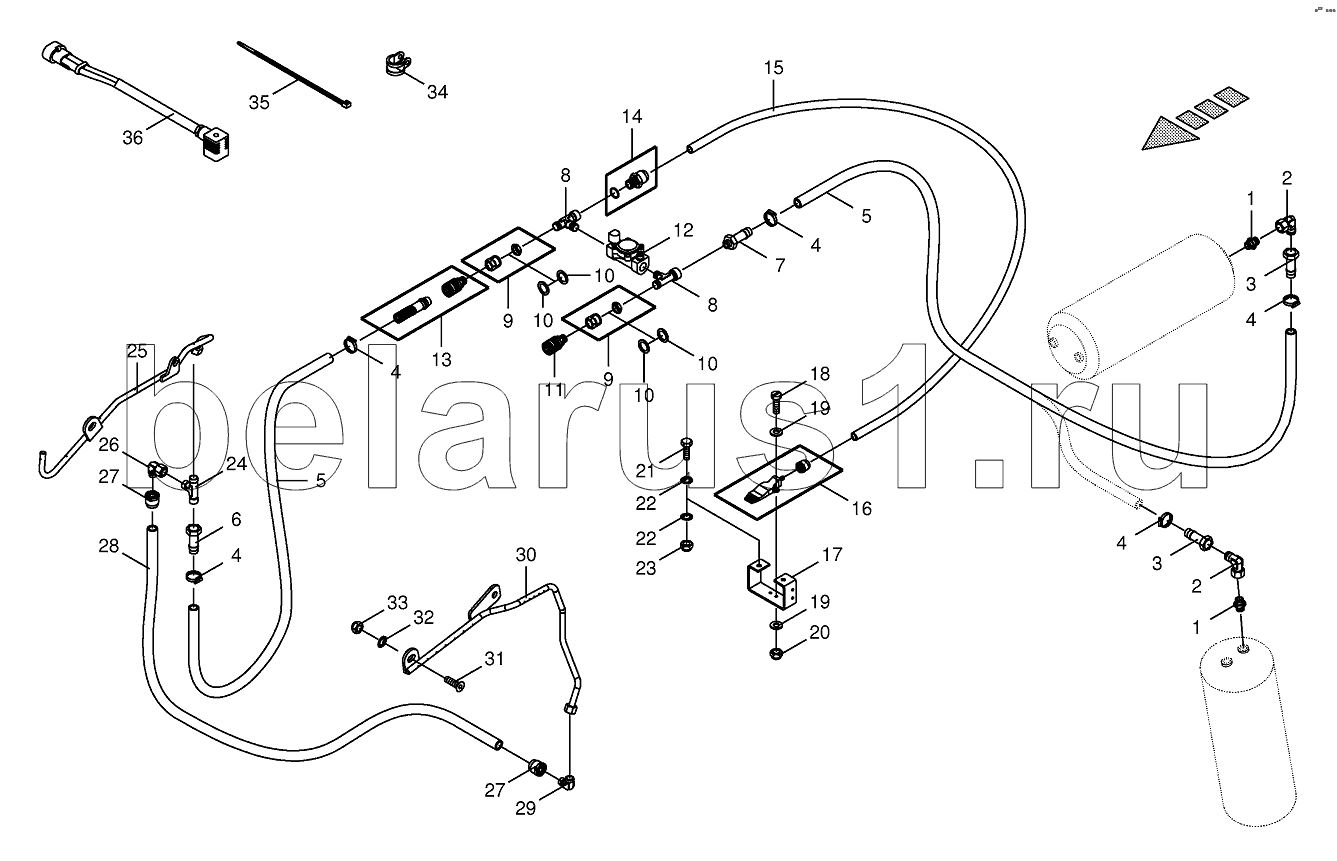

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 009209111 | Male connector | |
| 2 | 009210651 | Angle lug | |
| 3 | 009453490 | Hose connector | |
| 4 | 009450860 | Hose clamp | |
| 5 | 009450850 | Hose-Id.-no.= 1m | |
| 6 | 009450900 | Hose connector | |
| 7 | 270040860 | Hose connector | |
| 8 | 900005420 | L-screw connection | |
| 9 | 900005430 | Sleeve bulkhead | |
| 10 | 009107190 | Supporting disc | |
| 11 | 270040290 | Clutch w. external screw threa | |
| 12 | 009454380 | 2/2-Directional-control valve | |
| 13 | 270040300 | Clutch w. external screw threa | |
| 14 | 270040610 | Straight screw-in connection | |
| 15 | 009402141 | Plastic tubing-Id.-no.= 1m | |
| 16 | 270040600 | Flat stream nozzle | |
| 17 | 200247390 | Support | |
| 18 | 009037471 | Allen screw | |
| 19 | 009105001 | Washer | |
| 20 | 009087020 | Locknut | |
| 21 | 009006160 | Hex head bolt | |
| 22 | 009099081 | Detent edged washer | |
| 23 | 009087060 | Locknut | |
| 24 | 009210711 | T connector | |
| 25 | 200247490 | Cleaning line | |
| 26 | 009210671 | Angle lug | |
| 27 | 009454950 | Snap-on connection | |
| 28 | 009451320 | Plastic tube-Id.-no.= 1m | |
| 29 | 009210661 | Elbow union | |
| 30 | 200247441 | Cleaning line | |
| 31 | 009040161 | Countersunkscrew | |
| 32 | 009099101 | Detent edged washer | |
| 33 | 009087010 | Locknut | |
| 34 | 009240141 | Tube clip w. rubber | |
| 35 | 009226711 | Cable band | |
| 36 | 200808150 | Wiring harness |
