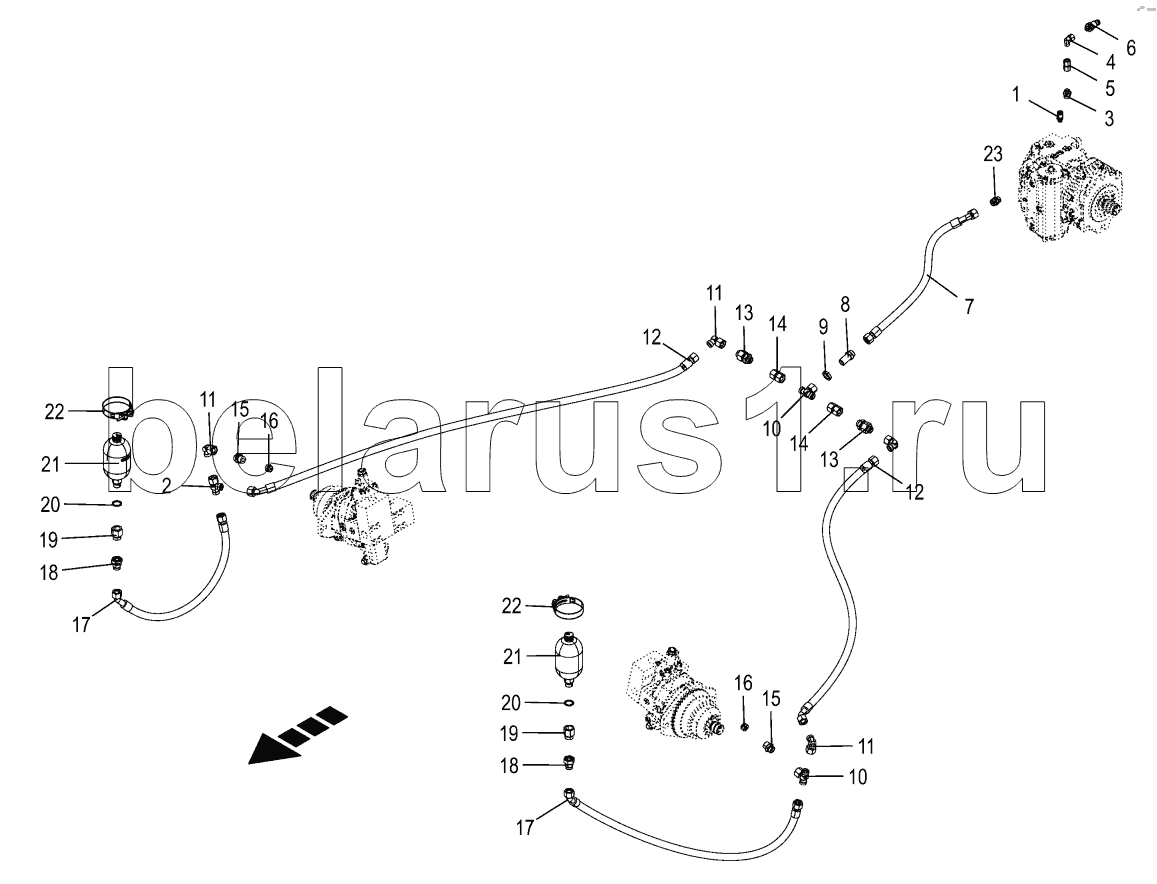

Каталог запасных частей к технике: KRONE BIG-X-530. Charge pressure circuit
/131.gif)
1
2
3
4
5
6
7
8
9
10
10
11
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 270169170 | Measuring coupling | |
| 2 | 009212380 | Adjustable L connection | |
| 3 | 900030080 | Screw-in support | |
| 4 | 009210671 | Angle lug | |
| 5 | 002307430 | Double nipple | |
| 6 | 270118060 | Flat-Face coupling plug | |
| 7 | 270124240 | Hyd. hose | |
| 8 | 009212510 | Straight 2-way connector | |
| 9 | 009210951 | Hex nut-low form | |
| 10 | 900000320 | T connector | |
| 11 | 009211730 | Angle lug | |
| 12 | 270123630 | Hyd. hose | |
| 13 | 009211690 | Non-return valve | |
| 14 | 002307470 | Double nipple | |
| 15 | 009193280 | Male connector | |
| 16 | 270077120 | Non-return valve | |
| 17 | 270124310 | Hyd. hose | |
| 18 | 900017890 | Reducer fitting | |
| 19 | 900017870 | Unscrewing connection | |
| 20 | 900018430 | Sealing ring | |
| 21 | 270078421 | Hyd. accumulator | |
| 22 | 270009260 | Joint bolt-hose clamp | |
| 23 | 900029560 | Screw-in support |
