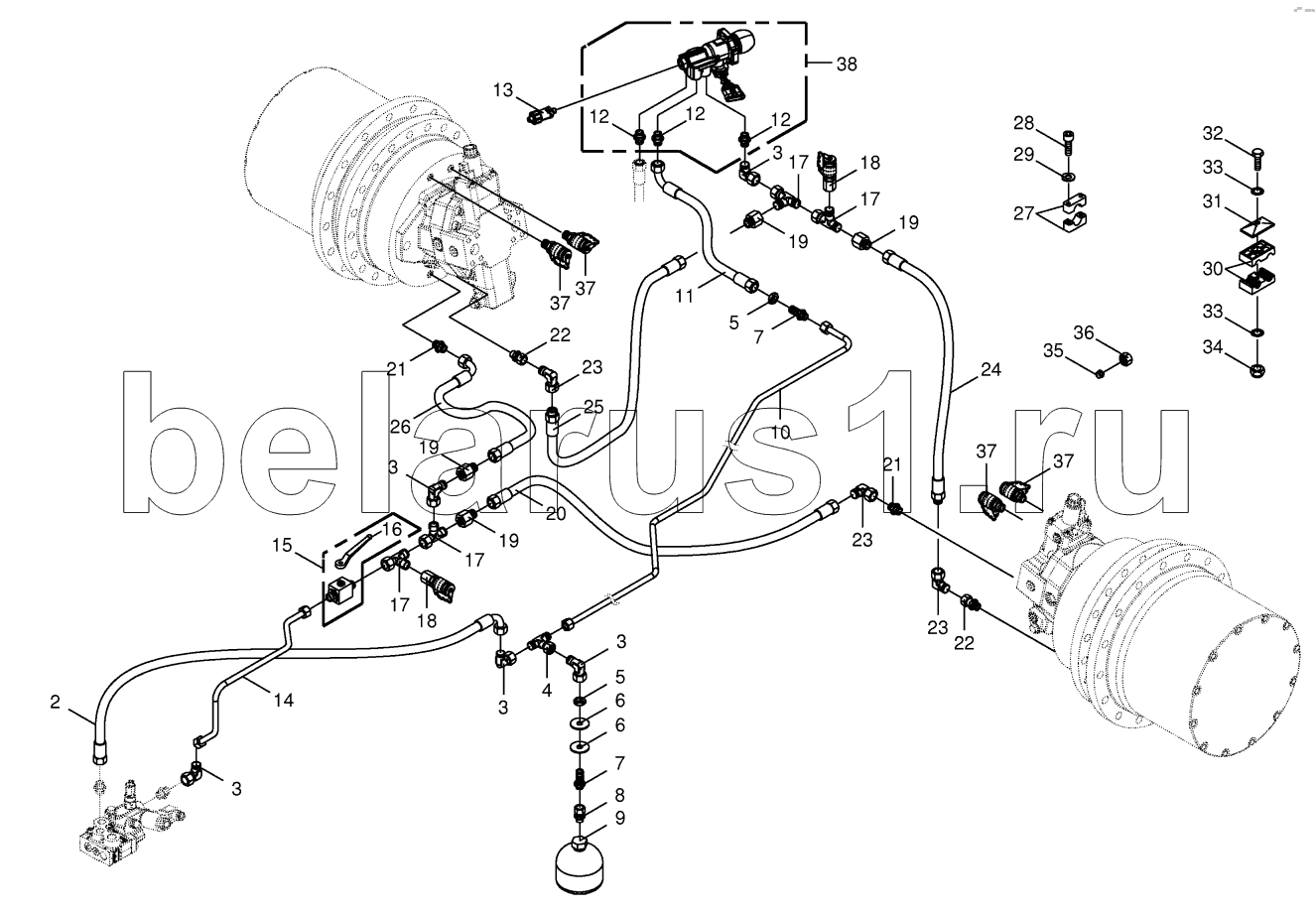

Каталог запасных частей к технике: KRONE BIG-X-600. Hydraulic brakes
2
3
3
3
3
3
4
5
5
6
6
7
7
8
9
10
11
12
12
12
13
14
15
16
17
17
17
17
18
18
19
19
19
19
20
21
21
22
22
23
23
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
37
37
37
37
38
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 270103810 | 270103810 | Hydr. tube 2 SN 6х3800 DKOL DKOL90° | |
| 270101720 | 270101720 | Hydr. Tube 2 SN 10х600 DKOL DKOL90° | |
| 202209940 | 202209940 | Tube de hydr. 12 х 1,5 х 2170 5 Bogen | |
| 2 | 009200950 | High pressure hose line | |
| 3 | 009210671 | Angle lug | |
| 4 | 009210771 | T-connector | |
| 5 | 009085242 | Hex nut-low form | |
| 6 | 009106481 | Washer | |
| 7 | 009210871 | Straight 2-way connector | |
| 8 | 009210931 | Male connector | |
| 9 | 009211500 | Hydraulic-reservoir | |
| 10 | 200207000 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 11 | 270039170 | High pressure hose line | |
| 12 | 900019740 | Мale connector | |
| 13 | 003020292 | Pressure transformer | |
| 14 | 200281770 | Hydraulic line -incl. nozzle disc cap, cutting ring | |
| 15 | 009211222 | Ball cock | |
| 16 | 009196640 | Hand lever-incl. screw, washer | |
| 17 | 009210791 | Adjustable L connection | |
| 18 | 009208680 | Connector f.mini-test equipm. | |
| 19 | 009199700 | Reducer fitting | |
| 20 | 009200820 | High pressure hose line | |
| 21 | 900015500 | Мale connector | |
| 22 | 900017860 | Мale connector | |
| 23 | 009199650 | Angle lug | |
| 24 | 270079520 | High pressure hose line | |
| 25 | 270079530 | High pressure hose line | |
| 26 | 009200800 | High pressure hose line | |
| 27 | 270094020 | Tube clamp 15mm | |
| 28 | 009030480 | Allen screw | |
| 29 | 009104111 | Washer | |
| 30 | 009251050 | Tube clamp-2 halves | |
| 31 | 009251340 | Cover plate | |
| 32 | 009014230 | Hex head bolt | |
| 33 | 009099081 | Detent edged washer | |
| 34 | 009082100 | Hex nut | |
| 35 | 009210461 | Cutting ring | |
| 36 | 009212060 | Nozzle disc cap | |
| 37 | 270079630 | Мesuaring coupling | |
| 38 | 270074921 | Brake valve |
