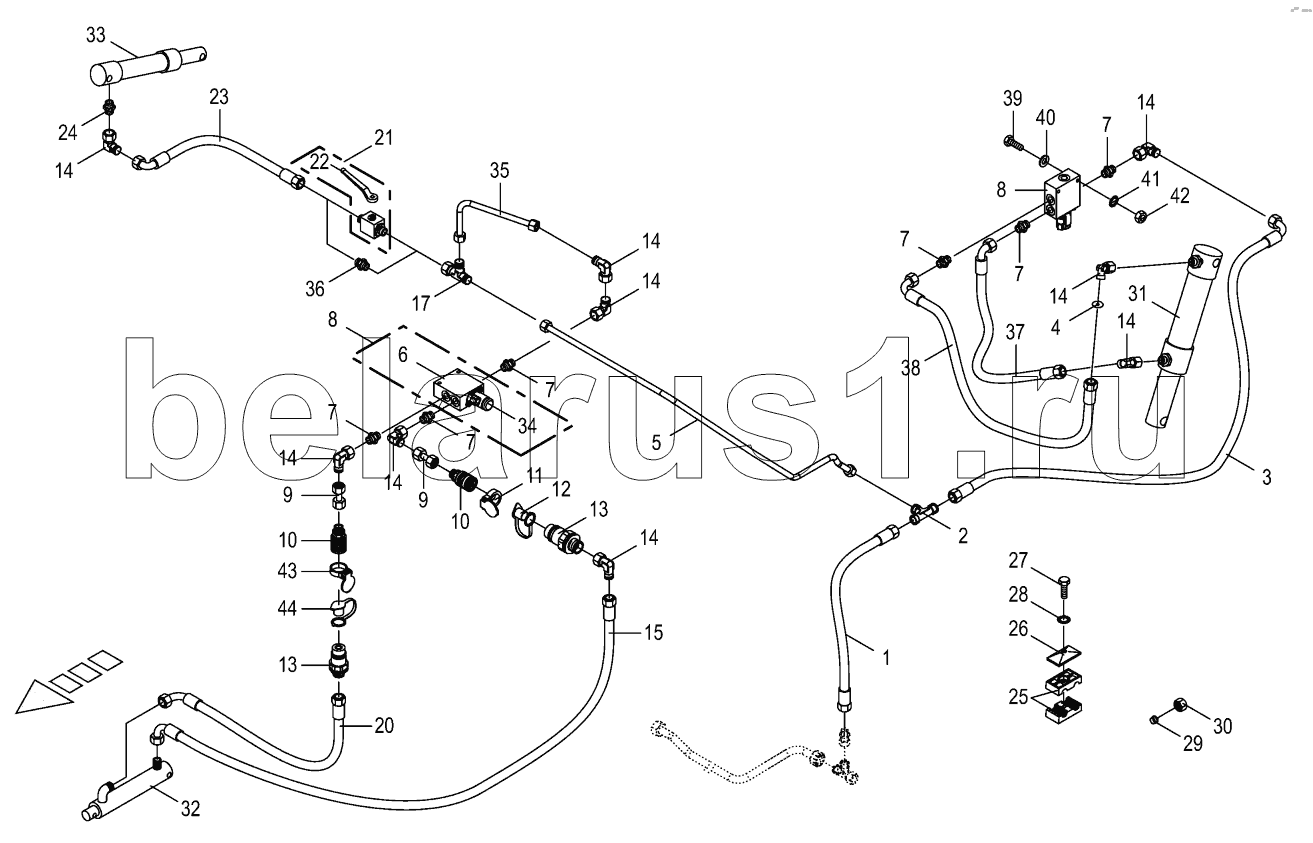

Каталог запасных частей к технике: KRONE BIG-X-600. Charge pressure line-part 2
/110.gif)
1
2
3
4
5
6
7
7
7
7
7
7
8
8
9
9
10
10
11
12
13
13
14
14
14
14
14
14
14
14
14
15
17
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 270006090 | 270006090 | Sealing set | |
| 270082610 | 270082610 | Sealing set | |
| 270034060 | 270034060 | Sealing set | |
| 1 | 270038410 | High pressure hose line | |
| 2 | 009210711 | T connector | |
| 3 | 009212581 | High pressure hose line | |
| 4 | 003320143 | Throttling disc | |
| 5 | 202251930 | Hyd. line | |
| 6 | 270077920 | Housing | |
| 7 | 009196300 | Male connector | |
| 8 | 270077900 | 4/2-Directional-control valve | |
| 9 | 002307430 | Double nipple | |
| 10 | 009193230 | Sleeve | |
| 11 | 009199940 | Cover-red | |
| 12 | 009211711 | Dust cap-red | |
| 13 | 009193220 | Connector plug | |
| 14 | 009210671 | Angle lug | |
| 15 | 009200830 | High pressure hose line | |
| 17 | 009210791 | Adjustable L connection | |
| 20 | 270003320 | High pressure hose line | |
| 21 | 009211222 | Ball cock | |
| 22 | 009196640 | Hand lever-incl. screw, washer | |
| 23 | 270071070 | High pressure hose line | |
| 24 | 009209011 | Male connector | |
| 25 | 009251050 | Tube clamp-2 halves | |
| 26 | 009251340 | Cover plate | |
| 27 | 009010092 | Hex head bolt | |
| 28 | 009099081 | Detent edged washer | |
| 29 | 009210461 | Cutting ring | |
| 30 | 009212060 | Nozzle disc cap | |
| 31 | 270092220 | Нуdrаuliс суlindеr | |
| 32 | 270077930 | Hydraulic cylinder | |
| 33 | 270013700 | Hydraulic cylinder | |
| 34 | 270077910 | 4/2-Directional-control valve | |
| 35 | 200283960 | Hydraulic line -incl. nozzle disc cap, cutting ring | |
| 36 | 009210541 | Connector | |
| 37 | 009200950 | High pressure hose line | |
| 38 | 270038460 | High pressure hose line | |
| 39 | 009002440 | Hex head bolt | |
| 40 | 009104111 | Washer | |
| 41 | 009099061 | Detent edged washer | |
| 42 | 009082080 | Hex nut | |
| 43 | 009166020 | Cover-blue | |
| 44 | 009212631 | Dust cap-blue |
