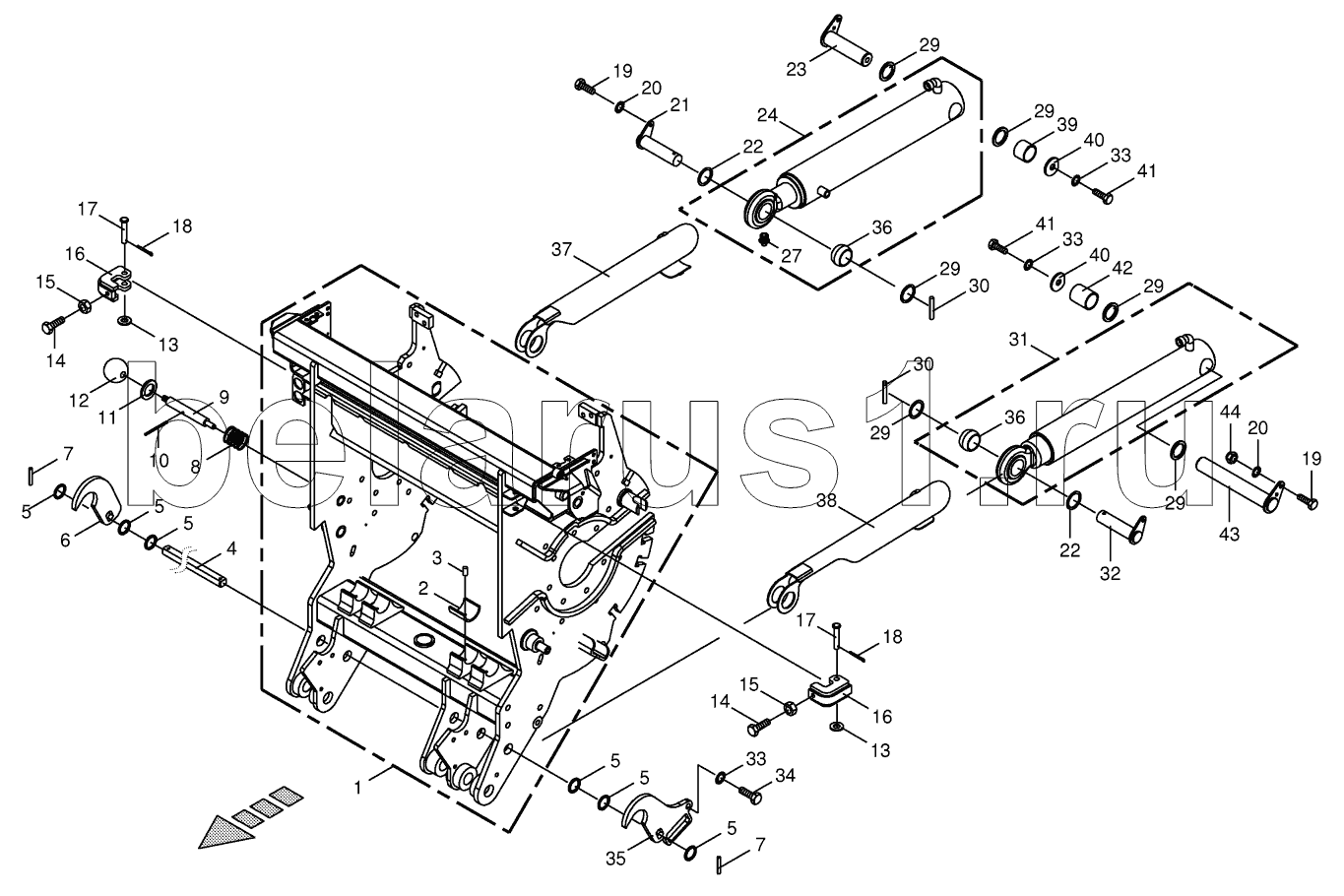

Каталог запасных частей к технике: KRONE BIG-X-600. Chopping drum support
/17.gif)
1
2
3
4
5
5
5
5
5
5
6
7
7
8
9
10
11
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
19
20
20
21
22
22
22
23
24
27
29
29
29
29
29
29
30
30
31
32
33
33
33
34
35
36
36
37
38
39
40
40
41
41
42
43
44
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 270096230 | 270096230 | Sealing set | |
| 009187014 | 009187014 | Gasket set | |
| 1 | 202235800 | Frame n. gen. with stock scarf en | |
| 2 | 002216411 | Sliding bushing | |
| 3 | 009131810 | Grooved pin | |
| 4 | 002178031 | Shaft | |
| 5 | 009107271 | Supporting disc | |
| 6 | 002178024 | Hook | |
| 7 | 009126721 | Roll pin | |
| 8 | 002700400 | Pressure spring | |
| 9 | 200203600 | Safety pin | |
| 10 | 009126182 | Roll pin | |
| 11 | 002280311 | Washer | |
| 12 | 900019120 | Ball knob | |
| 13 | 009103031 | Washer | |
| 14 | 009003451 | Hex head bolt | |
| 15 | 009082200 | Hex nut | |
| 16 | 002153990 | Lock | |
| 17 | 009160190 | Pin | |
| 18 | 009120671 | Cotter pin | |
| 19 | 009006380 | Hex head bolt | |
| 19 | 009006370 | Hex head bolt | |
| 20 | 009099091 | Detent edged washer | |
| 21 | 002171153 | Pin | |
| 22 | 900015650 | Shim ring | |
| 22 | 009108850 | Shim ring | |
| 23 | 200243000 | Pin-right | |
| 24 | 270069191 | Hydraulic cylinder | |
| 27 | 009192020 | Grease niple | |
| 29 | 009106611 | Washer | |
| 30 | 009126482 | Roll pin | |
| 31 | 270069201 | Hydraulic cylinder | |
| 32 | 002144290 | Pin | |
| 33 | 009099121 | Detent edged washer | |
| 34 | 009006760 | Hex head bolt | |
| 35 | 002178004 | Hook | |
| 36 | 270066700 | Joint bearing | |
| 37 | 200275803 | Cylinder cover | |
| 38 | 200291031 | Cylinder cover-small | |
| 39 | 200290580 | Bushing | |
| 40 | 200243020 | Lock washer | |
| 41 | 009003351 | Hex head bolt | |
| 42 | 200290570 | Bushing | |
| 43 | 200242980 | Pin-left | |
| 44 | 009087580 | Locknut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
