Каталог запасных частей к технике: KRONE BIG-X-600. E-motor and
/39.gif)
1
1
3
3
4
4
4
4
5
5
6
6
7
7
8
8
11
14
14
14
19
20
21
26
26
27
28
29
30
31
32
33
34
35
37
38
40
40
41
41
42
42
43
43
44
44
45
47
48
50
51
52
53
54
55
56

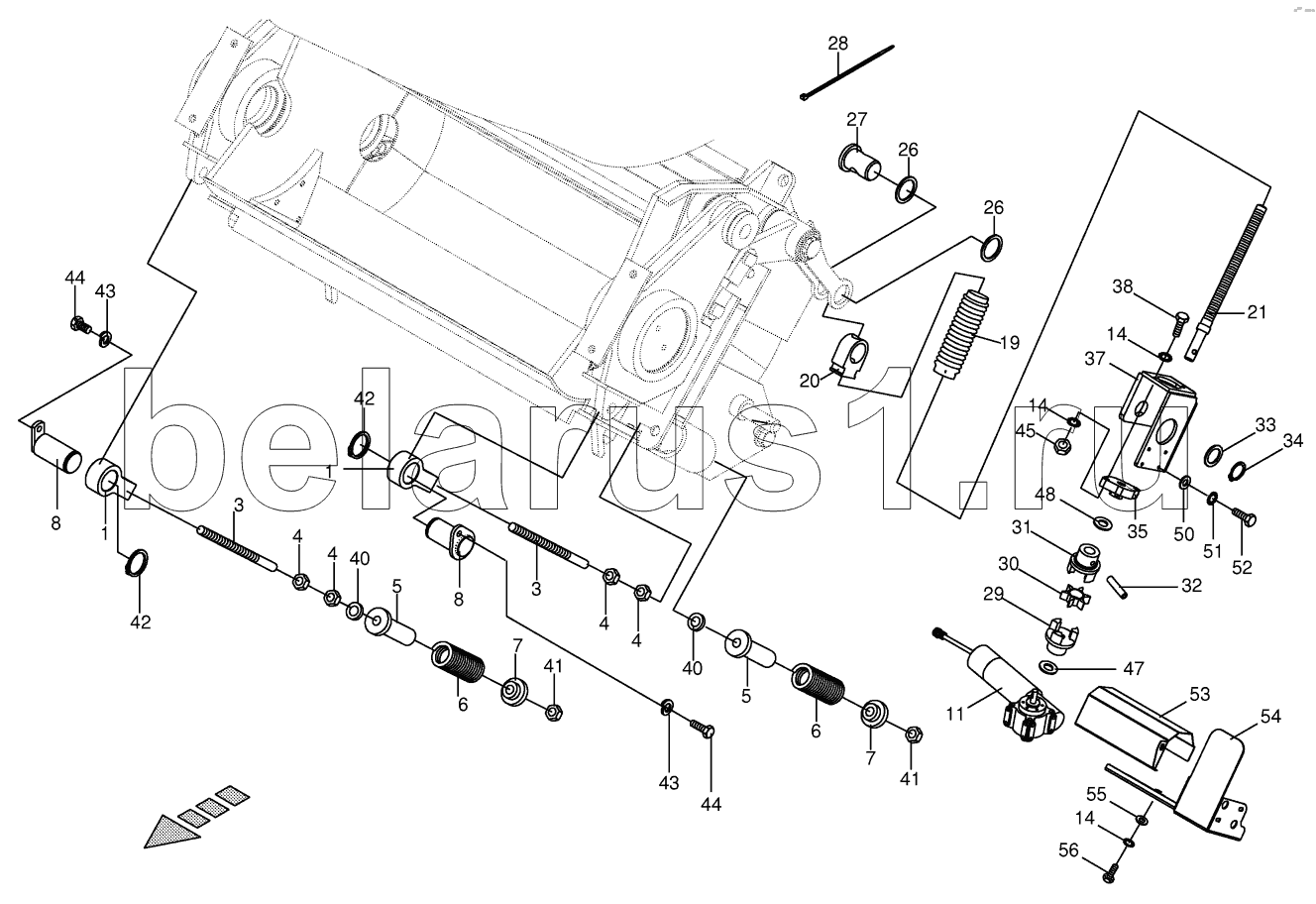

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 002192982 | Eyelet | |
| 3 | 002264791 | Spindle | |
| 4 | 009082150 | Hex nut | |
| 5 | 200231260 | Collar bush | |
| 6 | 200231250 | Pressure spring | |
| 7 | 200231310 | Collar bush | |
| 8 | 002264783 | Pin | |
| 11 | 200228951 | Cracker motor | |
| 14 | 009099061 | Detent edged washer | |
| 19 | 009400910 | Bellows | |
| 20 | 002243831 | Bellows retainer | |
| 21 | 002192885 | Threaded spindle | |
| 26 | 002265351 | Washer | |
| 27 | 002265291 | Threaded bolt | |
| 28 | 009226731 | Cable band | |
| 29 | 001544541 | Rotex-clutch | |
| 30 | 009389281 | Tooth rim | |
| 31 | 002310090 | Clutch | |
| 32 | 009126412 | Roll pin | |
| 33 | 009107021 | Supporting disc | |
| 34 | 009115040 | Circlip | |
| 35 | 009340390 | Flange bearing | |
| 37 | 200229010 | Motor retainer | |
| 38 | 009002000 | Hex head bolt | |
| 40 | 009105061 | Washer | |
| 41 | 009087010 | Locknut | |
| 42 | 009115380 | Circlip | |
| 43 | 009099081 | Detent edged washer | |
| 44 | 009006120 | Hex head bolt | |
| 45 | 009087041 | Locknut | |
| 47 | 009105102 | Washer | |
| 48 | 009104140 | Washer | |
| 50 | 009105001 | Washer | |
| 51 | 009100310 | Spring washer | |
| 52 | 009002920 | Hex head bolt | |
| 53 | 200278910 | Cover plate | |
| 54 | 200278900 | Cover plate | |
| 55 | 009103511 | Washer | |
| 56 | 009006060 | Hex head bolt |
