Каталог запасных частей к технике: KRONE BIG-X-600. Gear molasses pump
/128.gif)
1
2
3
3
4
4
5
6
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
19
19
19
20
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

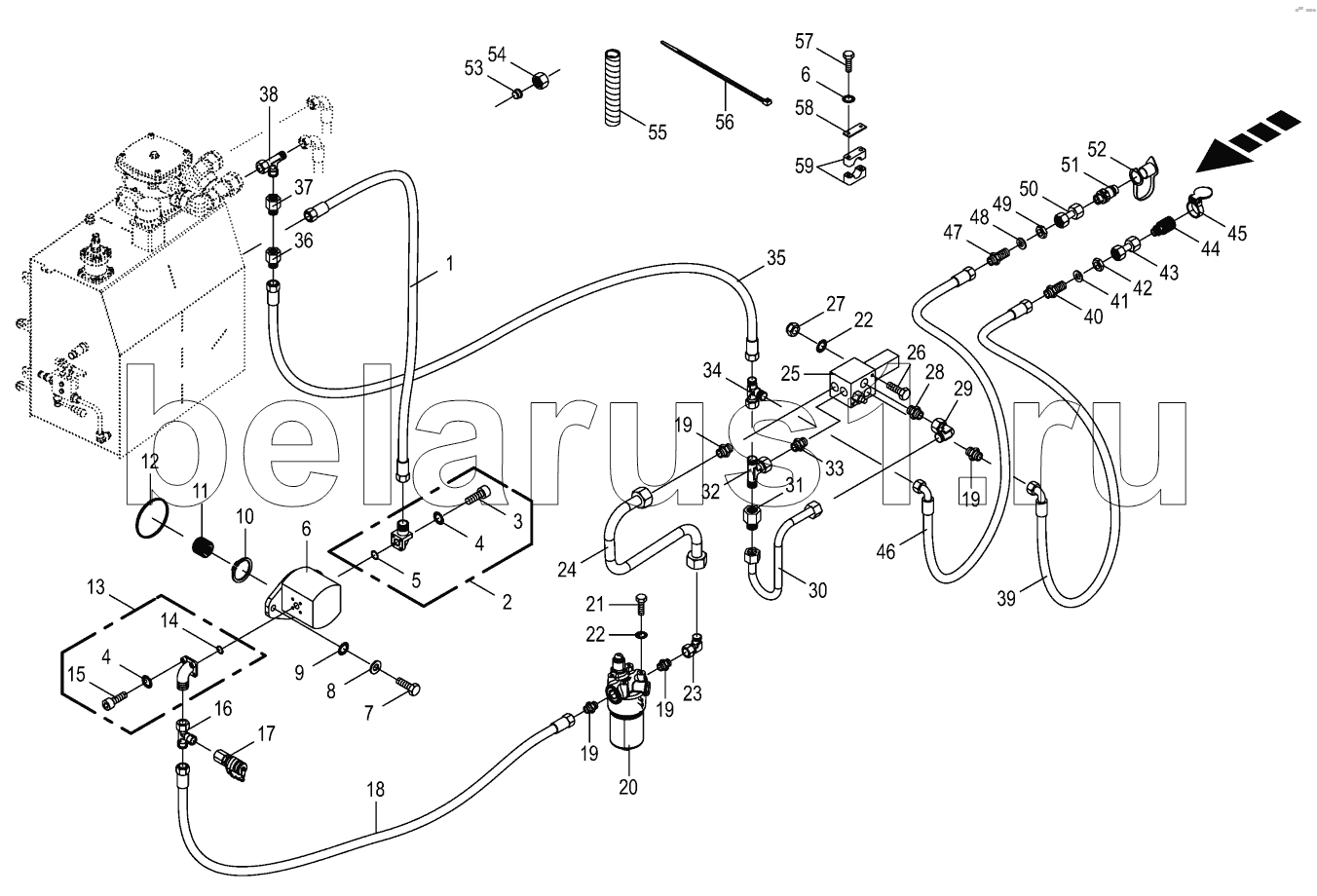

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 009211831 | 009211831 | Cutting ring | |
| 009211820 | 009211820 | Nozzle disc cap | |
| 270104840 | 270104840 | Gasket ring | |
| 900012790 | 900012790 | O-ring | |
| 009197310 | 009197310 | Filter element | |
| 270040280 | 270040280 | Contamination indicator | |
| 1 | 009200130 | High pressure hose line | |
| 2 | 009197570 | Flange connection | |
| 3 | 009030512 | Allen screw | |
| 3 | 009030451 | Allen screw | |
| 4 | 009099061 | Detent edged washer | |
| 5 | 009376280 | O-ring | |
| 6 | 270020050 | Pump | |
| 7 | 009006560 | Hex head bolt | |
| 8 | 009105061 | Washer | |
| 9 | 009099101 | Detent edged washer | |
| 10 | 009115100 | Circlip | |
| 11 | 200269360 | Adapter | |
| 12 | 009376111 | O-ring | |
| 13 | 009197560 | Flange connection | |
| 14 | 009376290 | O-ring | |
| 15 | 009030491 | Allen screw | |
| 15 | 009030451 | Allen screw | |
| 16 | 009210750 | Adjustable L connection | |
| 17 | 009208690 | Connector f.mini-test equipm. | |
| 18 | 270064790 | High pressure hose line | |
| 19 | 009209111 | Male connector | |
| 20 | 270040260 | High pressure filter -cpl. | |
| 21 | 009006140 | Hex head bolt | |
| 22 | 009099081 | Detent edged washer | |
| 23 | 009210651 | Angle lug | |
| 24 | 200288250 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 25 | 009193320 | Control bloc | |
| 26 | 009002231 | Hex head bolt | |
| 27 | 009082100 | Hex nut | |
| 28 | 009197851 | Male connector | |
| 29 | 009210671 | Angle lug | |
| 30 | 200213200 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 31 | 009209020 | Reducer fitting | |
| 32 | 900000320 | T connector | |
| 33 | 009211741 | Male connector | |
| 34 | 009212380 | Adjustable L connection | |
| 35 | 270011590 | High pressure hose line | |
| 36 | 009196590 | Reducer fitting | |
| 37 | 009199250 | Reducer fitting | |
| 38 | 009199220 | Adjustable L connection | |
| 39 | 270071360 | High pressure hose line | |
| 40 | 009212500 | Straight 2-way connector | |
| 41 | 009103690 | Washer | |
| 42 | 009210741 | Hex nut-low form | |
| 43 | 002307440 | Double nipple | |
| 44 | 009211312 | Sleeve | |
| 45 | 009199940 | Cover-red | |
| 46 | 270020090 | High pressure hose line | |
| 47 | 009212510 | Straight 2-way connector | |
| 48 | 009103750 | Washer | |
| 49 | 009210951 | Hex nut-low form | |
| 50 | 002307470 | Double nipple | |
| 51 | 009211670 | Connector plug | |
| 52 | 009211711 | Dust cap-red | |
| 53 | 009210471 | Cutting ring | |
| 54 | 009210430 | Nozzle disc cap | |
| 55 | 009404780 | Spiral strip-Id.-no.= 1m | |
| 56 | 009226711 | Cable band | |
| 57 | 009014100 | Hex head bolt | |
| 58 | 009251450 | Cover plate | |
| 59 | 270039060 | Tube clamp-2 halves |
