Каталог запасных частей к технике: KRONE BIG-X-600. Gear oil cooler
/143.gif)
1
3
4
4
5
5
6
6
7
7
8
12
12
13
14
15
15
16
17
17
18
19
20
21
22
23
24
25
25
26
27
28
28
29
30
31
32
33
33
33
33
35
36
36
37
37
38
39
40
41
42
43
44
45
46
47
48
49
49
51
51
54
58
59
60

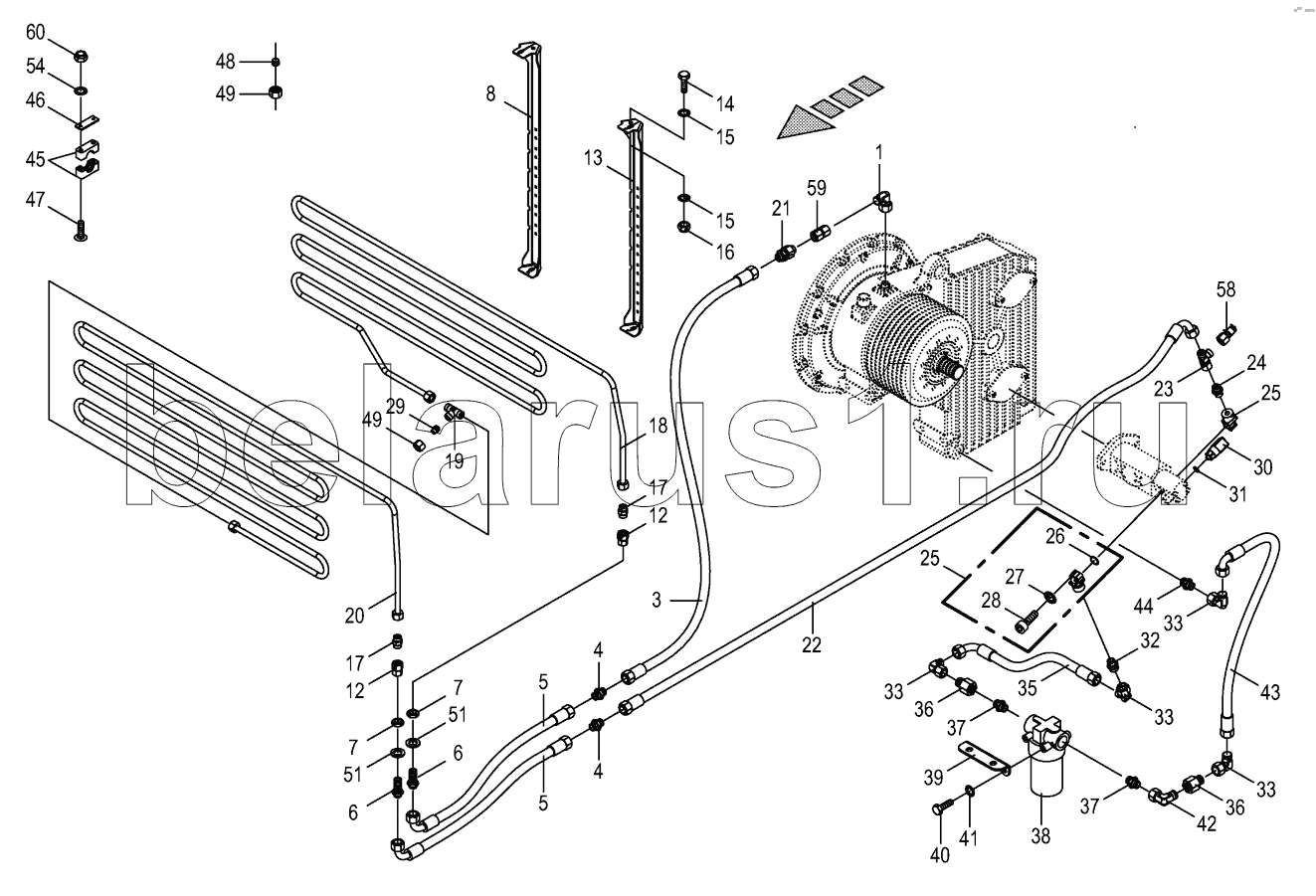

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 009192450 | 009192450 | Filter element | |
| 900004000 | 900004000 | O-ring | |
| 1 | 009210671 | Angle lug | |
| 3 | 009210352 | High pressure hose line | |
| 4 | 009210531 | Connector | |
| 5 | 009200780 | High pressure hose line | |
| 6 | 009212500 | Straight 2-way connector | |
| 7 | 009210741 | Hex nut-low form | |
| 8 | 202213440 | Clamp support rh. 3 x971x183 | |
| 9 | 009006160 | Hex head bolt | |
| 10 | 009099081 | Detent edged washer | |
| 11 | 009087060 | Locknut | |
| 12 | 900022470 | Red-Verschr. Doppelmutter S/L16/15 | |
| 13 | 202213450 | Clamp support lh. 3 x894x158 | |
| 14 | 009006370 | Hex head bolt | |
| 15 | 009099091 | Detent edged washer | |
| 16 | 009087580 | Locknut | |
| 17 | 900022480 | Verbindungsstutzen S 16 A3G | |
| 18 | 202213400 | Tube back | |
| 19 | 900022640 | T-Verbindungsstutzen S 16 A3G | |
| 20 | 202213350 | Tube front | |
| 21 | 900014250 | Valve | |
| 22 | 270026710 | High pressure hose line | |
| 23 | 009210750 | Adjustable L connection | |
| 24 | 009210622 | Male connector | |
| 25 | 270002320 | Gear pump flange | |
| 26 | 009375130 | O-ring | |
| 27 | 009099061 | Detent edged washer | |
| 28 | 009030502 | Allen screw | |
| 28 | 009030480 | Allen screw | |
| 29 | 900022650 | Verschlusskegel mit O-Ring S 16A3G | |
| 30 | 200802000 | Pressure switch | |
| 31 | 009377171 | Gasket ring | |
| 32 | 009211792 | Male connector | |
| 33 | 009211730 | Angle lug | |
| 35 | 270024470 | High pressure hose line | |
| 36 | 009196590 | Reducer fitting | |
| 37 | 009199570 | Male connector | |
| 38 | 009192440 | Suction filter | |
| 39 | 200271040 | Filter carrier | |
| 40 | 009006530 | Hex head bolt | |
| 41 | 009099101 | Detent edged washer | |
| 42 | 009208220 | Angle lug | |
| 43 | 009200960 | High pressure hose line | |
| 44 | 009197620 | Male connector | |
| 45 | 009251630 | Tube clamp-2 halves | |
| 46 | 009251450 | Cover plate | |
| 47 | 900022540 | Flachrundschr.4kt M6x85 A3G | |
| 48 | 009208080 | Cutting ring | |
| 49 | 009208020 | Nozzle disc cap | |
| 51 | 009103690 | Washer | |
| 54 | 900004770 | Hex head bolt | |
| 55 | 009099061 | Detent edged washer | |
| 56 | 009251360 | Cover plate | |
| 57 | 270063810 | Tube clamp-2 halves | |
| 58 | 009208690 | Connector f.mini-test equipm. | |
| 59 | 002307440 | Double nipple | |
| 60 | 009087041 | Locknut |
