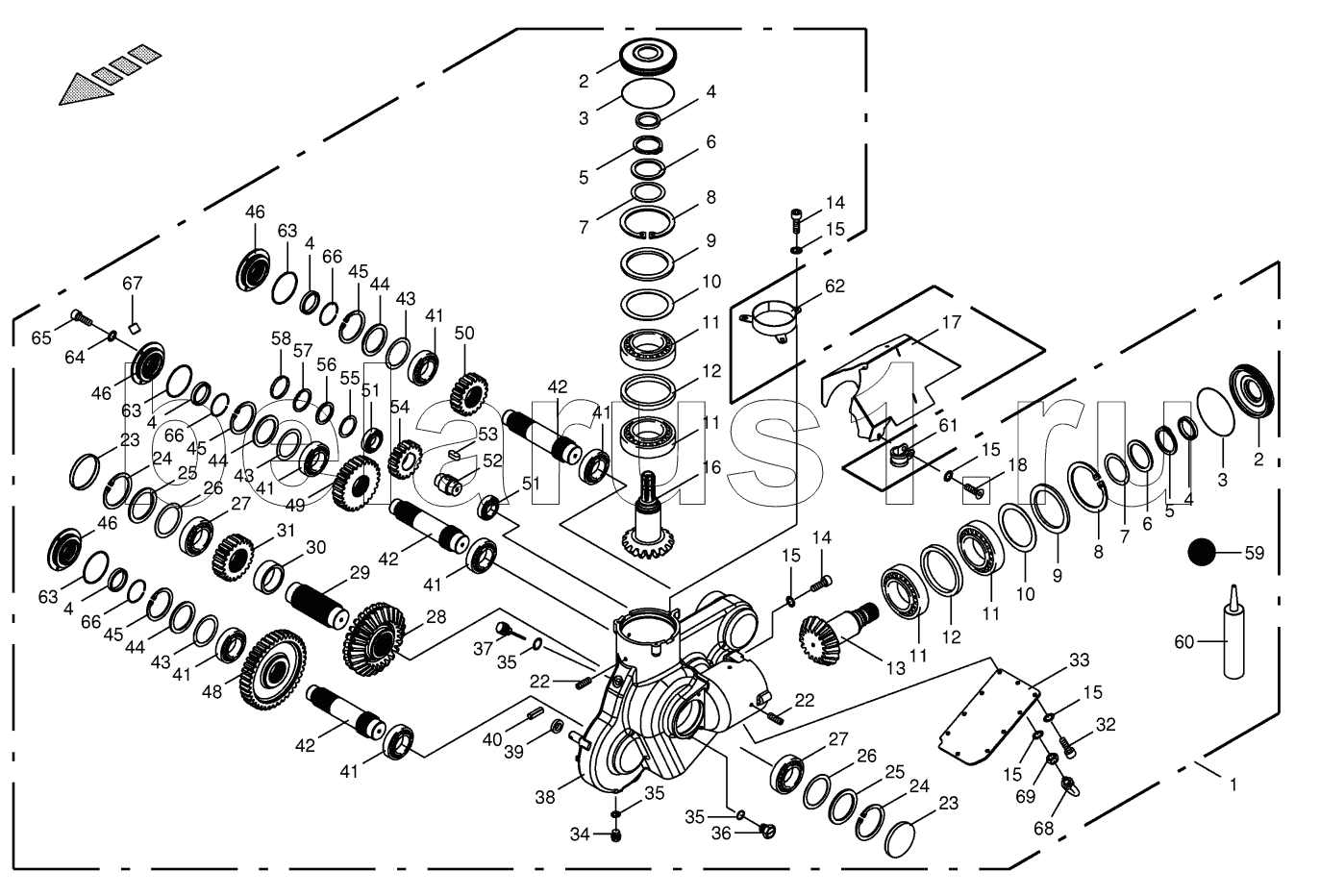

Каталог запасных частей к технике: KRONE BIG-X-600. Roller gear below
/12.gif)
1
2
2
3
3
4
4
4
4
4
5
5
6
6
7
7
7
7
8
8
9
9
10
10
10
10
11
11
11
11
12
12
13
14
14
15
15
15
15
15
16
17
18
22
22
23
23
24
24
25
25
26
26
26
26
26
27
27
28
29
30
31
32
33
34
35
35
35
36
37
38
39
40
41
41
41
41
41
41
42
42
42
43
43
43
43
43
43
43
44
44
44
45
45
45
46
46
46
48
49
50
51
51
52
53
54
55
55
56
57
58
59
60
61
62
63
63
63
64
65
66
66
66
67
68
69
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 202201031 | Lower roller gearbox assembl. | |
| 2 | 200258740 | Cover | |
| 3 | 009375940 | O-ring | |
| 4 | 900012740 | Radial-shaft sealing ring | |
| 5 | 009115930 | Circlip | |
| 6 | 009107431 | Supporting disc | |
| 7 | 009109660 | Shim ring | |
| 7 | 009109680 | Shim ring | |
| 7 | 009109690 | Shim ring | |
| 8 | 009116980 | Circlip | |
| 9 | 900020150 | Supporting disc | |
| 10 | 009109320 | Shim ring | |
| 10 | 009109300 | Shim ring | |
| 10 | 900020190 | Shim ring | |
| 11 | 009321510 | Taper roller bearing | |
| 12 | 200258800 | Spacer ring | |
| 13 | 200243920 | Cone pinion shaft | |
| 14 | 009030731 | Allen screw | |
| 15 | 009099081 | Detent edged washer | |
| 16 | 200243970 | Cone pinion shaft | |
| 17 | 202228700 | Dirt deflector | |
| 18 | 900002170 | Fillister head screw | |
| 22 | 009059110 | Threaded pin | |
| 23 | 009252081 | Sealing cap | |
| 24 | 009116860 | Circlip | |
| 25 | 009107470 | Supporting disc | |
| 26 | 009111680 | Shim ring | |
| 26 | 900004330 | Shim ring | |
| 26 | 009111660 | Shim ring | |
| 26 | 009111650 | Shim ring | |
| 27 | 009321660 | Taper roller bearing | |
| 28 | 200243980 | Bevel wheel | |
| 29 | 200244050 | Distributor shaft | |
| 30 | 200244070 | Spacer bushing | |
| 31 | 200243990 | Spur pinion | |
| 32 | 009030751 | Allen screw | |
| 33 | 200258730 | Gearbox cover | |
| 34 | 270010670 | Screw plug | |
| 35 | 009377270 | Gasket ring | |
| 36 | 009198230 | Oil sight glass | |
| 37 | 009198111 | Breather | |
| 38 | 202201022 | Gearbox housing | |
| 39 | 002810140 | Bushing | |
| 40 | 009126393 | Roll pin | |
| 41 | 009321550 | Taper roller bearing | |
| 42 | 200244060 | Drive shaft | |
| 43 | 009109430 | Shim ring | |
| 43 | 009109470 | Shim ring | |
| 43 | 009109460 | Shim ring | |
| 43 | 009109450 | Shim ring | |
| 43 | 009109440 | Shim ring | |
| 44 | 009107440 | Supporting disc | |
| 45 | 009116800 | Circlip | |
| 46 | 202200992 | Gearbox sealing flange | |
| 48 | 200244000 | Spur gear | |
| 49 | 200244010 | Spur gear | |
| 50 | 200244030 | Spur gear | |
| 51 | 009321060 | Taper roller bearing | |
| 52 | 200244040 | Intermediate shaft | |
| 53 | 009152001 | Fit-in key | |
| 54 | 200244020 | Spur pinion | |
| 55 | 009108330 | Shim ring | |
| 55 | 009108340 | Shim ring | |
| 56 | 009107390 | Supporting disc | |
| 57 | 009116680 | Circlip | |
| 58 | 009252031 | Sealing cap | |
| 59 | 009261010 | Oil-Id.-no.=1ltr | |
| 60 | 009385521 | Universal-sealant-silicone- free | |
| 61 | 009240610 | Tube clip w. rubber | |
| 62 | 200268930 | Centring system | |
| 63 | 009376180 | O-ring | |
| 64 | 009099030 | Detent edged washer | |
| 65 | 009030731 | Allen screw | |
| 66 | 009119060 | Snap ring | |
| 67 | 270070070 | Screw plug | |
| 68 | 002804002 | Eyebolt | |
| 69 | 009087060 | Locknut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
