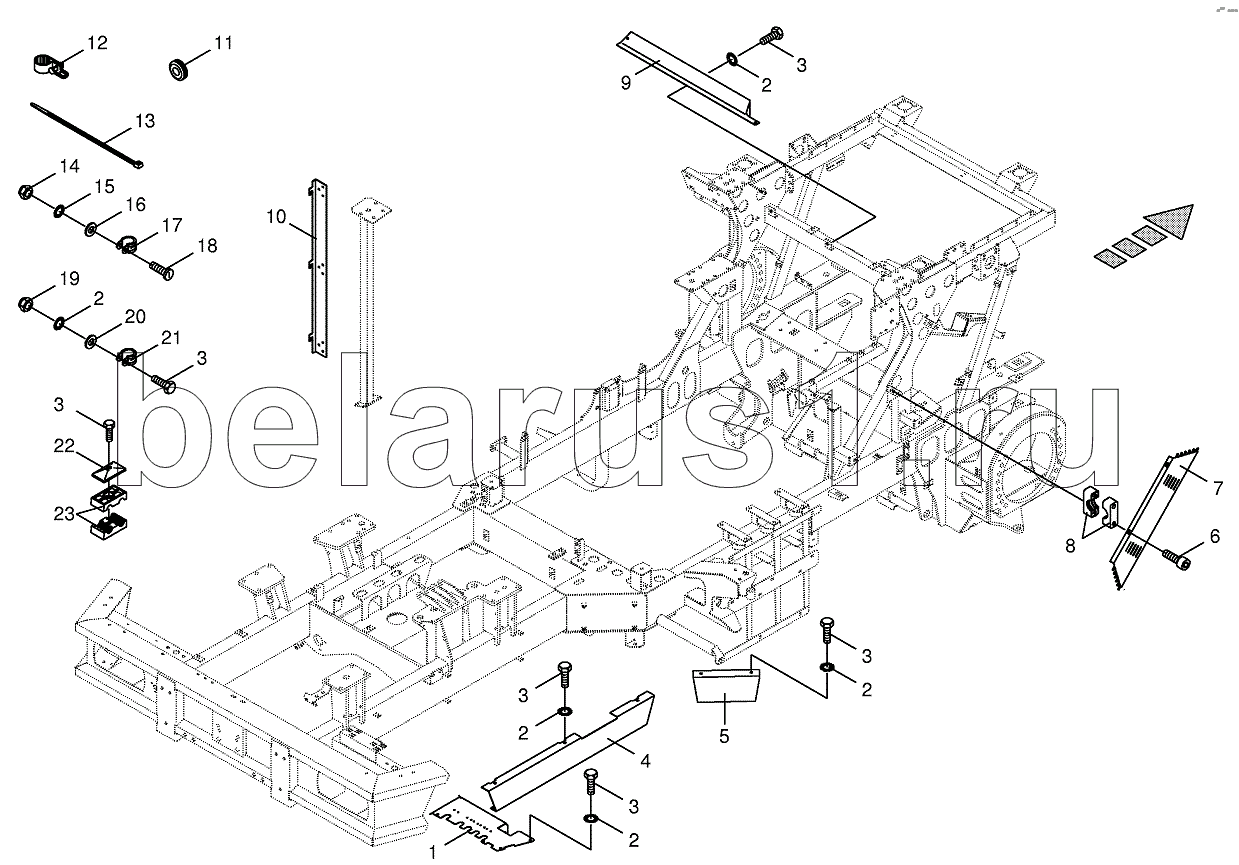

Каталог запасных частей к технике: KRONE BIG-X-650. Wiring harness fastening
1
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
5
6
7
8
9
10
11
12
12
12
12
13
13
13
14
15
16
17
18
19
20
21
21
22
23
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 002154972 | Cover plate-back right | |
| 2 | 009099081 | Detent edged washer | |
| 3 | 009006120 | Hex head bolt | |
| 3 | 009006140 | Hex head bolt | |
| 3 | 009006160 | Hex head bolt | |
| 3 | 009002010 | Hex head bolt | |
| 3 | 009014220 | Hex head bolt | |
| 4 | 002178792 | Wiring harness plate-back | |
| 5 | 002178812 | Wiring harness plate | |
| 6 | 009030451 | Allen screw | |
| 7 | 002178850 | Wiring harness plate-front | |
| 8 | 009251071 | Tube clamp-2 halves | |
| 9 | 003600981 | Intermediate housing | |
| 10 | 200214820 | Cable support | |
| 11 | 009242340 | Guidance sleeve | |
| 12 | 009240710 | Screwless corrugatend tube | |
| 12 | 009240700 | Screwless corrugatend tube | |
| 12 | 009240690 | Screwless corrugatend tube | |
| 12 | 009240680 | Screwless corrugatend tube | |
| 13 | 009226711 | Cable band | |
| 13 | 009226722 | Cable band | |
| 13 | 009226731 | Cable band | |
| 14 | 009082071 | Hex nut | |
| 15 | 009100310 | Spring washer | |
| 16 | 009105001 | Washer | |
| 17 | 009240100 | Tube clip w. rubber | |
| 18 | 009037471 | Allen screw | |
| 19 | 009087060 | Locknut | |
| 20 | 009104130 | Washer | |
| 21 | 009240620 | Tube clip w. rubber | |
| 21 | 009240610 | Tube clip w. rubber | |
| 22 | 009251340 | Cover plate | |
| 23 | 009251080 | Tube clamp-2 halves |
