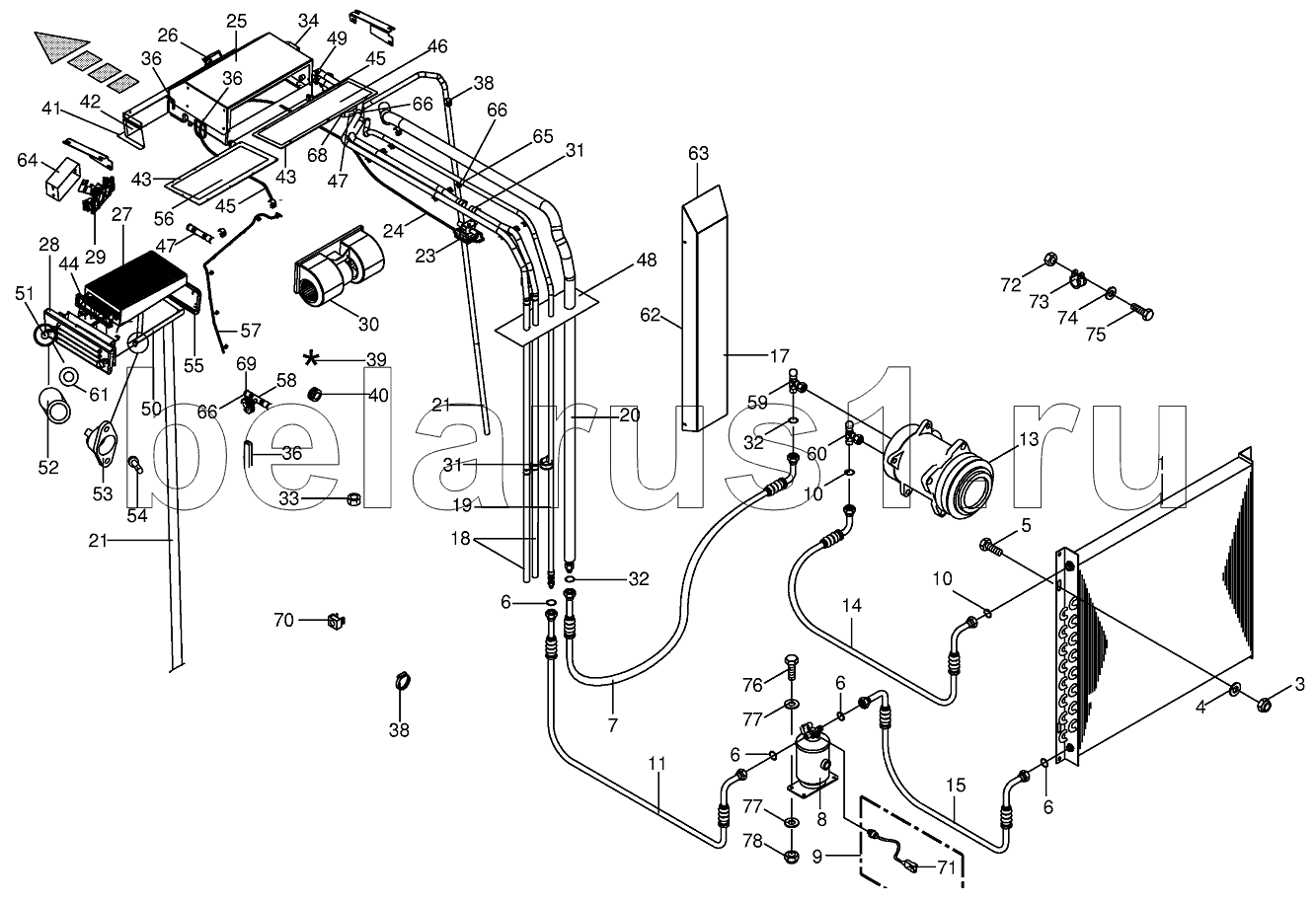

Каталог запасных частей к технике: KRONE BIG-X-650. Air conditioning
1
3
4
5
6
6
6
6
7
8
9
10
10
11
13
13
14
15
17
18
19
20
21
21
23
24
25
25
25
25
25
26
27
28
29
30
31
31
31
32
32
33
34
36
36
36
38
38
39
40
41
42
43
43
44
45
45
46
47
47
48
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
66
66
68
69
70
71
72
73
73
74
75
76
76
77
77
78
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 009401110 | Condenser for air conditioner | |
| 3 | 009087580 | Locknut | |
| 4 | 009104140 | Washer | |
| 5 | 009006360 | Hex head bolt | |
| 6 | 009376220 | O-ring | |
| 7 | 009402570 | Tube | |
| 8 | 009401070 | Drier | |
| 9 | 009401091 | Pressure switch | |
| 10 | 009376230 | O-ring | |
| 11 | 009402580 | Tube | |
| 13 | 009401120 | Compressor for air conditioner | |
| 13 | 002206930 | Gasket | |
| 14 | 270003800 | Tube | |
| 15 | 270003790 | Tube | |
| 17 | 002206510 | Cover | |
| 18 | 002204250 | Hose | |
| 19 | 002204200 | Hose | |
| 20 | 002204210 | Hose | |
| 21 | 002204300 | Hose | |
| 23 | 002204190 | Heater valve | |
| 24 | 002204180 | Bowden cable | |
| 25 | 002205060 | Evaporator | |
| 25 | 002205080 | Housing | |
| 25 | 002205720 | Equalizer disk-big | |
| 25 | 002205730 | Equalizer disk-small | |
| 25 | 002204270 | Рrооfing аnglе | |
| 26 | 002204170 | Thermostat | |
| 27 | 002204240 | Particle filter | |
| 28 | 002205200 | Cover | |
| 29 | 002204160 | Control unit | |
| 30 | 002204230 | Fan | |
| 31 | 009240510 | Tube clip w. rubber | |
| 31 | 009240110 | Tube clip w. rubber | |
| 32 | 009376240 | O-ring | |
| 33 | 002205070 | Cable clamp | |
| 34 | 002205680 | Expansion block valve | |
| 36 | 009251110 | Edge protection-Id.-no.= 1m | |
| 38 | 009240011 | Tube clip | |
| 39 | 002205810 | Wiring harness for fan | |
| 40 | 009242070 | Cable bushing | |
| 41 | 002205710 | Gasket frame | |
| 42 | 002205700 | Air injection lug | |
| 43 | 009401920 | Self-adhesive sealing strip-Id.-no.= 1m | |
| 44 | 002205910 | Rubber profile | |
| 45 | 002206750 | Condensate downspout-hose | |
| 46 | 002204260 | Cover | |
| 47 | 002206530 | Hose coupling | |
| 48 | 002205760 | Dust protection | |
| 50 | 002204450 | Insertion | |
| 51 | 002205860 | Locking spigot | |
| 52 | 002205870 | Spacer ring | |
| 53 | 002205880 | Cam-lock | |
| 54 | 002205890 | Blind rivet | |
| 55 | 002205900 | Gasket frame | |
| 56 | 002204500 | Cover | |
| 57 | 002206770 | Condensate downspout-hose | |
| 58 | 002206760 | Hose coupling-T-piece | |
| 59 | 002206920 | Valve | |
| 60 | 002206910 | Valve | |
| 61 | 009115900 | Lock washer | |
| 62 | 002204460 | Sealing profile | |
| 63 | 002204491 | Gasket | |
| 64 | 002204370 | Frame for radio cut-out | |
| 65 | 002207070 | Cable band support | |
| 66 | 009226731 | Cable band | |
| 68 | 002206540 | Cable socket | |
| 69 | 002204330 | Cable socket | |
| 70 | 009095120 | Sheet nut | |
| 71 | 003050590 | Plug-2-pole | |
| 72 | 009082071 | Hex nut | |
| 73 | 009240610 | Tube clip w. rubber | |
| 73 | 009240620 | Tube clip w. rubber | |
| 74 | 009105001 | Washer | |
| 75 | 009030140 | Allen screw | |
| 76 | 009002000 | Hex head bolt | |
| 76 | 009006080 | Hex head bolt | |
| 77 | 009104111 | Washer | |
| 78 | 009087041 | Locknut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
