Каталог запасных частей к технике: KRONE BIG-X-650. Battery Ьох
1
2
2
3
3
3
4
5
6
7
7
7
7
8
8
8
9
10
11
11
11
12
13
14
14
15
16
17
17
17
17
17
18
18
18
18
18
18
18
18
18
19
20
21
22
23
23
23
24
25
26
27
27
28
29
30
31
32
33
34
34
35
35
35
36
36
37
38
39
40
41
42
43
44
45
46
47
48

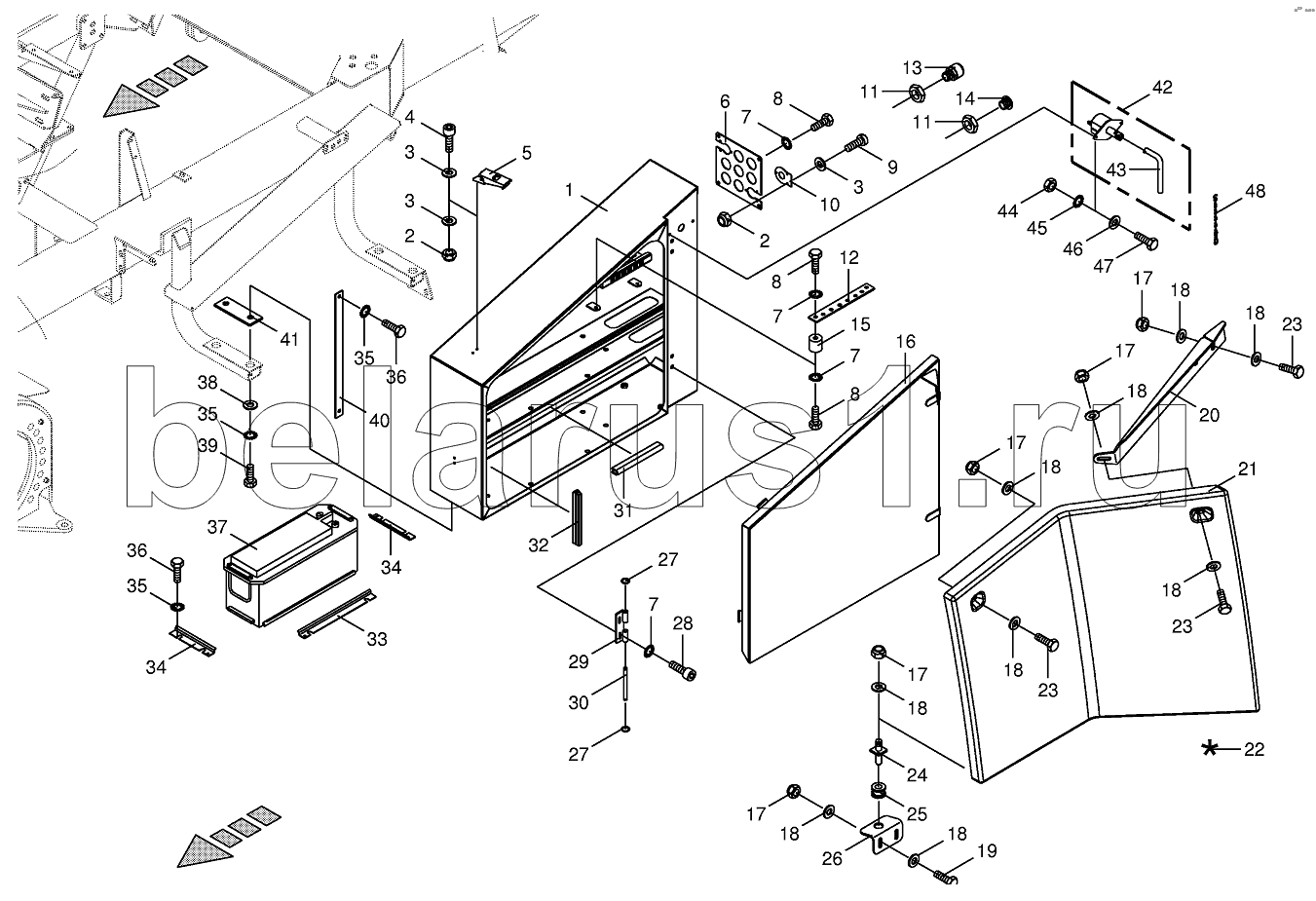

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 002177512 | Battery box | |
| 2 | 009087020 | Locknut | |
| 3 | 009105001 | Washer | |
| 4 | 009030140 | Allen screw | |
| 5 | 009242190 | Clamping lock | |
| 6 | 002170000 | Connecting plate | |
| 7 | 009099081 | Detent edged washer | |
| 8 | 009006120 | Hex head bolt | |
| 9 | 009036520 | Allen screw | |
| 10 | 002170140 | End plate | |
| 11 | 003017980 | Locknut | |
| 11 | 003035520 | Locknut | |
| 12 | 002285730 | Plus-rail | |
| 13 | 003027900 | Screw connection | |
| 14 | 003017480 | Blind plug | |
| 14 | 003038850 | Blind plug | |
| 15 | 003028990 | Spacing isolator | |
| 16 | 002177521 | Box door | |
| 17 | 009087060 | Locknut | |
| 18 | 009106030 | Washer | |
| 19 | 009006140 | Hex head bolt | |
| 20 | 003601370 | Support | |
| 21 | 002168170 | Batterie-box protection | |
| 22 | 009403750 | Repairing set for plastics- beige | |
| 23 | 009006160 | Hex head bolt | |
| 24 | 002175841 | Sprig | |
| 25 | 009242070 | Cable bushing | |
| 26 | 002175831 | Angle | |
| 27 | 009115900 | Lock washer | |
| 28 | 009030751 | Allen screw | |
| 29 | 002232211 | Hinge | |
| 30 | 002232221 | Axle | |
| 31 | 009251110 | Edge protection-Id.-no.= 1m | |
| 32 | 009386941 | Rubber profile-Id.-no.= 1m | |
| 33 | 002305283 | Battery support | |
| 34 | 002177721 | Battery support | |
| 35 | 009099091 | Detent edged washer | |
| 36 | 009006320 | Hex head bolt | |
| 37 | 003026480 | Battery | |
| 38 | 009104140 | Washer | |
| 39 | 009006360 | Hex head bolt | |
| 40 | 003026760 | Bonding braid | |
| 41 | 002177730 | Twixt rubber | |
| 42 | 003025080 | Main power cut-off | |
| 43 | 003022290 | Control key | |
| 44 | 009082080 | Hex nut | |
| 45 | 009099061 | Detent edged washer | |
| 46 | 009104111 | Washer | |
| 47 | 009006070 | Hex head bolt | |
| 48 | 009226512 | Chain |
