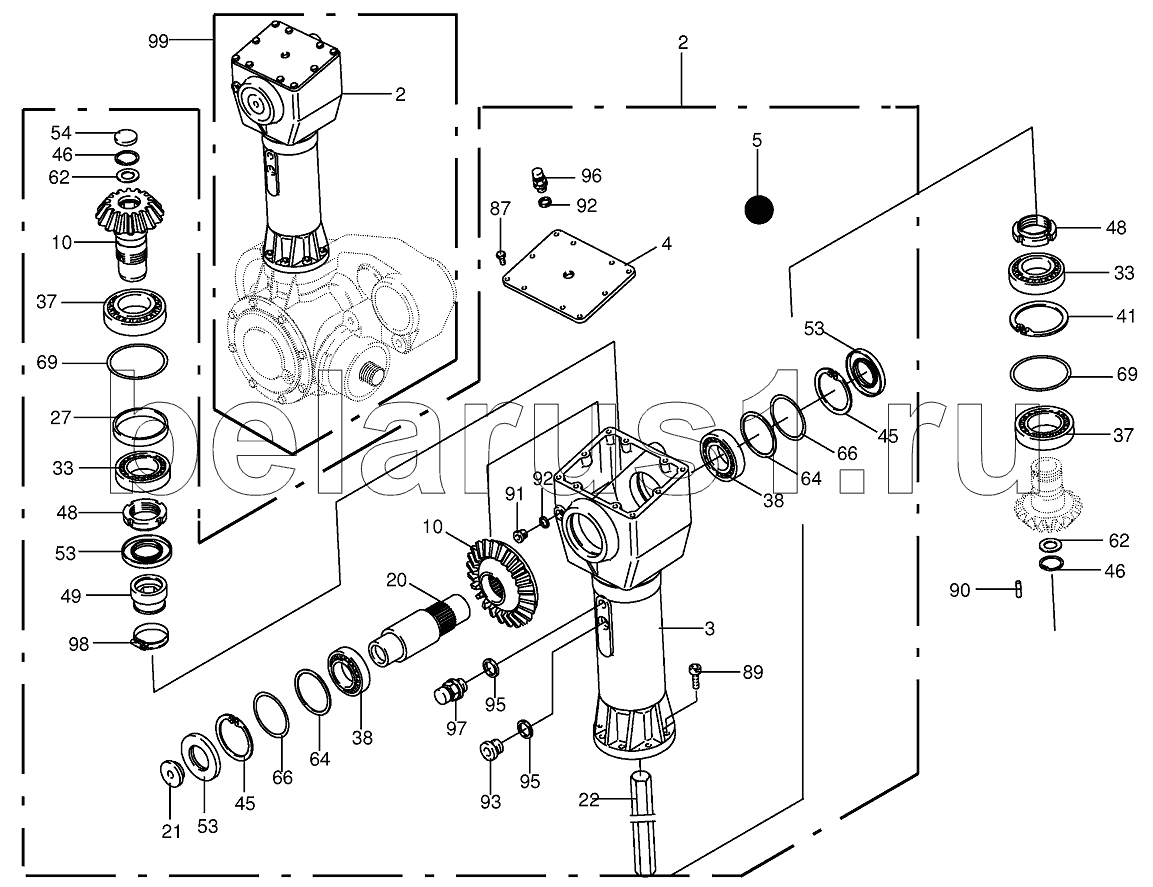

Каталог запасных частей к технике: KRONE BIG-X-650. Roller gearbox part 1
2
2
3
4
5
10
10
20
21
22
27
33
33
37
37
38
38
41
45
45
46
46
48
48
49
53
53
53
54
62
62
64
64
66
66
66
66
69
69
69
69
69
87
89
90
91
92
92
93
95
95
96
97
98
99
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 009558410 | Gearbox-cpl. | |
| 3 | 009557490 | Housing | |
| 4 | 009557500 | Cover | |
| 5 | 009261010 | Oil-Id.-no.=1ltr | |
| 10 | 009557520 | Bevel wheel set | |
| 20 | 009557620 | Hollow shaft | |
| 21 | 009557630 | End plate | |
| 22 | 009557640 | Shaft | |
| 27 | 009557650 | Bushing | |
| 33 | 009321100 | Taper roller bearing | |
| 37 | 009321410 | Taper roller bearing | |
| 38 | 009321090 | Taper roller bearing | |
| 41 | 009116100 | Circlip | |
| 45 | 009116800 | Circlip | |
| 46 | 009116400 | Circlip | |
| 48 | 009557680 | Slotted nut | |
| 49 | 009557690 | Hexagon profile ring | |
| 53 | 009360780 | Radial-shaft sealing ring | |
| 54 | 009252060 | Sealing cap | |
| 62 | 009107190 | Supporting disc | |
| 64 | 009109930 | Shim ring | |
| 66 | 009109450 | Shim ring | |
| 66 | 009109460 | Shim ring | |
| 66 | 009109430 | Shim ring | |
| 69 | 009108490 | Shim ring | |
| 69 | 009108511 | Shim ring | |
| 69 | 009108500 | Shim ring | |
| 69 | 009108480 | Shim ring | |
| 87 | 009006120 | Hex head bolt | |
| 89 | 009031090 | Allen screw | |
| 90 | 009157050 | Cyl. pin | |
| 91 | 009060071 | Screw plug | |
| 92 | 009377210 | Gasket ring | |
| 93 | 009060050 | Screw plug | |
| 95 | 009377511 | Gasket ring | |
| 96 | 009198340 | Air bleed valve | |
| 97 | 009198410 | Breather | |
| 98 | 009240030 | Tube clip | |
| 99 | 009558060 | Roller gear-below |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
