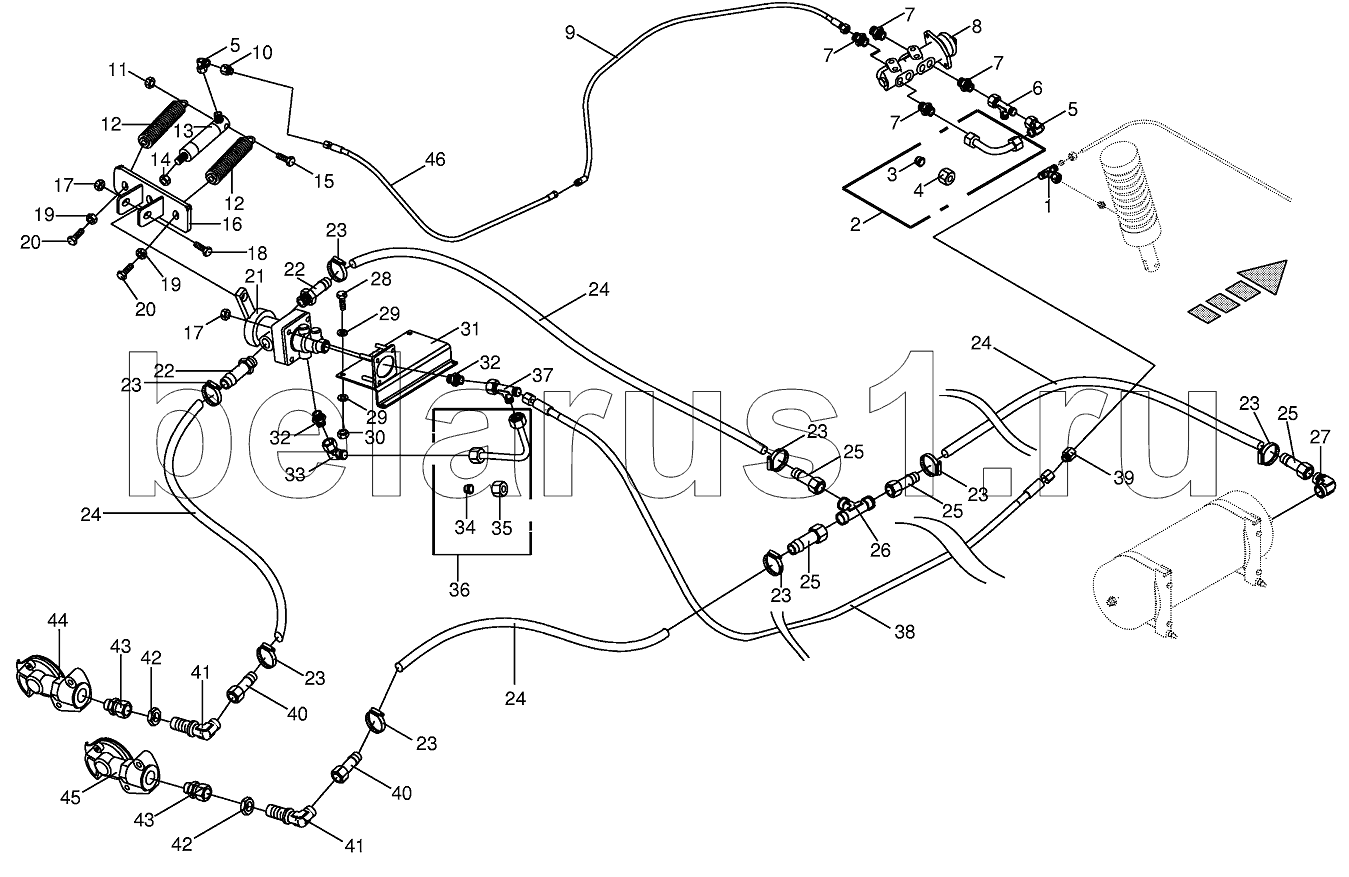

Каталог запасных частей к технике: KRONE BIG-X-650. Additive connection for trailer
1
2
3
4
5
5
6
7
7
7
7
8
9
10
11
12
12
13
13
14
15
16
17
17
18
19
19
20
20
21
22
22
23
23
23
23
23
23
23
23
24
24
24
24
25
25
25
25
26
27
28
29
29
30
31
32
32
33
34
35
36
37
38
39
40
40
41
41
42
42
43
43
44
45
46
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 009199680 | T connector | |
| 2 | 002286820 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 3 | 009210461 | Cutting ring | |
| 4 | 009212060 | Nozzle disc cap | |
| 5 | 009210671 | Angle lug | |
| 6 | 009210791 | Adjustable L connection | |
| 7 | 009210602 | Male connector | |
| 8 | 009455600 | Brake valve | |
| 9 | 009210270 | High pressure hose line | |
| 10 | 009210831 | Reducer fitting | |
| 11 | 009087010 | Locknut | |
| 12 | 002733752 | Tension spring | |
| 13 | 002832311 | Hydraulic cylinder | |
| 13 | 009187341 | Sealing set | |
| 14 | 009080022 | Hex nut | |
| 15 | 009014590 | Hex head bolt | |
| 16 | 002191450 | Fork | |
| 17 | 009087060 | Locknut | |
| 18 | 009010421 | Hex head bolt | |
| 19 | 009082120 | Hex nut | |
| 20 | 009002891 | Hex head bolt | |
| 21 | 009455610 | Control valve | |
| 22 | 009454850 | Hose connector | |
| 23 | 009240011 | Tube clip | |
| 24 | 009450850 | Hose-Id.-no.= 1m | |
| 25 | 009453490 | Hose connector | |
| 26 | 009210731 | T-connector | |
| 27 | 009455040 | Angle-male connector | |
| 28 | 009006070 | Hex head bolt | |
| 29 | 009104111 | Washer | |
| 30 | 009082080 | Hex nut | |
| 31 | 002286610 | Plate | |
| 32 | 009193380 | Male connector | |
| 33 | 009209170 | Elbow union | |
| 34 | 009209160 | Cutting ring | |
| 35 | 009209050 | Nozzle disc cap | |
| 36 | 002191410 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 37 | 009212740 | Adjustable L connection | |
| 38 | 009210170 | High pressure hose line | |
| 39 | 009193370 | Reducer fitting | |
| 40 | 009450900 | Hose connector | |
| 41 | 009210891 | Connector | |
| 42 | 009085242 | Hex nut-low form | |
| 43 | 009212040 | Male connector | |
| 44 | 009450780 | Clutch head-yellow | |
| 45 | 009450770 | Clutch head-red | |
| 46 | 009210252 | High pressure hose line |
