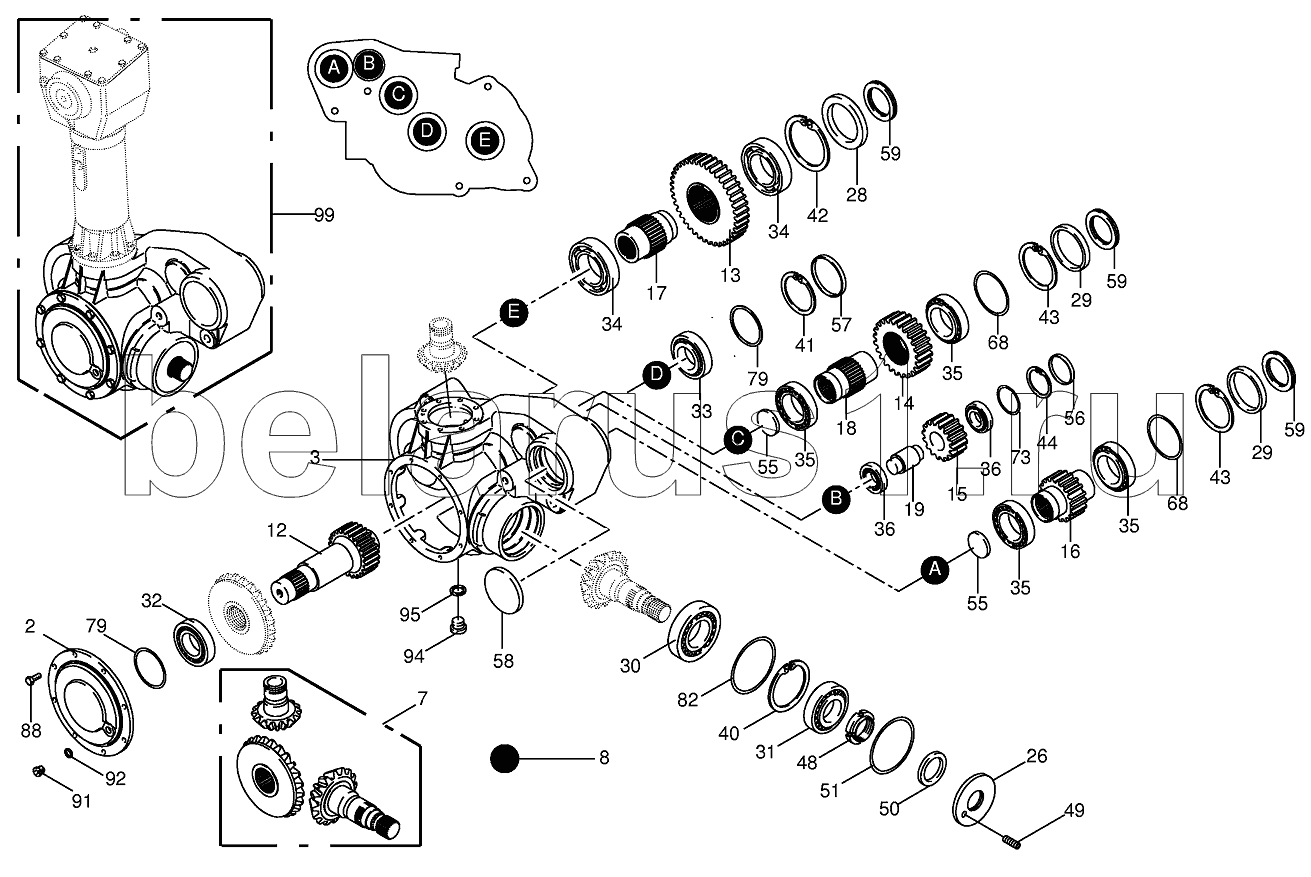

Каталог запасных частей к технике: KRONE BIG-X-650. Roller gearbox part 2
2
3
7
8
12
13
14
15
16
17
18
19
26
28
29
29
30
31
32
33
34
34
35
35
35
35
36
36
40
41
42
43
43
44
48
49
50
51
55
55
56
57
58
59
59
59
68
68
68
68
73
73
73
79
79
79
79
82
82
88
91
92
94
95
99
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 009557480 | Bearing housing | |
| 3 | 009557470 | Housing | |
| 7 | 009557510 | Bevel wheel set | |
| 8 | 009261010 | Oil-Id.-no.=1ltr | |
| 12 | 009557530 | Spur wheel shaft | |
| 13 | 009557550 | Spur gear | |
| 14 | 009557560 | Spur gear | |
| 15 | 009557570 | Spur gear | |
| 16 | 009558120 | Spur wheel shaft | |
| 17 | 009558130 | Hollow shaft | |
| 18 | 009558140 | Hollow shaft | |
| 19 | 009557610 | Shaft | |
| 26 | 009558150 | Gearbox cover | |
| 28 | 009557660 | Ring | |
| 29 | 009557670 | Ring | |
| 30 | 009321510 | Taper roller bearing | |
| 31 | 009321400 | Taper roller bearing | |
| 32 | 009321660 | Taper roller bearing | |
| 33 | 009321100 | Taper roller bearing | |
| 34 | 009301450 | Grooved ball bearing | |
| 35 | 009321810 | Taper roller bearing | |
| 36 | 009321060 | Taper roller bearing | |
| 40 | 009116940 | Circlip | |
| 41 | 009116100 | Circlip | |
| 42 | 009116960 | Circlip | |
| 43 | 009116910 | Circlip | |
| 44 | 009116680 | Circlip | |
| 48 | 009557680 | Slotted nut | |
| 49 | 009057111 | Threaded pin | |
| 50 | 009360800 | Radial-shaft sealing ring | |
| 51 | 009375770 | O-ring | |
| 55 | 009370330 | Nilos-ring | |
| 56 | 009555340 | Cap | |
| 57 | 009252081 | Sealing cap | |
| 58 | 009252160 | Sealing cap | |
| 59 | 009360790 | Radial-shaft sealing ring | |
| 68 | 009108480 | Shim ring | |
| 68 | 009108490 | Shim ring | |
| 68 | 009108511 | Shim ring | |
| 73 | 009111600 | Shim ring | |
| 73 | 009111620 | Shim ring | |
| 73 | 009111640 | Shim ring | |
| 79 | 009111660 | Shim ring | |
| 79 | 009111650 | Shim ring | |
| 79 | 009111680 | Shim ring | |
| 82 | 009109300 | Shim ring | |
| 82 | 009109320 | Shim ring | |
| 88 | 009006360 | Hex head bolt | |
| 91 | 009060071 | Screw plug | |
| 92 | 009377210 | Gasket ring | |
| 94 | 009060050 | Screw plug | |
| 95 | 009377511 | Gasket ring | |
| 99 | 009558060 | Roller gear-below |
