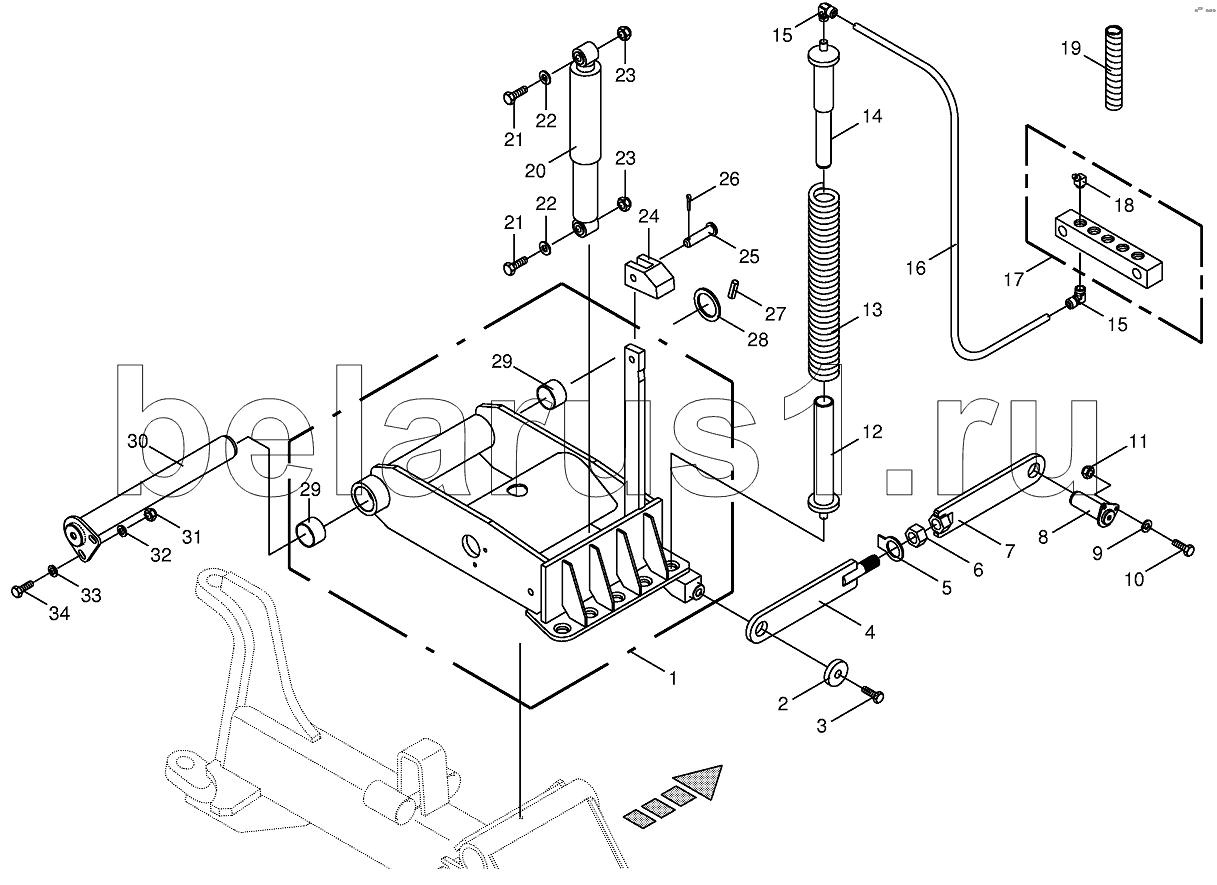

Каталог запасных частей к технике: KRONE BIG-X-650. Steering axle rocker arm
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
21
22
22
23
23
24
25
26
27
28
28
29
29
30
31
32
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 002165110 | Steered axle rocker | |
| 2 | 002218920 | Washer | |
| 3 | 009006770 | Hex head bolt | |
| 4 | 002172210 | Link rod piece-Rocker-sided | |
| 5 | 009103460 | Washer | |
| 6 | 009080391 | Hex nut | |
| 7 | 002172200 | Link rod piece-Frame-sided | |
| 8 | 002248042 | Poling bolt | |
| 9 | 009099081 | Detent edged washer | |
| 10 | 009002140 | Hex head bolt | |
| 11 | 009087060 | Locknut | |
| 12 | 002218714 | Spring guide-below | |
| 13 | 002218541 | Pressure spring | |
| 14 | 002218693 | Spring guide-middle top | |
| 15 | 270008950 | Hinged union | |
| 16 | 009389330 | Plastic tube filled with grease-Id.-no.= 1m | |
| 17 | 009193530 | Grease nipple carries out | |
| 18 | 009191060 | Grease niple | |
| 19 | 003012190 | Spiral strip-Id.-no.= 1m | |
| 20 | 002218720 | Shock absorber | |
| 21 | 009011371 | Hex head bolt | |
| 22 | 009103031 | Washer | |
| 23 | 009087161 | Locknut | |
| 24 | 002165120 | Limit stop | |
| 25 | 009160210 | Pin | |
| 26 | 009120671 | Cotter pin | |
| 27 | 009125520 | Roll pin | |
| 28 | 009110051 | Shim ring | |
| 28 | 009110040 | Shim ring | |
| 29 | 009353310 | Bearing bush | |
| 30 | 002218393 | Retention bolt | |
| 31 | 009087010 | Locknut | |
| 32 | 009105061 | Washer | |
| 33 | 009103200 | Washer | |
| 34 | 009014510 | Hex head bolt |
