Каталог запасных частей к технике: KRONE BIG-X-650. Diesel fuel pipe
1
1
2
2
3
4
5
5
6
6
7
8
9
10
11
12
13
14
15
18
20
21
22
23
24
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

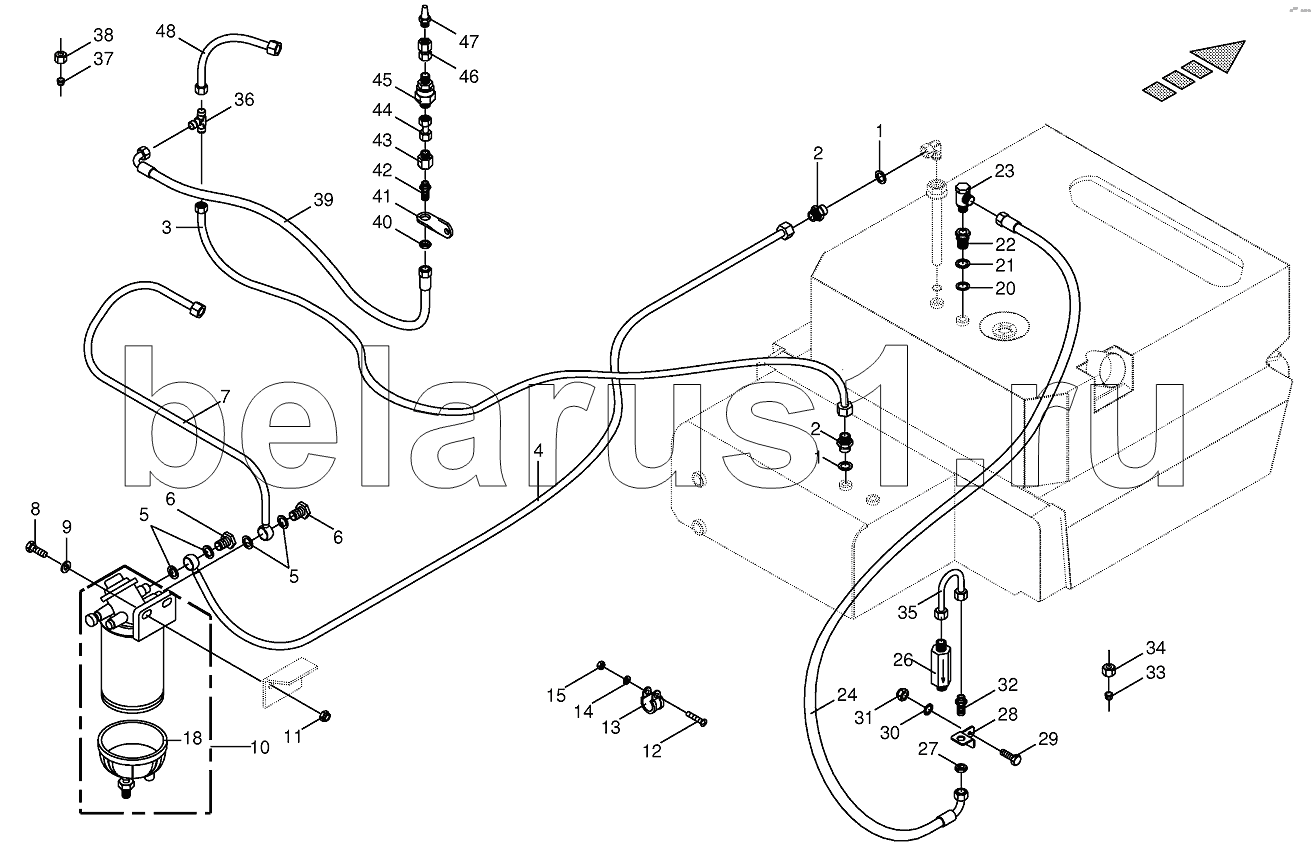

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 009405450 | 009405450 | Replacement filter | |
| 1 | 009377420 | Gasket ring | |
| 2 | 009197160 | Lug | |
| 3 | 200244200 | Fuel pipe | |
| 4 | 200229520 | Fuel pipe | |
| 5 | 009377220 | Gasket ring | |
| 6 | 009197170 | Hollow screw | |
| 7 | 002248601 | Fuel pipe | |
| 8 | 009006580 | Hex head bolt | |
| 9 | 009105061 | Washer | |
| 10 | 009405440 | Water separator | |
| 11 | 009082150 | Hex nut | |
| 12 | 009043451 | Countersunkscrew | |
| 13 | 009240100 | Tube clip w. rubber | |
| 14 | 009100310 | Spring washer | |
| 15 | 009082071 | Hex nut | |
| 18 | 009401270 | Inspection glass | |
| 19 | 009210670 | Adjustable L connection | |
| 20 | 009376340 | O-ring | |
| 21 | 009375250 | O-ring | |
| 22 | 200219150 | Connector | |
| 23 | 900001400 | Hinged union | |
| 24 | 270010270 | High pressure hose line | |
| 26 | 009191700 | High pressure filter | |
| 27 | 009210951 | Hex nut-low form | |
| 28 | 200219230 | Support | |
| 29 | 009006170 | Hex head bolt | |
| 30 | 009099081 | Detent edged washer | |
| 31 | 009087060 | Locknut | |
| 32 | 009212510 | Straight 2-way connector | |
| 33 | 009211831 | Cutting ring | |
| 34 | 009211820 | Nozzle disc cap | |
| 35 | 002191251 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 36 | 009210711 | T connector | |
| 37 | 009210461 | Cutting ring | |
| 38 | 009212060 | Nozzle disc cap | |
| 39 | 009212570 | High pressure hose line | |
| 40 | 009085242 | Hex nut-low form | |
| 41 | 200242020 | Support | |
| 42 | 009210871 | Straight 2-way connector | |
| 43 | 009199700 | Reducer fitting | |
| 44 | 270029290 | Double nipple | |
| 45 | 270026800 | Valve | |
| 46 | 270029370 | Connector | |
| 47 | 270026840 | Sound absorber | |
| 48 | 200244190 | Fuel pipe |
