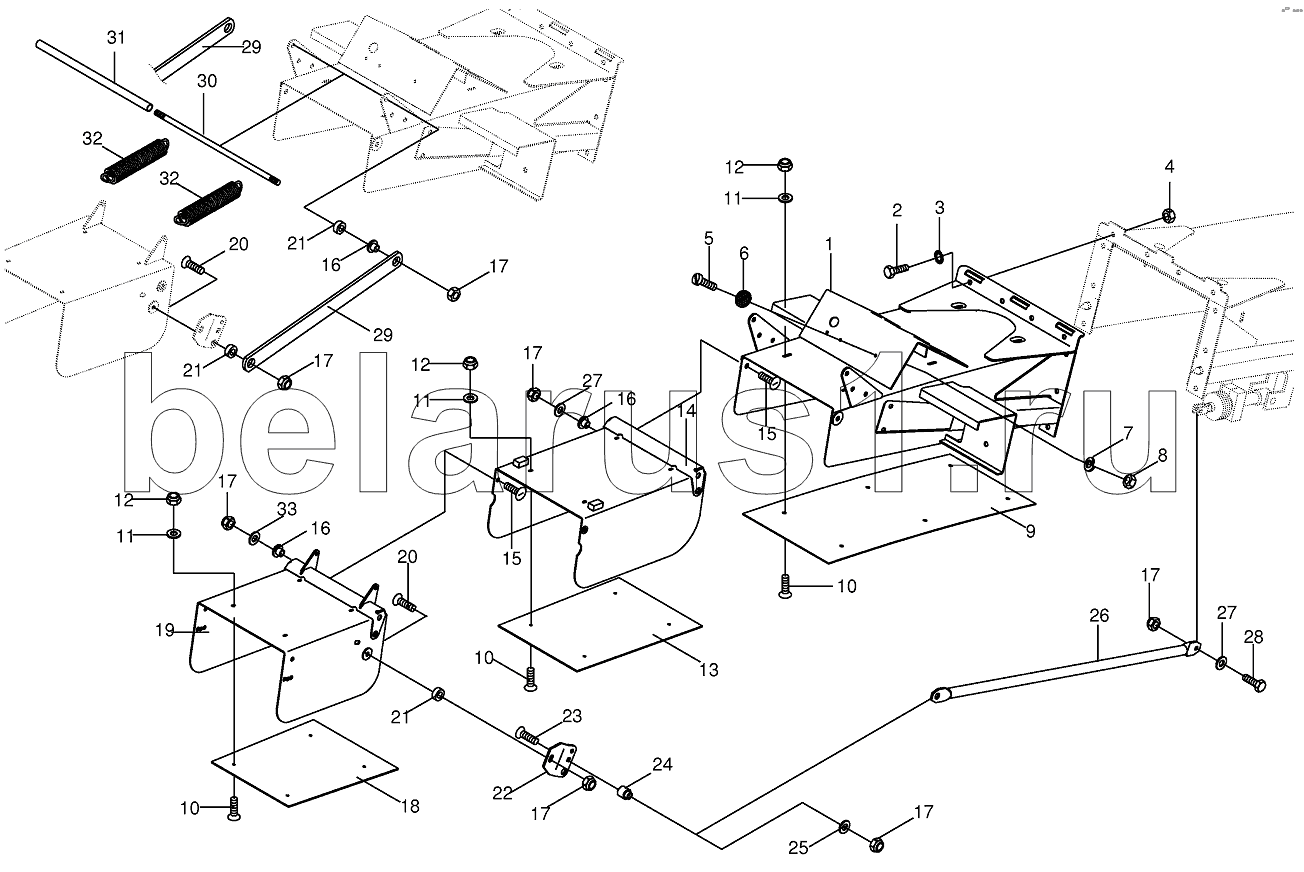

Каталог запасных частей к технике: KRONE BIG-X-650. Discharge flap-end piece
1
2
3
4
5
6
7
8
9
10
10
10
11
11
11
12
12
12
13
14
15
15
16
16
16
17
17
17
17
17
17
17
18
19
20
20
20
20
21
21
21
22
23
24
25
26
27
27
28
29
29
30
31
32
32
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 002260956 | Chute extension | |
| 2 | 009006360 | Hex head bolt | |
| 3 | 009099091 | Detent edged washer | |
| 4 | 009082120 | Hex nut | |
| 5 | 009037471 | Allen screw | |
| 6 | 009245351 | Rear reflector-red | |
| 7 | 009100310 | Spring washer | |
| 8 | 009082071 | Hex nut | |
| 9 | 002287510 | Wearing plate | |
| 10 | 009040051 | Countersunkscrew | |
| 11 | 009103511 | Washer | |
| 12 | 009087041 | Locknut | |
| 13 | 002158660 | Wearing plate | |
| 14 | 002158762 | Deflector-1 | |
| 15 | 009051542 | Coach bolt | |
| 16 | 002225642 | Bushing | |
| 17 | 009087580 | Locknut | |
| 18 | 002158770 | Wearing plate | |
| 19 | 002158321 | Deflector-2 | |
| 20 | 009052551 | Coach bolt | |
| 20 | 009051542 | Coach bolt | |
| 20 | 009047512 | Coach bolt | |
| 21 | 002288220 | Bushing | |
| 22 | 002225823 | Support | |
| 23 | 009047570 | Coach bolt | |
| 24 | 002164920 | Bushing | |
| 25 | 009103611 | Washer | |
| 26 | 002260915 | Flap strut | |
| 27 | 009104140 | Washer | |
| 28 | 009006380 | Hex head bolt | |
| 29 | 002225804 | Strut | |
| 30 | 002288210 | Threaded rod | |
| 31 | 002260922 | Spacer tube | |
| 32 | 002806040 | Tension spring | |
| 33 | 009103031 | Washer |
