Каталог запасных частей к технике: KRONE BIG-X-700. Auger-gearbox
1
2
3
4
5
6
7
7
7
7
7
8
8
9
10
11
12
13
14
15
16
17
17
17
17
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
35
36
37
38
38
38
38
38
39
40
41
42
43
44
45
46
47

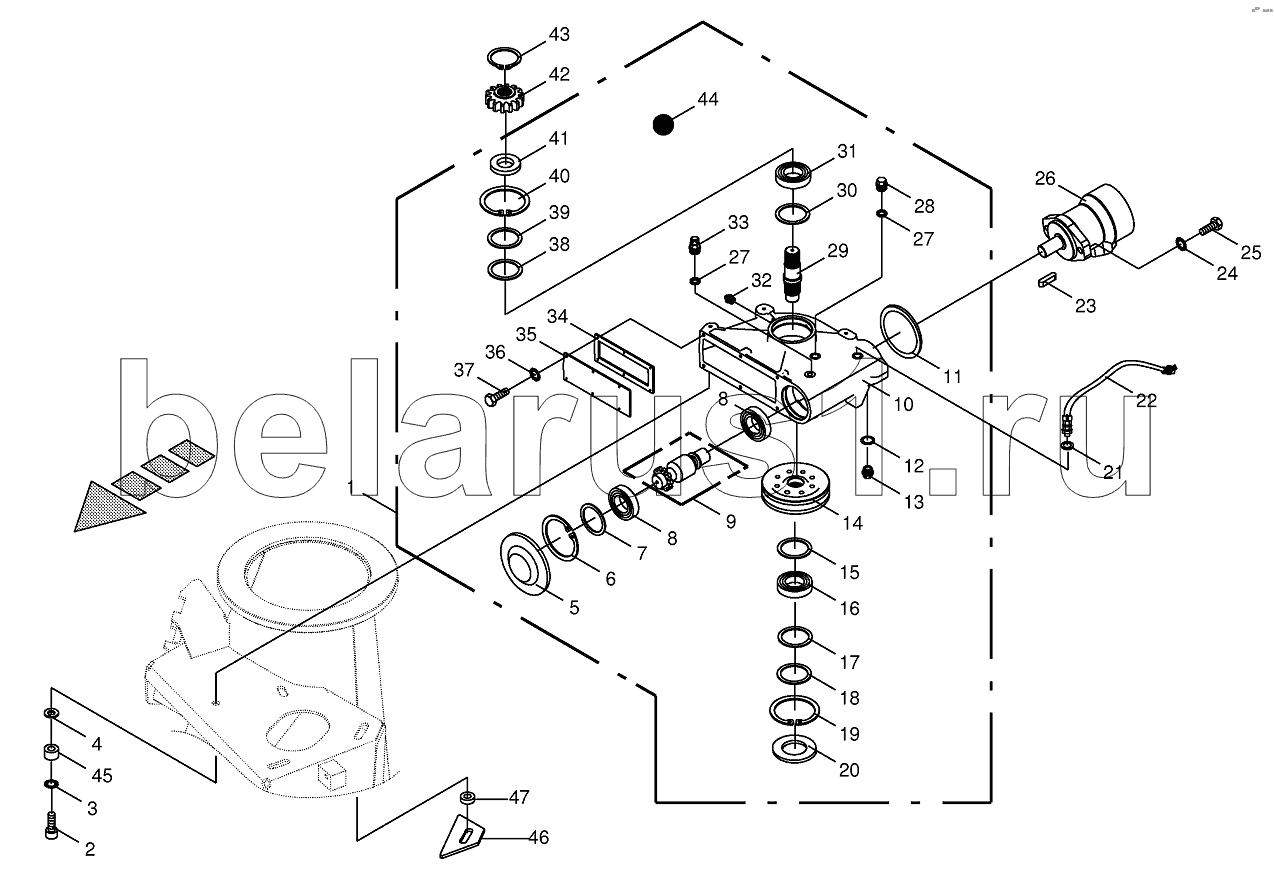

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 009403170 | 009403170 | Sealing set | |
| 1 | 002158520 | Auger-gearbox | |
| 2 | 009032140 | Allen screw | |
| 3 | 009099041 | Detent edged washer | |
| 4 | 009103270 | Washer | |
| 5 | 009252002 | Sealing cap | |
| 6 | 009116800 | Circlip | |
| 7 | 009109450 | Shim ring | |
| 7 | 009109460 | Shim ring | |
| 7 | 009109470 | Shim ring | |
| 8 | 009321650 | Taper roller bearing | |
| 9 | 002158470 | Auger with bucket wheel | |
| 10 | 002158513 | Housing | |
| 11 | 009375140 | O-ring | |
| 12 | 009377161 | Gasket ring | |
| 13 | 009060170 | Screw plug | |
| 14 | 002158501 | Worm gearwheel | |
| 15 | 009107321 | Supporting disc | |
| 16 | 009321630 | Taper roller bearing | |
| 17 | 009110241 | Shim ring | |
| 17 | 009108760 | Shim ring | |
| 17 | 009110230 | Shim ring | |
| 18 | 009107411 | Supporting disc | |
| 19 | 009116730 | Circlip | |
| 20 | 009252052 | Sealing cap | |
| 21 | 009377161 | Gasket ring | |
| 22 | 003024480 | Sensor | |
| 23 | 009150721 | Fit-in key | |
| 24 | 009099110 | Detent edged washer | |
| 25 | 009031391 | Allen screw | |
| 26 | 009212790 | Hydraulic motor | |
| 27 | 009377270 | Gasket ring | |
| 28 | 009060101 | Screw plug | |
| 29 | 002158380 | Outlet shaft | |
| 30 | 009371850 | Nilos-ring | |
| 31 | 009321660 | Taper roller bearing | |
| 32 | 009191050 | Grease niple | |
| 33 | 009198111 | Breather | |
| 34 | 002158440 | Housing gasket | |
| 35 | 002158450 | Gearbox cover | |
| 36 | 009099081 | Detent edged washer | |
| 37 | 009006140 | Hex head bolt | |
| 38 | 009111680 | Shim ring | |
| 38 | 009111660 | Shim ring | |
| 38 | 009111650 | Shim ring | |
| 39 | 009107460 | Supporting disc | |
| 40 | 009116860 | Circlip | |
| 41 | 009364081 | Radial-shaft sealing ring | |
| 42 | 002158371 | Pinion | |
| 43 | 009115530 | Circlip | |
| 44 | 009261010 | Oil-Id.-no.=1ltr | |
| 45 | 002713881 | Spacer bushing | |
| 46 | 200244090 | Stiffener | |
| 47 | 003372393 | Guide tube |
