Каталог запасных частей к технике: KRONE BIG-X-700. Hydraulics cpl.-discharge chute
1
1
3
4
5
5
6
6
7
8
9
9
10
11
11
11
11
12
13
14
14
14
14
14
14
15
15
15
15
15
15
15
15
16
16
16
16
17
17
17
17
18
19
20
22
22
23
24
25
26
27
28
29
30
31
31
31
32
32
33
34
35
36
37
38
39
40
41
41
41
41
41
41
41
41
42
42
43
43

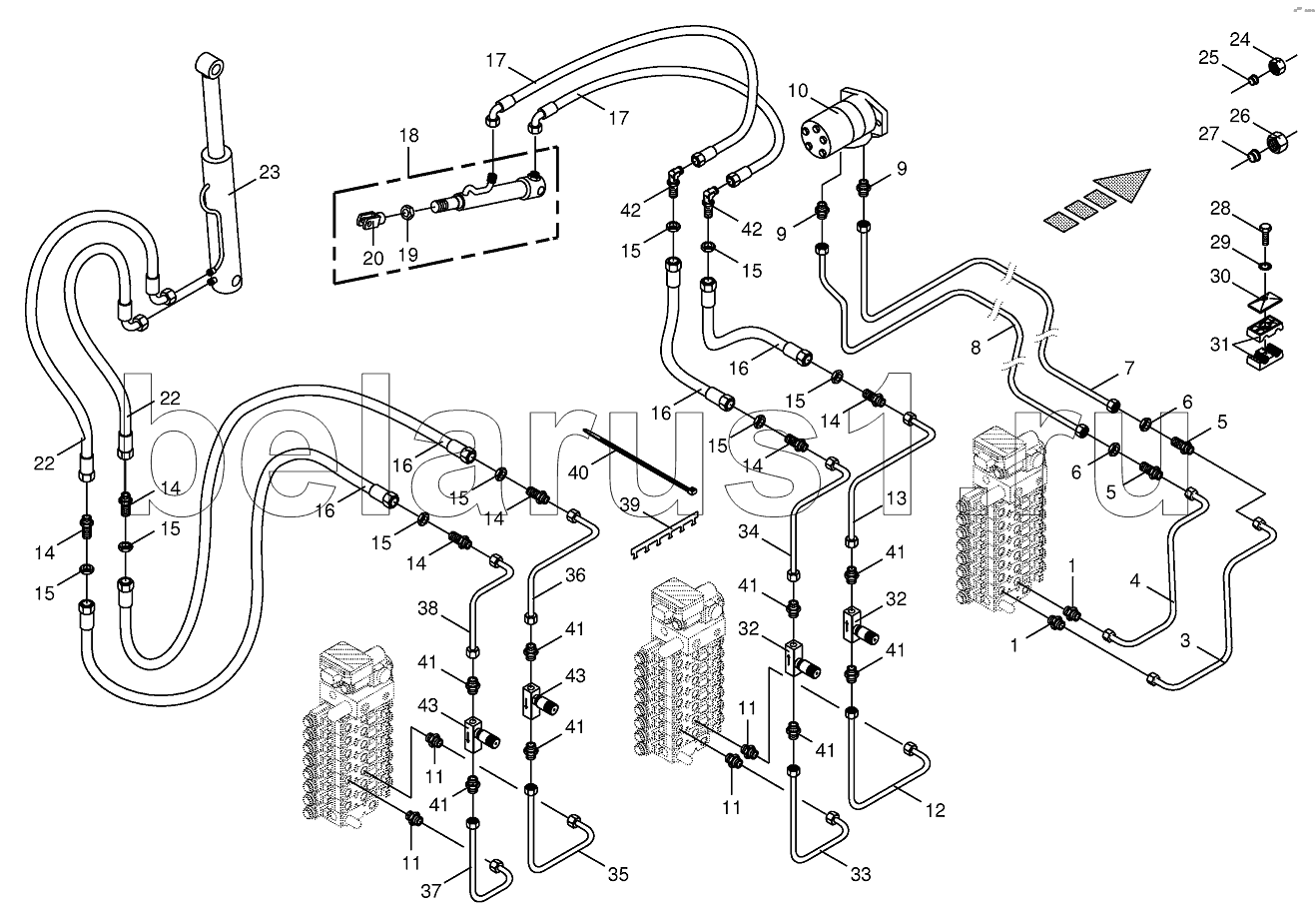

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 270034120 | 270034120 | Sealing set | |
| 009187850 | 009187850 | Sealing set | |
| 009199920 | 009199920 | Restrictor valve | |
| 009188240 | 009188240 | Sealing set | |
| 009185430 | 009185430 | Hydraulic cylinder | |
| 009403170 | 009403170 | Sealing set | |
| 1 | 009209011 | Male connector | |
| 3 | 200217630 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 4 | 200217640 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 5 | 009210871 | Straight 2-way connector | |
| 6 | 009085242 | Hex nut-low form | |
| 7 | 200213770 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 8 | 200213760 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 9 | 009196021 | Male connector | |
| 10 | 009212790 | Hydraulic motor | |
| 11 | 900000480 | Male connector | |
| 12 | 200217380 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 13 | 200217310 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 14 | 009199630 | Straight 2-way connector | |
| 15 | 009085060 | Hex nut-low form | |
| 16 | 009200820 | High pressure hose line | |
| 17 | 009201010 | High pressure hose line | |
| 17 | 009200800 | High pressure hose line | |
| 18 | 002225623 | Hydraulic cylinder | |
| 19 | 009085000 | Hex nut-low form | |
| 20 | 009271070 | Clevis | |
| 22 | 009200810 | High pressure hose line | |
| 23 | 270030130 | Hydraulic cylinder | |
| 24 | 009199620 | Nozzle disc cap | |
| 25 | 009199610 | Cutting ring | |
| 26 | 009212060 | Nozzle disc cap | |
| 27 | 009210461 | Cutting ring | |
| 28 | 009010421 | Hex head bolt | |
| 29 | 009099081 | Detent edged washer | |
| 30 | 009251340 | Cover plate | |
| 31 | 009251050 | Tube clamp-2 halves | |
| 31 | 009251080 | Tube clamp-2 halves | |
| 32 | 009193040 | One-way restrictor-adjustable | |
| 33 | 200217390 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 34 | 200217350 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 35 | 200217400 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 36 | 200217340 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 37 | 200217410 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 38 | 200217370 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 39 | 200217910 | Junction panel | |
| 40 | 009226711 | Cable band | |
| 41 | 009199640 | Male connector | |
| 42 | 009199660 | Connector | |
| 43 | 009193040 | One-way restrictor-adjustable |
