Каталог запасных частей к технике: KRONE BIG-X-800. Chopping drum bearing/counter bearing
1
1
2
2
2
2
3
3
4
5
5
6
6
7
7
8
8
8
9
10
10
11
11
12
12
13
13
14
14
15
15
16
17
18
18
19
19
20
21
22
23
23
24
24
25
26
27
27
28
28
29
30
31
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

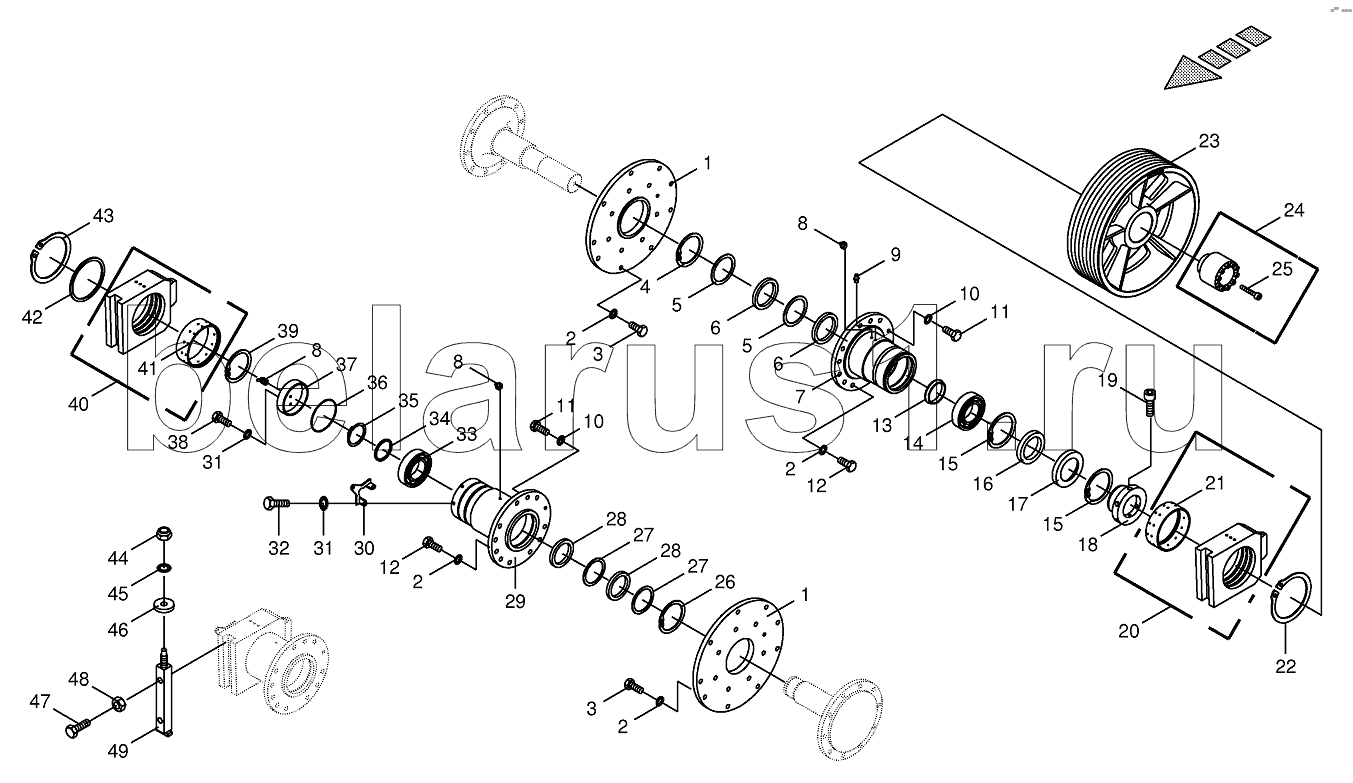

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 002154810 | Threaded ring | |
| 2 | 009099121 | Detent edged washer | |
| 3 | 009006750 | Hex head bolt | |
| 4 | 009116960 | Circlip | |
| 5 | 002142860 | Intermediate ring | |
| 6 | 009360500 | Radial-shaft sealing ring | |
| 7 | 002142920 | Bearing housing-left | |
| 7 | 200232850 | Bearing housing-left | |
| 8 | 009191060 | Grease niple | |
| 9 | 009191050 | Grease niple | |
| 10 | 009099101 | Detent edged washer | |
| 11 | 009003021 | Hex head bolt | |
| 12 | 009011321 | Hex head bolt | |
| 13 | 002142930 | Thrust ring | |
| 13 | 200232840 | Thrust ring | |
| 14 | 009319220 | Pendular roller bearing | |
| 14 | 009319160 | Pendular roller bearing | |
| 15 | 009116090 | Circlip | |
| 16 | 900001060 | Radial-shaft sealing ring | |
| 17 | 200218840 | Gasket ring guard | |
| 18 | 002142940 | Sliding ring | |
| 18 | 200232830 | Sliding ring | |
| 19 | 009030751 | Allen screw | |
| 19 | 009030731 | Allen screw | |
| 20 | 002142840 | Frame bearing-left | |
| 21 | 200210470 | Bearing bush-left | |
| 22 | 900000650 | Circlip | |
| 23 | 002145560 | V-belt pulley | |
| 23 | 002268252 | V-belt pulley | |
| 24 | 009400931 | Cone-type tensioner-69 Nm | |
| 24 | 009404960 | Cone-type tensioner-69 Nm | |
| 25 | 900001350 | Allen screw | |
| 26 | 009116910 | Circlip | |
| 27 | 002241282 | Intermediate washer | |
| 28 | 009360610 | Radial-shaft sealing ring | |
| 29 | 002154830 | Bearing housing | |
| 30 | 002142160 | Strap | |
| 31 | 009099081 | Detent edged washer | |
| 32 | 009006140 | Hex head bolt | |
| 33 | 009319200 | Pendular roller bearing | |
| 34 | 002240301 | Supporting disc | |
| 35 | 009115700 | Circlip | |
| 36 | 009375340 | O-ring | |
| 37 | 002240282 | Cover | |
| 38 | 009006100 | Hex head bolt | |
| 39 | 009116960 | Circlip | |
| 40 | 002142140 | Frame bearing-right | |
| 41 | 200203750 | Bearing bush | |
| 42 | 002241340 | Supporting disc | |
| 43 | 009115330 | Circlip | |
| 44 | 009087210 | Locknut | |
| 45 | 009099131 | Detent edged washer | |
| 46 | 002143310 | End plate | |
| 47 | 009003821 | Hex head bolt | |
| 48 | 009082250 | Hex nut | |
| 49 | 002143270 | Counter bearing |
