Каталог запасных частей к технике: KRONE BIG-X-800. Several wiring looms
1
2
2
2
3
3
4
5
6
7
8
9
10
10
11
12
13
13
13
13
14
14
15
16
17
18
19
20
21
22
22
23
23
24
25
26
27
27
28
29
30
31
32
33
34
35
36
36

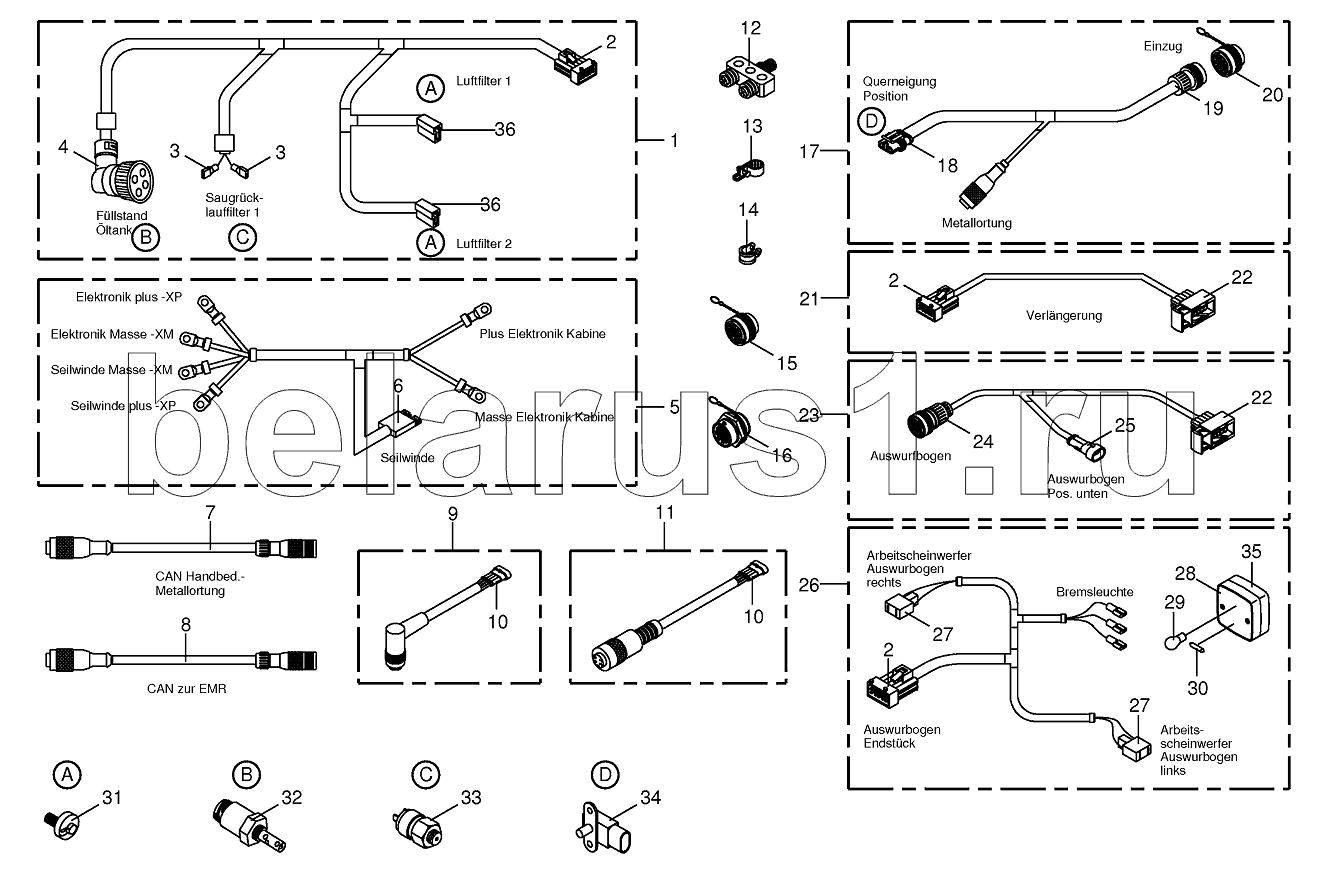

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 200801340 | Wiring harness-oil tank | |
| 2 | 003030840 | Plug-10-pole | |
| 3 | 003026880 | Flat sleeve-red | |
| 4 | 003031160 | AMP-circular plug-4-pole | |
| 5 | 200800381 | Wiring harness-rope winch / electronics cab | |
| 6 | 003036740 | Plug | |
| 7 | 200800300 | Cable-Metal positioning | |
| 8 | 200800310 | Cable-EMR | |
| 9 | 003031721 | Adapter wire-4-pole | |
| 10 | 003023540 | Coupling socket-4-pole | |
| 11 | 003032271 | Adapter wire-4-pole | |
| 12 | 200805450 | Y-Distributor-5-pole | |
| 13 | 009240680 | Screwless corrugatend tube | |
| 13 | 009240690 | Screwless corrugatend tube | |
| 13 | 009240700 | Screwless corrugatend tube | |
| 13 | 009240710 | Screwless corrugatend tube | |
| 14 | 009240610 | Tube clip w. rubber | |
| 14 | 009240620 | Tube clip w. rubber | |
| 15 | 003034130 | Blind-plug | |
| 16 | 003033480 | Blind-plug | |
| 17 | 200800032 | Wiring harness-feed system | |
| 18 | 003023520 | Plug-3-pole | |
| 19 | 200801710 | Plug-14-pole | |
| 20 | 003034140 | Blind-plug | |
| 21 | 003031862 | Wiring harness-chute extension | |
| 22 | 003030730 | Bushing housing-10-pole | |
| 23 | 200801060 | Wiring harness-short | |
| 23 | 200800450 | Wiring harness-long | |
| 24 | 003024310 | Plug-31-pole | |
| 25 | 003023560 | Coupling socket-2-pole | |
| 26 | 003031713 | Wiring harness-discharge chute | |
| 27 | 003031200 | Plug-2-pole | |
| 28 | 003029210 | Concluding stop-light | |
| 29 | 009246930 | Singel filament buld | |
| 30 | 009247090 | Singel filament buld | |
| 31 | 002210710 | Grooming switch | |
| 32 | 003025100 | Levelling switch | |
| 33 | 002297100 | Pressure switch | |
| 34 | 003031460 | Hall sensor | |
| 35 | 200807600 | Pane | |
| 36 | 003050590 | Plug-2-pole |
