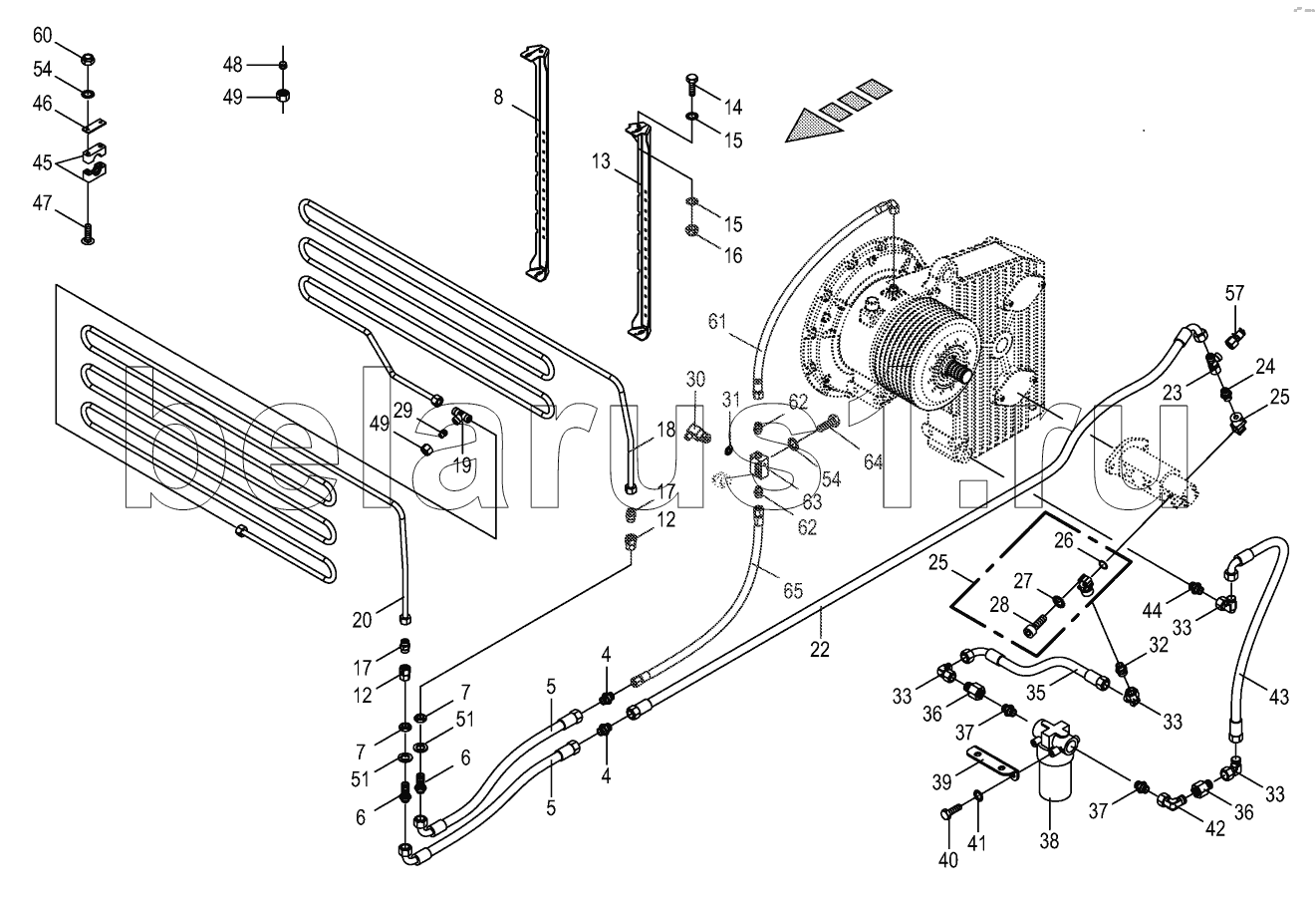

Каталог запасных частей к технике: KRONE BIG-X-850-1. Gear oil cooler
9192450
900004000
4
4
5
5
6
6
7
7
8
12
12
13
14
15
15
16
17
17
18
19
20
22
23
24
25
25
26
27
28
28
29
30
31
32
33
33
33
33
35
36
36
37
37
38
39
40
41
42
43
44
45
46
47
48
49
49
51
51
54
54
57
60
61
62
62
63
64
65
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9192450 | 9192450 | Filter element | |
| 900004000 | 900004000 | O-ring | |
| 4 | 9210531 | Connector | |
| 5 | 9200780 | High pressure hose line | |
| 6 | 9212500 | Straight 2-way connector | |
| 7 | 9210741 | Hex nut-low form | |
| 8 | 202213440 | Clamp support rh. 3 x971x183 | |
| 10 | 9099081 | Detent edged washer | |
| 11 | 9087060 | Locknut | |
| 12 | 900022470 | Red-Verschr. Doppelmutter S/L16/15 | |
| 13 | 202213450 | Clamp support lh. 3 x894x158 | |
| 14 | 9006360 | Hex head bolt | |
| 15 | 9099091 | Detent edged washer | |
| 16 | 9087580 | Locknut | |
| 17 | 900022480 | Verbindungsstutzen S 16 A3G | |
| 18 | 202213400 | Tube back | |
| 19 | 900022640 | T-Verbindungsstutzen S 16 A3G | |
| 20 | 202213350 | Tube front | |
| 22 | 270026710 | High pressure hose line | |
| 23 | 9210750 | Adjustable L connection | |
| 24 | 9210622 | Male connector | |
| 25 | 270002320 | Gear pump flange | |
| 26 | 9375130 | O-ring | |
| 27 | 9099061 | Detent edged washer | |
| 28 | 9030502 | Allen screw | |
| 28 | 9030480 | Allen screw | |
| 29 | 900022650 | Verschlusskegel mit O-Ring S 16A3G | |
| 30 | 200802000 | Pressure switch | |
| 31 | 9377171 | Gasket ring | |
| 32 | 9211792 | Male connector | |
| 33 | 9211730 | Angle lug | |
| 35 | 270024470 | High pressure hose line | |
| 36 | 9196590 | Reducer fitting | |
| 37 | 9199570 | Male connector | |
| 38 | 9192440 | Suction filter | |
| 39 | 200271040 | Filter carrier | |
| 40 | 9006530 | Hex head bolt | |
| 41 | 9099101 | Detent edged washer | |
| 42 | 9208220 | Angle lug | |
| 43 | 9200960 | High pressure hose line | |
| 44 | 9197620 | Male connector | |
| 45 | 9251630 | Tube clamp-2 halves | |
| 46 | 9251450 | Cover plate | |
| 47 | 900022540 | Flachrundschr.4kt M6x85 A3G | |
| 48 | 9208020 | Nozzle disc cap | |
| 49 | 9208020 | Nozzle disc cap | |
| 51 | 9103690 | Washer | |
| 54 | 9099061 | Detent edged washer | |
| 57 | 9208690 | Connector f.mini-test equipm. | |
| 60 | 9087041 | Locknut | |
| 61 | 270142470 | Hyd. hose | |
| 62 | 9197611 | Male connector | |
| 63 | 270143500 | Hyd. block gearbox oil cooling | |
| 64 | 9010040 | Hex head bolt | |
| 65 | 9200840 | High pressure hose line |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
