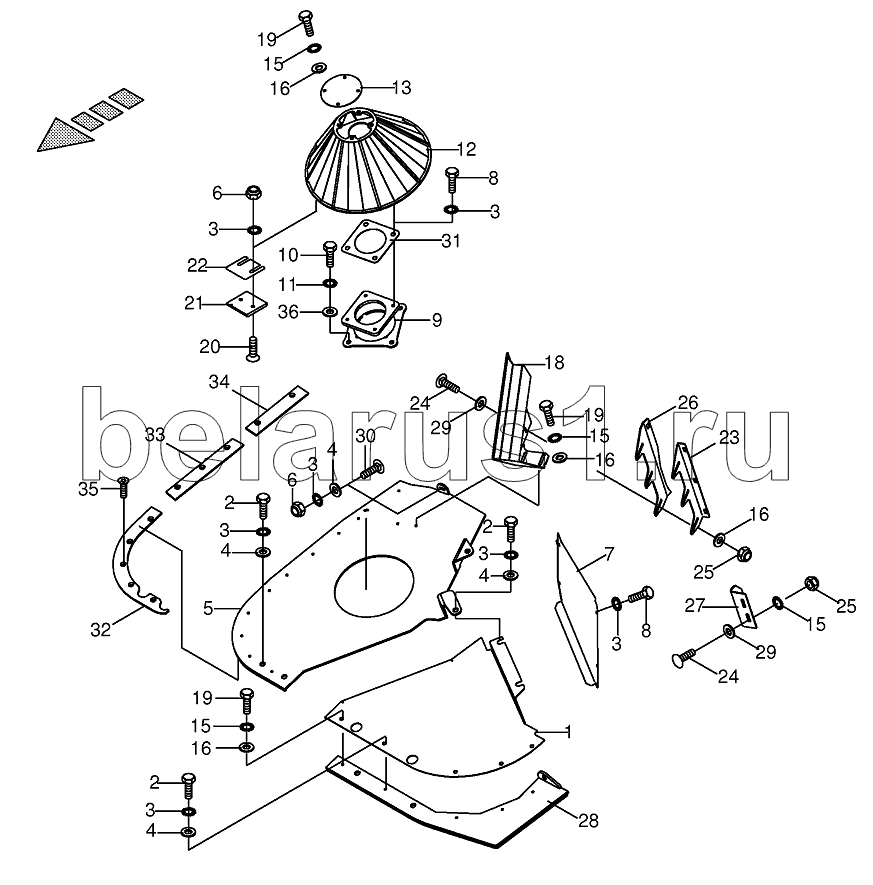

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 200908412 | Protective cover-left middle | |
| 1 | 200908522 | Protective cover-left middle | |
| 1 | 200908402 | Protective cover-right middle | |
| 1 | 200908532 | Protective cover-right middle | |
| 2 | 009006360 | Hex head bolt | |
| 3 | 009099091 | Detent edged washer | |
| 4 | 900001210 | Washer | |
| 4 | 009103530 | Washer | |
| 5 | 200907583 | Protective cover-left | |
| 5 | 200907623 | Protective cover-left | |
| 5 | 200907593 | Protective cover-right | |
| 5 | 200907633 | Protective cover-right | |
| 6 | 009087580 | Locknut | |
| 7 | 200908540 | Guard plate-back right | |
| 7 | 200908490 | Guard plate-back right | |
| 7 | 200908550 | Guard plate-back left | |
| 7 | 200908480 | Guard plate-back left | |
| 8 | 009006340 | Hex head bolt | |
| 9 | 200907792 | Spacer | |
| 10 | 009002750 | Hex head bolt | |
| 11 | 009099101 | Detent edged washer | |
| 12 | 200907711 | Rotating tower | |
| 13 | 200907680 | Cover | |
| 15 | 009099081 | Detent edged washer | |
| 16 | 009106030 | Washer | |
| 18 | 200908451 | Position adapter-right | |
| 18 | 200908461 | Position adapter-left | |
| 19 | 009006120 | Hex head bolt | |
| 20 | 009040453 | Countersunkscrew | |
| 21 | 002815401 | Friction disc | |
| 22 | 002836760 | Filler plate | |
| 23 | 200916392 | Fastening-left | |
| 23 | 200916382 | Fastening-right | |
| 24 | 009047312 | Coach bolt | |
| 25 | 009087060 | Locknut | |
| 26 | 200916321 | Wear-angle-left | |
| 26 | 200916311 | Wear-angle-right | |
| 27 | 200916371 | Wear-angle-below | |
| 28 | 200919982 | Scraper plate-right | |
| 28 | 200919772 | Scraper plate-right | |
| 28 | 200919992 | Scraper plate-left | |
| 28 | 200919792 | Scraper plate-left | |
| 29 | 009105061 | Washer | |
| 30 | 009048501 | Coach bolt | |
| 31 | 200923700 | Spacer plate | |
| 32 | 200938490 | Wearing plate-right front | |
| 32 | 200938500 | Wearing plate-left front | |
| 33 | 200938480 | Wearing plate-middle | |
| 34 | 200938470 | Wearing plate-back | |
| 35 | 900018450 | Countersunkscrew | |
| 36 | 009103780 | Washer |
