Каталог запасных частей к технике: KRONE ECollect753, 903, 1053. Hydraulics - tube bow 820001 -
1
1
2
2
2
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
5
5
5
5
6
6
6
7
7
7
8
8
9
10
10
10
11
14
15
16
17
18
19
20
20
20
21
22
22
23
23
25
27
28
29
30
31
32
33
34
35
35
35
35
36
37
38
38
38
38
38
38
38
39
39
39
39
39
39
39
40

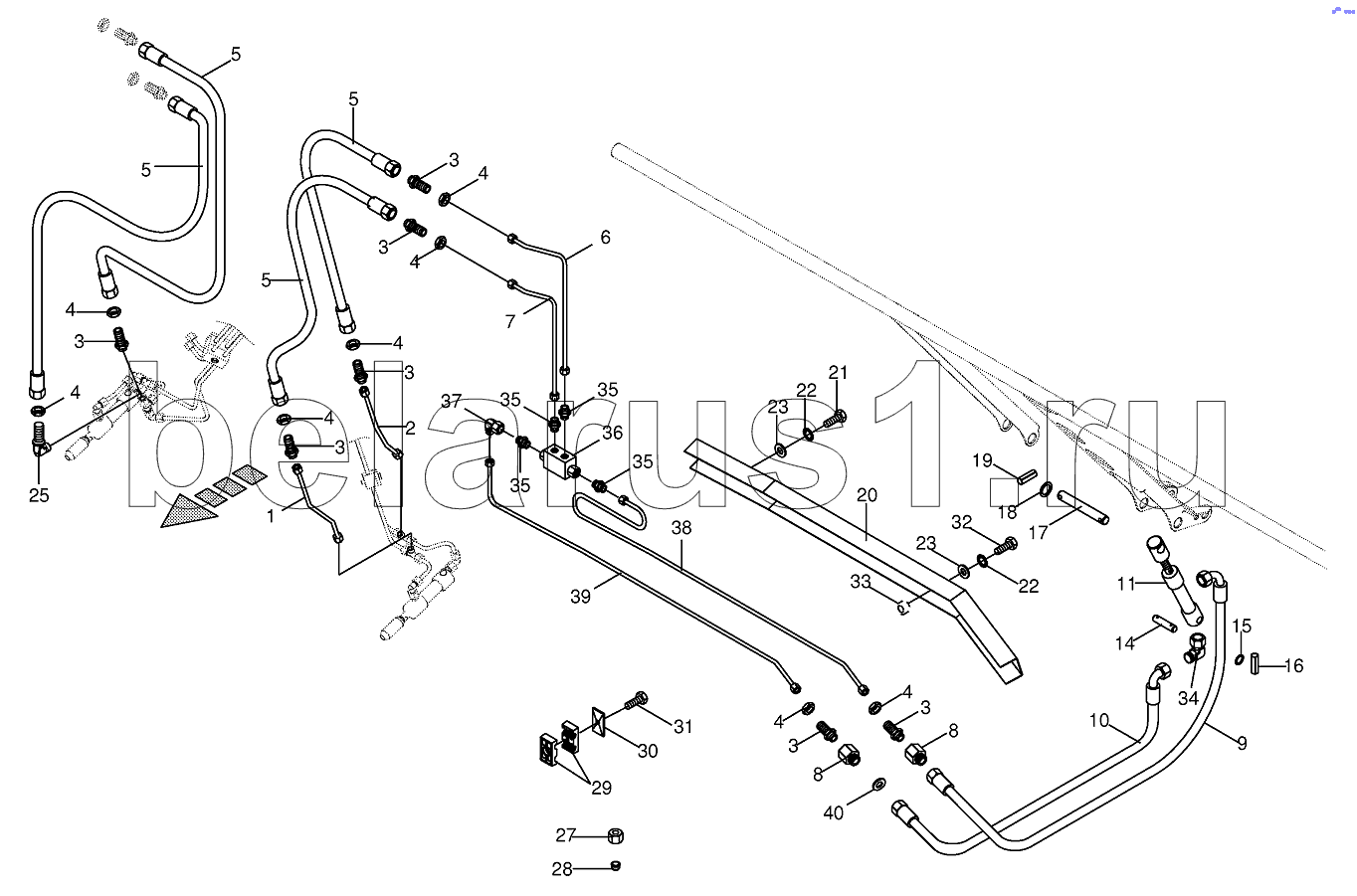

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 009199560 | 009199560 | Sealing set | |
| 1 | 200910572 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 1 | 200950850 | Hydr. Ligne 8x1,5x314 2 Arc | |
| 2 | 200910582 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 2 | 200950860 | Hydr. Ligne 8x1,5x311 2 Arc | |
| 3 | 009199630 | Straight 2-way connector | |
| 4 | 009085060 | Hex nut-low form | |
| 5 | 270006560 | High pressure hose line | |
| 6 | 200910801 | Hydraulic line-incl. nozzle disc cap, cutting ring-right | |
| 6 | 200910831 | Hydraulic line-incl. nozzle disc cap, cutting ring-left | |
| 7 | 200910841 | Hydraulic line-incl. nozzle disc cap, cutting ring-left | |
| 7 | 200910791 | Hydraulic line-incl. nozzle disc cap, cutting ring-right | |
| 8 | 009193370 | Reducer fitting | |
| 9 | 270070780 | High pressure hose line | |
| 10 | 009200720 | High pressure hose line | |
| 10 | 270099680 | High pressure hose line | |
| 11 | 270003850 | Hydraulic cylinder | |
| 14 | 002226443 | Pin | |
| 15 | 009105102 | Washer | |
| 16 | 009125861 | Roll pin | |
| 17 | 200909300 | Pin | |
| 18 | 009105122 | Washer | |
| 19 | 009126732 | Roll pin | |
| 20 | 200910060 | Protective box | |
| 20 | 200910050 | Protective box | |
| 21 | 009006120 | Hex head bolt | |
| 22 | 009099081 | Detent edged washer | |
| 23 | 009106030 | Washer | |
| 25 | 009199660 | Connector | |
| 27 | 009199620 | Nozzle disc cap | |
| 28 | 009199610 | Cutting ring | |
| 29 | 009251590 | Tube clamp-2 halves | |
| 30 | 009251340 | Cover plate | |
| 31 | 009014220 | Hex head bolt | |
| 32 | 009002010 | Hex head bolt | |
| 33 | 002732891 | Bushing | |
| 34 | 009212250 | Angle lug | |
| 35 | 009199640 | Male connector | |
| 36 | 009208900 | Double lock-up valve unit | |
| 37 | 009199650 | Angle lug | |
| 38 | 200922560 | Hydraulic line-incl. nozzle disc cap, cutting ring-right | |
| 38 | 200922570 | Hydraulic line-incl. nozzle disc cap, cutting ring-right | |
| 38 | 200922590 | Hydraulic line-incl. nozzle disc cap, cutting ring-left | |
| 38 | 200922610 | Hydraulic line-incl. nozzle disc cap, cutting ring-left | |
| 39 | 200922620 | Hydraulic line-incl. nozzle disc cap, cutting ring-left | |
| 39 | 200922600 | Hydraulic line-incl. nozzle disc cap, cutting ring-left | |
| 39 | 200922580 | Hydraulic line-incl. nozzle disc cap, cutting ring-right | |
| 39 | 200922550 | Hydraulic line-incl. nozzle disc cap, cutting ring-right | |
| 40 | 009192321 | Throttling disc |
