Каталог запасных частей к технике: KRONE ECollect753, 903, 1053. Hydraulics-control block 871000 -
3
3
3
3
3
4
4
5
6
7
8
9
10
10
10
11
11
11
11
11
12
12
12
12
12
13
13
13
14
16
17
18
18
19
20
20
21
22
23
24
24
24
24
25
26
27
28
29
30
31
31
32
32
33
33
33
33
34
34
34
34
35
35
35
35
36
36
37
37
38
39
40
41
44
45
46
47
48
49
50
51
52
53
54
55
56
57

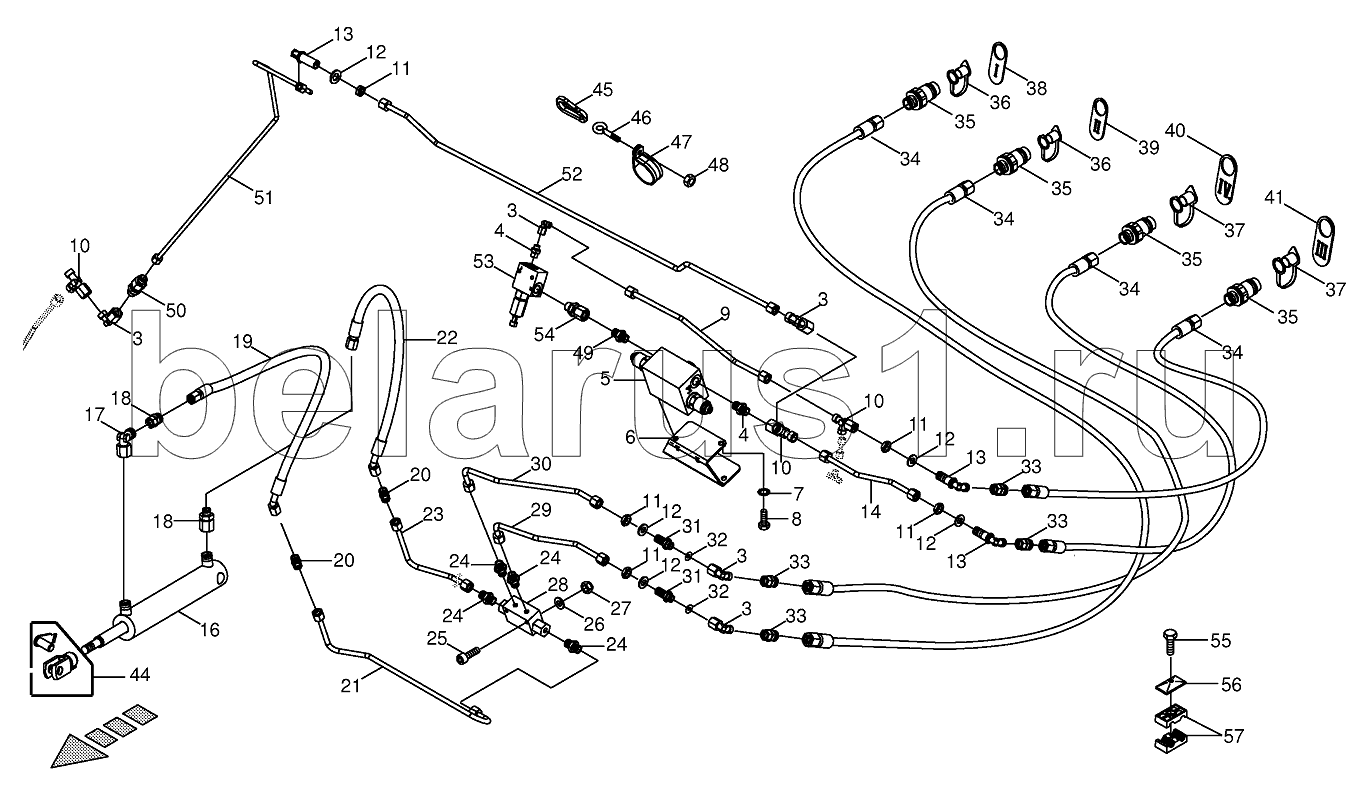

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 3 | 009199650 | Angle lug | |
| 4 | 900014700 | Male connector | |
| 5 | 270103330 | Hyd. block folding in/folding out | |
| 6 | 200950640 | Support | |
| 7 | 009099081 | Detent edged washer | |
| 8 | 009006120 | Hex head bolt | |
| 9 | 200950760 | Hydr. Ligne 8x1,5x428 3 Arc | |
| 10 | 009199670 | Adjustable L connection | |
| 11 | 009085060 | Hex nut-low form | |
| 12 | 009105102 | Washer | |
| 13 | 009199660 | Connector | |
| 14 | 200950770 | Hydr. Ligne 8x1,5x214 2 Arc | |
| 16 | 270003840 | Hydraulic cylinder | |
| 17 | 009210671 | Angle lug | |
| 18 | 009199700 | Reducer fitting | |
| 19 | 270010060 | High pressure hose line | |
| 20 | 009193020 | Connector | |
| 21 | 200950730 | Hydr. Ligne 8x1,5x519 4 Arc | |
| 22 | 270024510 | High pressure hose line | |
| 23 | 200950720 | Hydr. Ligne 8x1,5x286 2 Arc | |
| 24 | 009199640 | Male connector | |
| 25 | 009030301 | Allen screw | |
| 26 | 009105001 | Washer | |
| 27 | 009087020 | Locknut | |
| 28 | 009208900 | Double lock-up valve unit | |
| 29 | 200950700 | Hydr. Ligne 8x1,5x300 3 Arc | |
| 30 | 200950710 | Hydr. Ligne 8x1,5x344 3 Arc | |
| 31 | 009199630 | Straight 2-way connector | |
| 32 | 270109970 | Throttling disc | |
| 33 | 900018010 | Reducer fitting | |
| 34 | 009209690 | High pressure hose line | |
| 35 | 009193220 | Connector plug | |
| 36 | 009212631 | Dust cap-blue | |
| 37 | 009211711 | Dust cap-red | |
| 38 | 003601620 | Plate-1 | |
| 39 | 003601630 | Plate-2 | |
| 40 | 003601640 | Plate-3 | |
| 41 | 003601670 | Plate-4 | |
| 44 | 009271151 | Clevis 1 clip ass. | |
| 45 | 009178021 | Spring hook | |
| 46 | 002804002 | Eyebolt | |
| 47 | 009240550 | Tube clip w. rubber | |
| 48 | 009082100 | Hex nut | |
| 49 | 900020790 | Male connector L 8 / M14x1,5 E A3G | |
| 50 | 900023300 | Non-return valve 1 bar row L 8 | |
| 51 | 200966160 | Hyd.-Leitung 8x1,5x1010 4 | |
| 52 | 200966150 | Hyd.-Leitung 8x1,5x1067 4 | |
| 53 | 270117300 | Sequence valve | |
| 54 | 009196750 | Male connector | |
| 55 | 009010081 | Hex head bolt | |
| 56 | 009251340 | Cover plate | |
| 57 | 009251590 | Tube clamp-2 halves |
