Каталог запасных частей к технике: KRONE ECollect753, 903, 1053. Mounting parts - lateral 820001 -
1
1
1
2
2
2
3
4
4
5
6
7
7
7
7
7
7
7
8
9
10
10
10
11
11
11
11
13
13
13
13
13
13
14
14
14
15
15
15
16
16
16
16
16
16
17
17
18
18
18
18
18
18
18
18
18
19
19
20
20
20
20
20
20
21
21
21
21
21
21
24
24
24
24
24
25
26
27
27
27
29
30
30
31
32
33
33
34
34
34
35
36
36
37
37
38
39
39
39
40
41
42
43
44
45
46
47
47
47
48
48
49
50
51
52
52
53
53
53
53
54
54
55
55
56
57
58

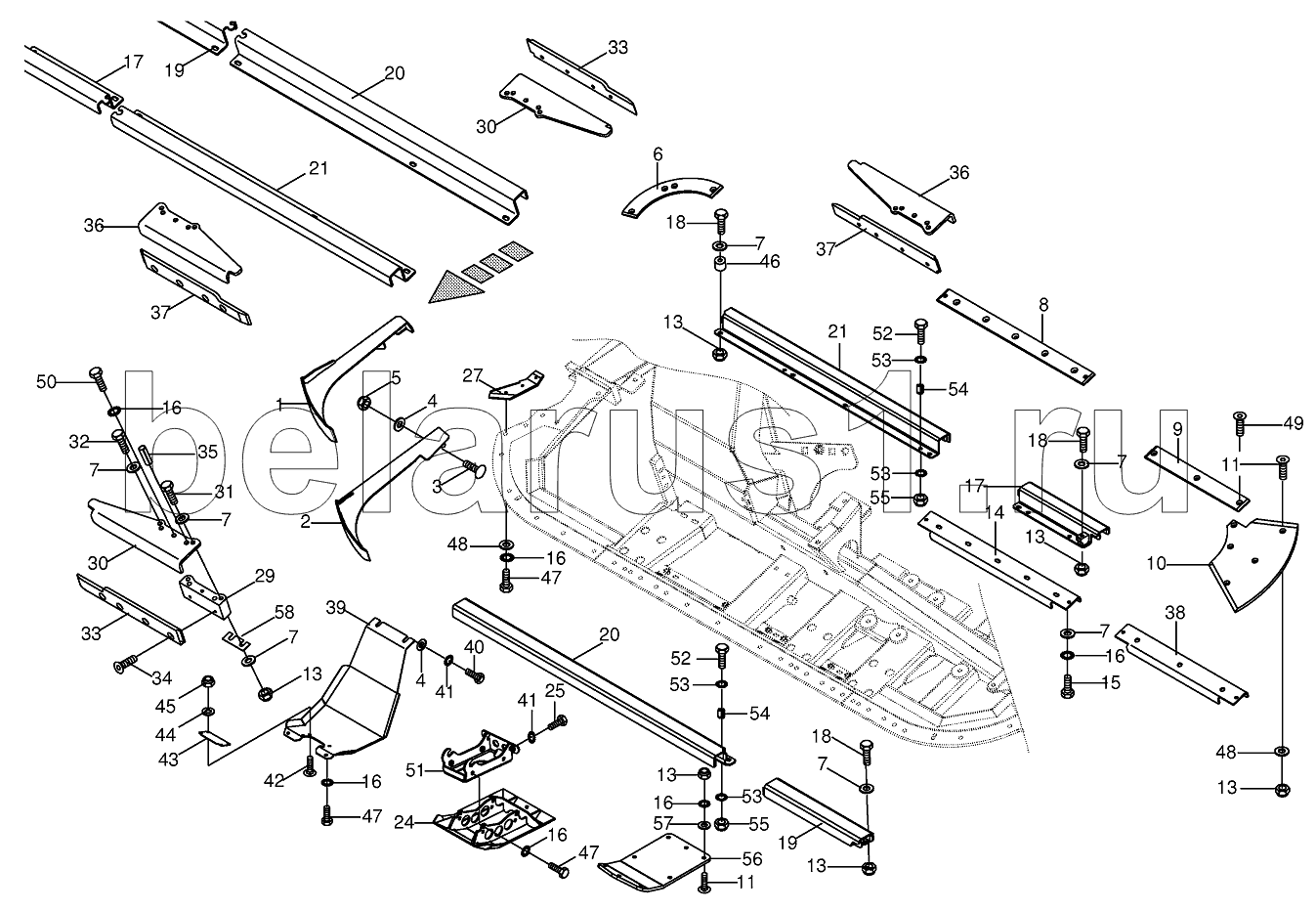

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 200906763 | Collector scraper-left | |
| 1 | 200906603 | Collector scraper-right | |
| 2 | 200906753 | Cutter scraper-left | |
| 2 | 200906733 | Cutter scraper-right | |
| 3 | 009048842 | Coach bolt | |
| 4 | 009106090 | Washer | |
| 5 | 009087010 | Locknut | |
| 6 | 200908391 | Plastic bow | |
| 7 | 900001210 | Washer | |
| 8 | 200908513 | Rubber strip-outside | |
| 9 | 200908573 | Rubber strip-outside | |
| 10 | 200908601 | Plastic bow-left | |
| 10 | 200908591 | Plastic bow-right | |
| 11 | 009040490 | Countersunkscrew | |
| 11 | 900003520 | Countersunkscrew | |
| 13 | 900012300 | Locknut | |
| 14 | 200908631 | Screw-on strip | |
| 14 | 200930601 | Screw-on strip | |
| 15 | 009008150 | Hex head bolt | |
| 15 | 009002722 | Hex head bolt | |
| 16 | 009099091 | Detent edged washer | |
| 17 | 200933591 | Guide rail-front right/back left, outside | |
| 18 | 009002930 | Hex head bolt | |
| 18 | 900002760 | Hex head bolt | |
| 18 | 900015200 | Hex head bolt | |
| 18 | 009016223 | Hex head bolt | |
| 19 | 200933581 | Guide rail-back right/front left, outside | |
| 20 | 200938450 | Guide rail-back right/front left, inside | |
| 20 | 200938260 | Guide rail-back right/front left, inside | |
| 20 | 200938240 | Guide rail-back right/front left, inside | |
| 21 | 200938220 | Guide rail-front right/back left, inside | |
| 21 | 200938250 | Guide rail-front right/back left, inside | |
| 21 | 200938460 | Guide rail-front right/back left, inside | |
| 24 | 200934640 | Ground skid | |
| 24 | 200934640 | Ground skid | |
| 24 | 200940310 | Ground skid | |
| 25 | 009006560 | Hex head bolt | |
| 26 | 009105061 | Washer | |
| 27 | 200915722 | Guide disc-lateral left | |
| 27 | 200915712 | Guide disc-lateral right | |
| 29 | 200915431 | Position adapter | |
| 30 | 200915403 | Position adapter angle-back right/front left, inside | |
| 31 | 009011582 | Hex head bolt | |
| 32 | 009014470 | Hex head bolt | |
| 33 | 200952261 | Guide bracket rail RR/FL | |
| 34 | 900020910 | Countersunkscrew | |
| 34 | 900020900 | Countersunkscrew | |
| 35 | 009127442 | Roll pin | |
| 36 | 200915393 | Position adapter angle-back left/front right | |
| 37 | 200952281 | Guide bracket rail FR/RL | |
| 38 | 200915731 | Screw-on strip | |
| 39 | 200928790 | Gearbox cover-left | |
| 39 | 200928760 | Gearbox cover-right | |
| 40 | 009006550 | Hex head bolt | |
| 41 | 009099101 | Detent edged washer | |
| 42 | 009047312 | Coach bolt | |
| 43 | 200928750 | Cover plate | |
| 44 | 009104130 | Washer | |
| 45 | 009087060 | Locknut | |
| 46 | 003523230 | Spacer tube | |
| 47 | 009008171 | Hex head bolt | |
| 48 | 009104140 | Washer | |
| 49 | 009040490 | Countersunkscrew | |
| 50 | 009006370 | Hex head bolt | |
| 51 | 200934690 | Ground skid | |
| 52 | 009010281 | Hex head bolt | |
| 53 | 009099061 | Detent edged washer | |
| 54 | 009125501 | Roll pin | |
| 55 | 009087041 | Locknut | |
| 56 | 200940271 | Wear skid-plastic | |
| 57 | 900001210 | Washer | |
| 58 | 200915750 | Intermediate housing |
