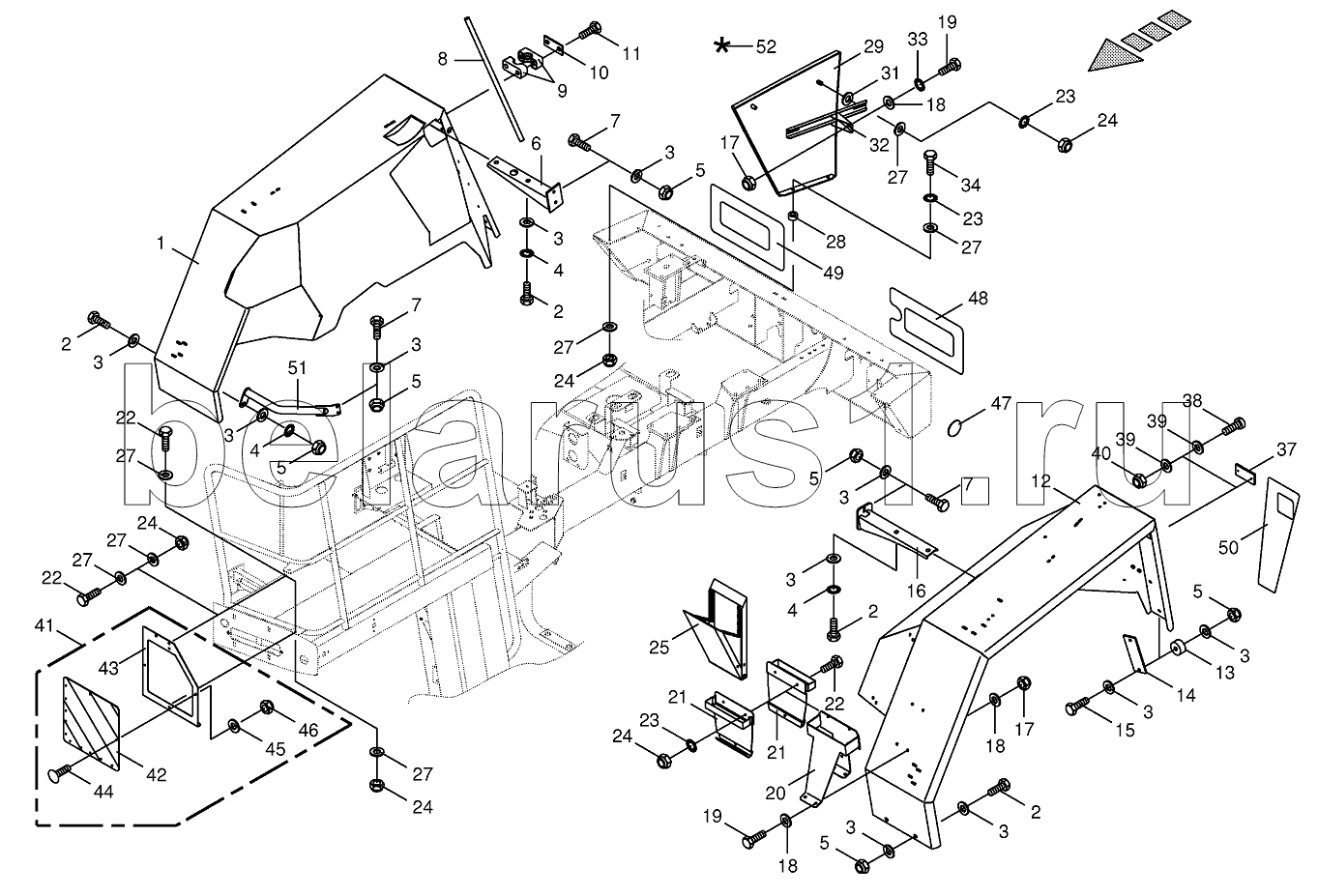

Каталог запасных частей к технике: KRONE BIG-X-650. Mudguard
1
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
4
4
4
5
5
5
5
5
5
6
7
7
7
8
9
10
11
12
13
14
15
16
17
17
18
18
18
19
19
20
21
21
22
22
22
23
23
23
24
24
24
24
24
25
27
27
27
27
27
27
27
28
28
28
28
28
29
29
29
31
32
33
34
37
38
39
39
40
41
41
41
42
43
43
43
44
45
46
47
48
49
50
50
50
51
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 009245690 | 009245690 | Decal | |
| 1 | 200213470 | Mudguard-right | |
| 2 | 009006570 | Hex head bolt | |
| 3 | 009103200 | Washer | |
| 4 | 009099101 | Detent edged washer | |
| 5 | 009087010 | Locknut | |
| 6 | 002258871 | Carrier-back | |
| 7 | 009006580 | Hex head bolt | |
| 8 | 002169090 | Guide tube-right | |
| 9 | 009251041 | Tube clamp-2 halves | |
| 10 | 009251300 | Cover plate | |
| 11 | 009014350 | Hex head bolt | |
| 12 | 200213370 | Mudguard-left | |
| 13 | 270040970 | Rubber pad | |
| 14 | 002258850 | Enclosure | |
| 15 | 009003021 | Hex head bolt | |
| 16 | 200213810 | Carrier-left | |
| 17 | 009087580 | Locknut | |
| 18 | 009104140 | Washer | |
| 19 | 009006360 | Hex head bolt | |
| 20 | 002167602 | Support | |
| 21 | 200215420 | Holder for block | |
| 22 | 009006140 | Hex head bolt | |
| 23 | 009099081 | Detent edged washer | |
| 24 | 009087060 | Locknut | |
| 25 | 270007770 | Drop-type sprag | |
| 27 | 009106030 | Washer | |
| 28 | 200267250 | Spacer | |
| 28 | 200267240 | Spacer | |
| 28 | 002255671 | Spacer | |
| 29 | 200231060 | Guard-back left | |
| 29 | 200231070 | Guard-back right | |
| 31 | 009103660 | Washer | |
| 32 | 002174640 | Support-back right | |
| 33 | 009099091 | Detent edged washer | |
| 34 | 009016131 | Hex head bolt | |
| 37 | 270000940 | Rear reflector-red | |
| 38 | 009034251 | Allen screw | |
| 39 | 009103250 | Washer | |
| 40 | 009080061 | Hex nut | |
| 41 | 002198910 | Warning panel-left front | |
| 41 | 002198920 | Warning panel-right front | |
| 42 | 009246850 | Warning panel | |
| 43 | 002198940 | Warning panel support-left | |
| 43 | 002198930 | Warning panel support-right | |
| 44 | 009050002 | Coach bolt | |
| 45 | 009103511 | Washer | |
| 46 | 009087041 | Locknut | |
| 47 | 009246340 | Side light-yellow-self- adhesive | |
| 48 | 200227280 | Warning foil-back left | |
| 49 | 200227270 | Warning foil-back right | |
| 50 | 200229680 | Warning foil-back left | |
| 50 | 200229690 | Warning foil-back right | |
| 51 | 200233770 | Wing holder | |
| 52 | 009403750 | Repairing set for plastics- beige |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
